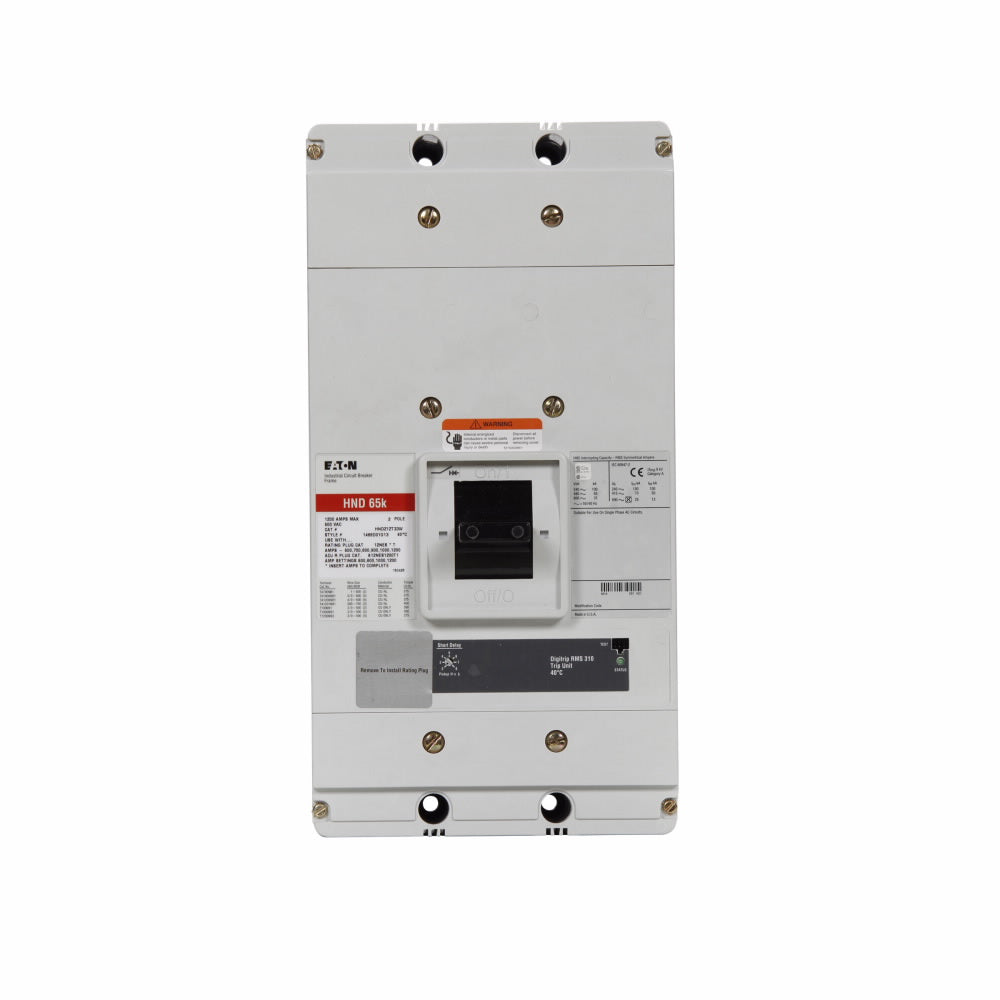

HND2800T32W - Eaton Series C Electronic Molded Case Circuit Breaker 800A 600V 2-Pole

HND2800T32W

HND2800T32W is an Eaton Series C electronic molded case circuit breaker designed for industrial power distribution and motor control applications.

This two-pole breaker features an NG-frame design with Digitrip 310 RMS electronic trip unit and Electronic LS (Long Short) trip type. Rated for 800 amperes at 600 Vac, it delivers reliable overcurrent protection with an interrupt rating of 100 kAIC at 240 Vac and 100 kAIC at 480 Vac. The breaker comes without terminals and operates at 50/60 Hz frequencies, meeting UL 489 and IEC 60947-2 standards for industrial and commercial installations.

• Amperage Rating: 800 A
• Voltage Rating: 600 Vac
• Number of Poles: Two-pole
• Circuit Breaker Type: HND
• Frame Type: NG-frame
• Trip Type: Electronic LS
• Trip Unit: Digitrip 310 RMS
• Interrupt Rating: 100 kAIC at 240 Vac, 100 kAIC at 480 Vac
• Frequency: 50/60 Hz
• Terminals: Without terminals
• Product Weight: 48 lb

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HND2800T32W
• Manufacturer : Eaton
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Series C
• Type : HND
• Voltage : 600
• Amperage : 800
• Phase : 1
• Poles : 2
• AIC rating : 65kA@480V
• Connection : Bolt-On
• Functions : LSI - Long-Time, Short-Time and Instantaneous
• Frame Size : N Frame
• Protection : Solid State

Product Data

• UPC : 786679252420
• GTIN : 00786679252420
• Dimensions : 16.5 in x 6 in x 9 in (Length/Depth x Height x Width)
• Weight : 26
