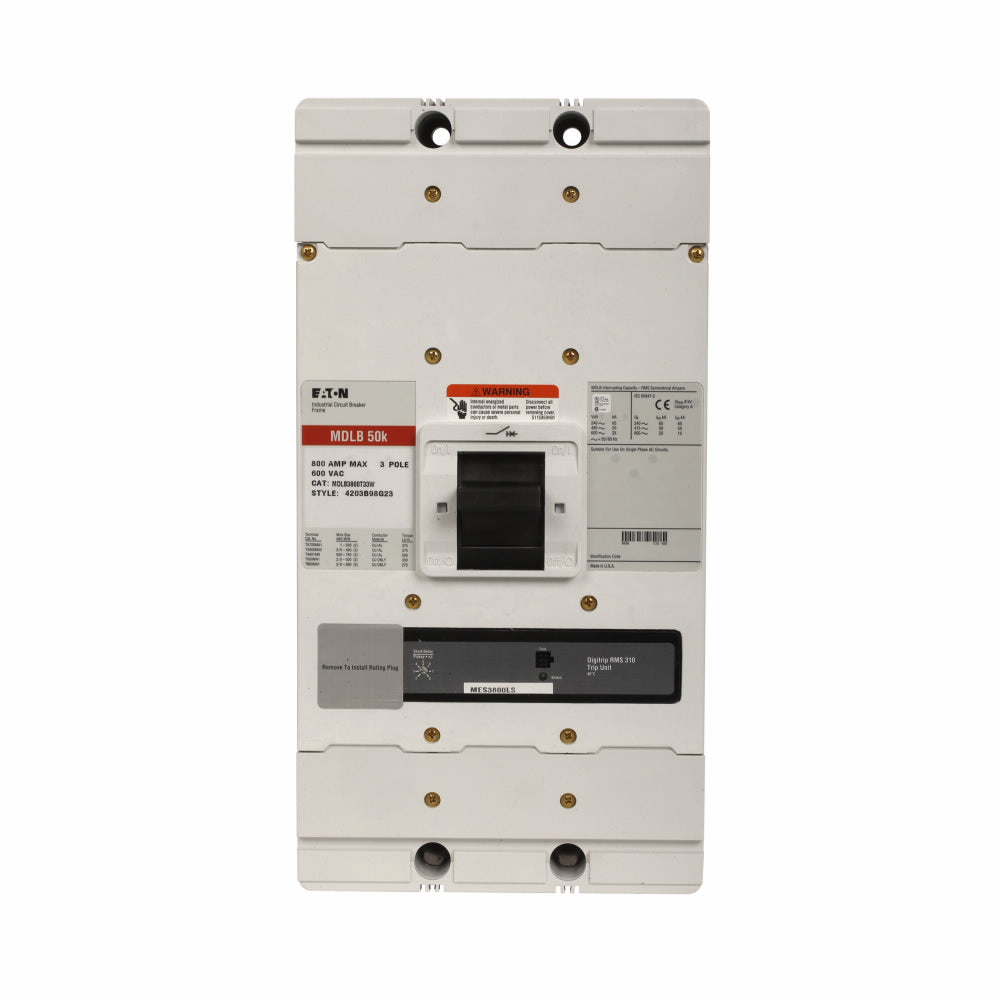

HMDLB3800T36W - Eaton Series C M-Frame Molded Case Circuit Breaker 3P 800A 65kAIC 480V

HMDLB3800T36W

HMDLB3800T36W is a Series C, M-frame molded case circuit breaker designed for reliable electrical protection in demanding applications. This three-pole, 800A breaker features a sealed design and is rated for 65kAIC at 480V, making it suitable for industrial and commercial power distribution systems. The unit is equipped with an LSIG electronic trip unit for enhanced protection and is 100% rated for continuous operation. Engineered for durability and safety, the HMDLB3800T36W is ideal for use in environments requiring high interrupt capacity and dependable performance. Its compact M-frame design allows for efficient panel space utilization, while the sealed construction ensures protection against environmental contaminants.

• Part Number: HMDLB3800T36W
• Manufacturer: Eaton
• Series/Frame: Series C, M-frame
• Amperage: 800A
• Poles: 3
• Voltage: 480V
• Interrupt Rating: 65kAIC at 480V
• Mounting Type: Fixed
• Terminal Type: Without terminals
• Rated: 100% continuous
• Trip Unit: LSIG electronic
• Certifications: UL, CSA

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HMDLB3800T36W
• Manufacturer : Eaton
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Voltage : 600
• Amperage : 800
• Phase : 3
• Poles : 3
• AIC rating : 65kA@480V
• Connection : Bolt-On
• Functions : LSIG - Long-Time Short-Time Instantaneous and Ground Fault
• Protection : Solid State

Product Data

• UPC : 78211435053
• GTIN : 00782114350539
• Dimensions : 4.06 in x 16 in x 8.25 in (Length/Depth x Height x Width)
• Weight : 29
