Product Info
- Manufacturer:Eaton
- Sub-Category:Molded Case
Description
HMDLB3800T33W

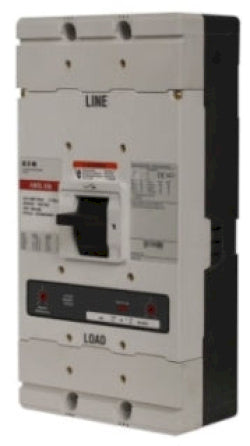

HMDLB3800T33W is a Series C M-Frame molded case circuit breaker manufactured by Eaton for high-capacity power distribution applications. Key Specifications
- Amperage: 800A
- Voltage: 600V AC
- Poles: 3-Pole
- Frame: M-Frame
- Interrupt Rating: 65 kAIC at 480V, 100 kAIC at 240V, 35 kAIC at 600V
- Trip Unit: Adjustable 5-10 Times Continuous Ampere Rating
- Mounting: Bolt-On
- Series: Series C
- Construction: Sealed Molded Case
- HACR Rated
- Suitable for Reverse Feed Use
Specifications
- Part Number: HMDLB3800T33W
- Manufacturer : Eaton
- Brand : Cutler Hammer
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Series C
- Type : HMDLB
- Voltage : 600
- Amperage : 800
- Phase : 3
- Poles : 3
- AIC rating : 65kA@480V
- Connection : Bolt-On
- Functions : LS - Long-Time and Short-Time
- Frame Size : M Frame
- Protection : Solid State
Product Data
- UPC : 782114350508
- GTIN : 00782114350508
- Dimensions : 3.44 in x 7 in x 4.13 in (Length/Depth x Height x Width)
- Weight : 12
