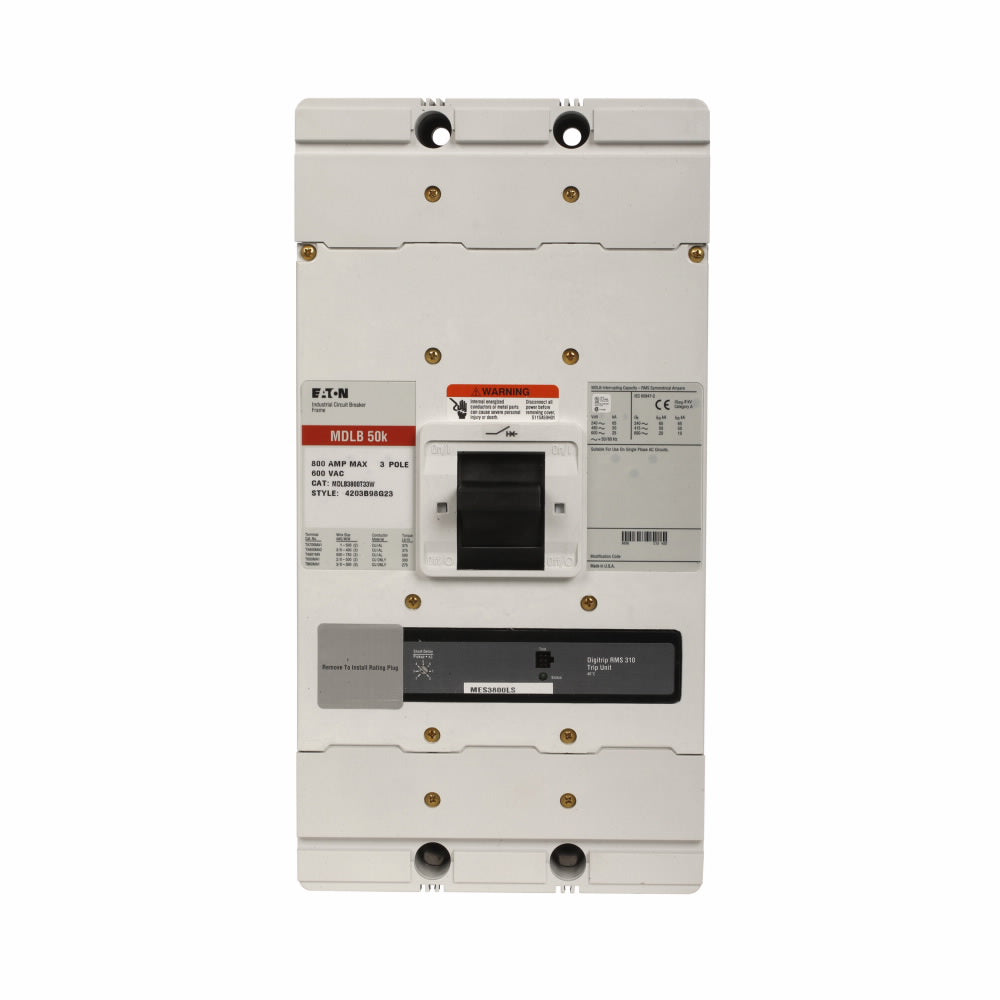

HMDLB3800T32W - Eaton Series C 800A 3-Pole 600V Molded Case Circuit Breaker

HMDLB3800T32W

HMDLB3800T32W is a Series C molded case circuit breaker from Eaton, designed for reliable protection in industrial and commercial power distribution systems. This three-pole breaker features an 800A continuous current rating and is rated for 600V AC applications. The HMDLB3800T32W is built with a fixed thermal and fixed magnetic trip unit, providing dependable overcurrent protection. It is suitable for use in standard and high interrupting capacity applications, with robust construction for long-term performance. The HMDLB3800T32W is part of the MDL-frame Series C family, known for its durability and compatibility with a wide range of electrical panels. This breaker is designed for fixed mounting and is ideal for applications requiring a compact, high-performance solution. It meets industry standards for safety and reliability, making it a trusted choice for critical power distribution needs.

• Part Number: HMDLB3800T32W
• Manufacturer: Eaton
• Series/Frame: Series C, MDL-frame
• Amperage: 800A
• Voltage: 600V AC
• Poles: 3
• Interrupt Rating: 100 kAIC @ 240VAC, 65 kAIC @ 480VAC, 35 kAIC @ 600VAC
• Mounting Type: Fixed
• Tripping Unit: Fixed thermal, fixed magnetic
• Application: Industrial, commercial power distribution
• Standards: UL 489, CSA C22.2 No. 5
• Weight: 32 lb

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HMDLB3800T32W
• Manufacturer : Eaton
• Brand : Westinghouse
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Series C
• Type : HMDLB
• Voltage : 600
• Amperage : 800
• Phase : 3
• Poles : 3
• AIC rating : 65kA@480V
• Connection : Bolt-On
• Functions : LSI - Long-Time, Short-Time and Instantaneous
• Protection : Solid State

Product Data

• UPC : 782114350515
• GTIN : 00782114350515
• Dimensions : 4.09 in x 10.13 in x 5.48 in (Length/Depth x Height x Width)
• Weight : 1.5
