HMDL3800 - Cutler Hammer 800A 600V 3 Pole Molded Case Circuit Breaker, M Frame, Feed-Thru, 65kA Interrupt, Series C, Thermal Magnetic Trip, UL Listed

HMDL3800

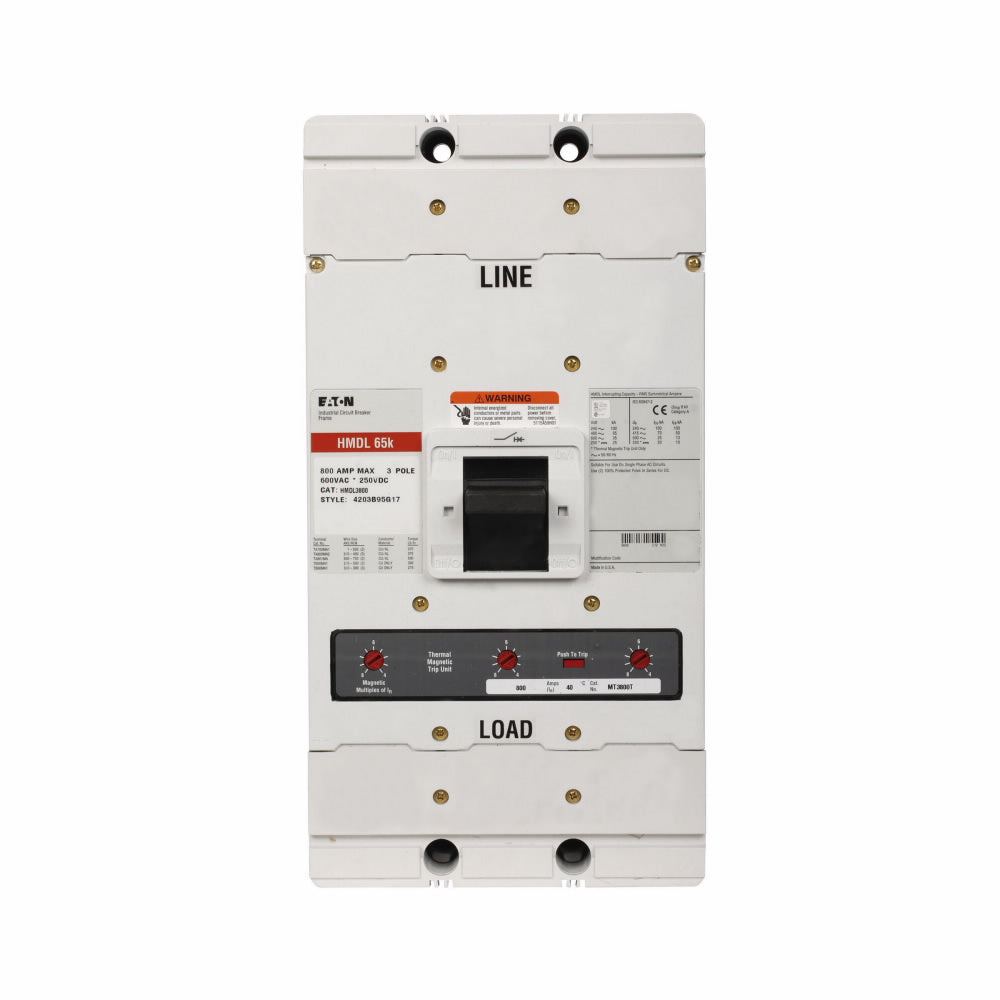

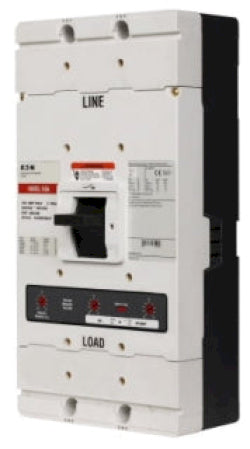

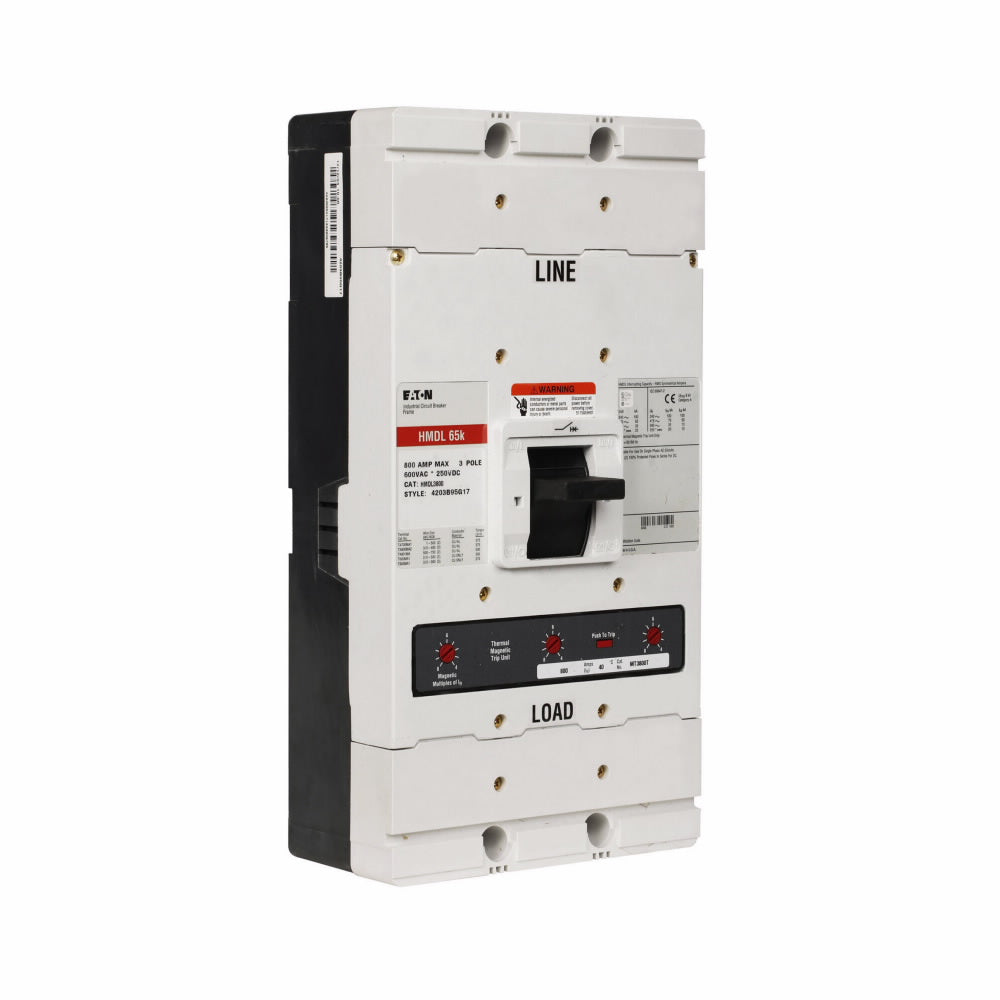

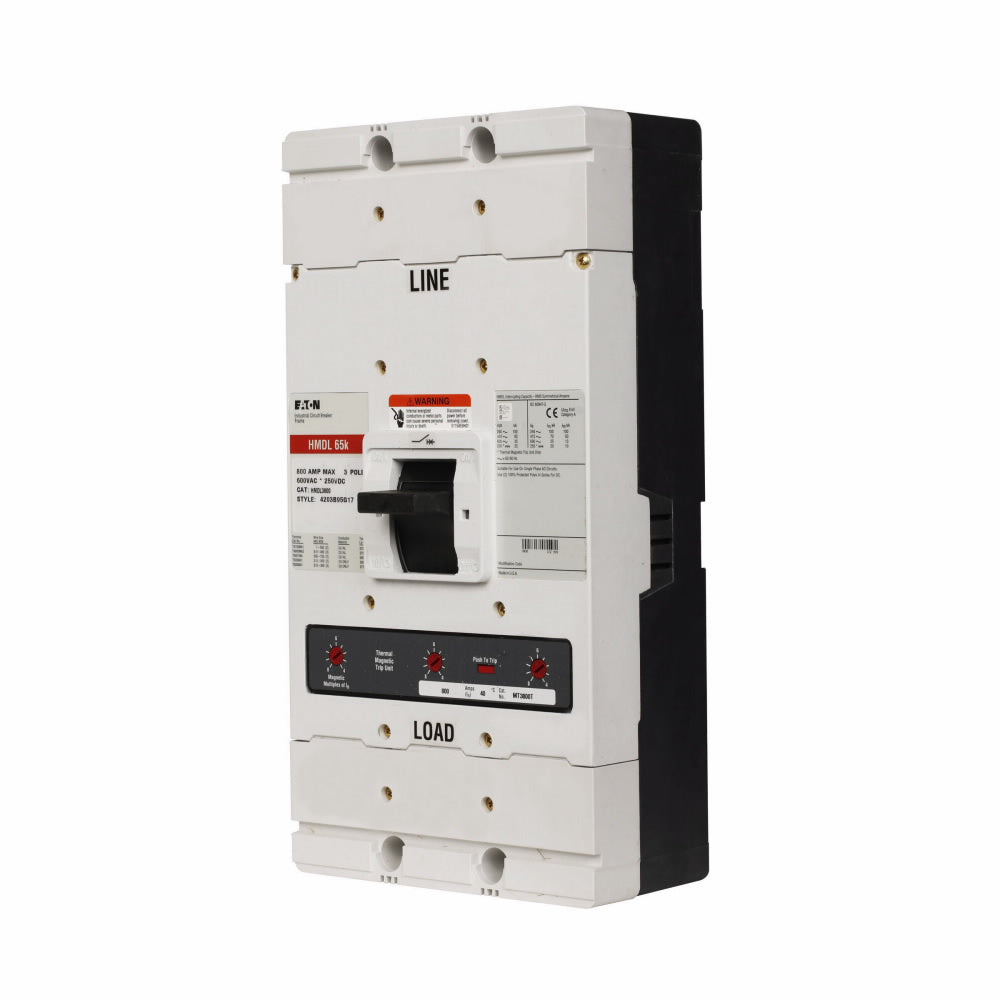

HMDL3800 is a Cutler Hammer 800A, 600V, 3-pole molded case circuit breaker designed for demanding commercial and industrial power distribution applications.

This Series C, M-frame breaker features a feed-thru mounting style, thermal magnetic trip unit with long-time and instantaneous (LI) protection, and high interrupting capacity. It is suitable for three-phase systems and is certified for safety and reliability.

Key Specifications
• Part Number: HMDL3800
• Manufacturer: Cutler Hammer
• Amperage: 800A
• Voltage: 600V
• Poles: 3
• Mounting Type: Feed-Thru
• Interrupt Rating: 65kA @ 480V, 100kA @ 240V, 35kA @ 600V, 25kA @ 250VDC
• Series/Frame: Series C, M Frame
• Trip Unit: Thermal Magnetic, Interchangeable, LI (Long-Time & Instantaneous)
• Certifications: UL Listed, CSA Certified
• Connection: Standard pressure line and load terminals
• Dimensions: 18.25" L x 8" H x 10.75" W
• Weight: 30.4 lbs

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HMDL3800
• Manufacturer : Cutler Hammer
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Series C
• Type : HMDL
• Voltage : 600
• Amperage : 800
• Phase : 3
• Poles : 3
• AIC rating : 65kA@480V
• Connection : Feed-Thru
• Functions : LI - Long-Time and Instantaneous
• Frame Size : M Frame
• Protection : Thermal Magnetic

Product Data

• UPC : 782114586082
• GTIN : 00782114586082
• Country of Origin : United States
• Dimensions : 18.25 in x 8 in x 10.75 in (Length/Depth x Height x Width)
• Weight : 30.4
• Certification : UL Listed
