Description
HMD63B800L

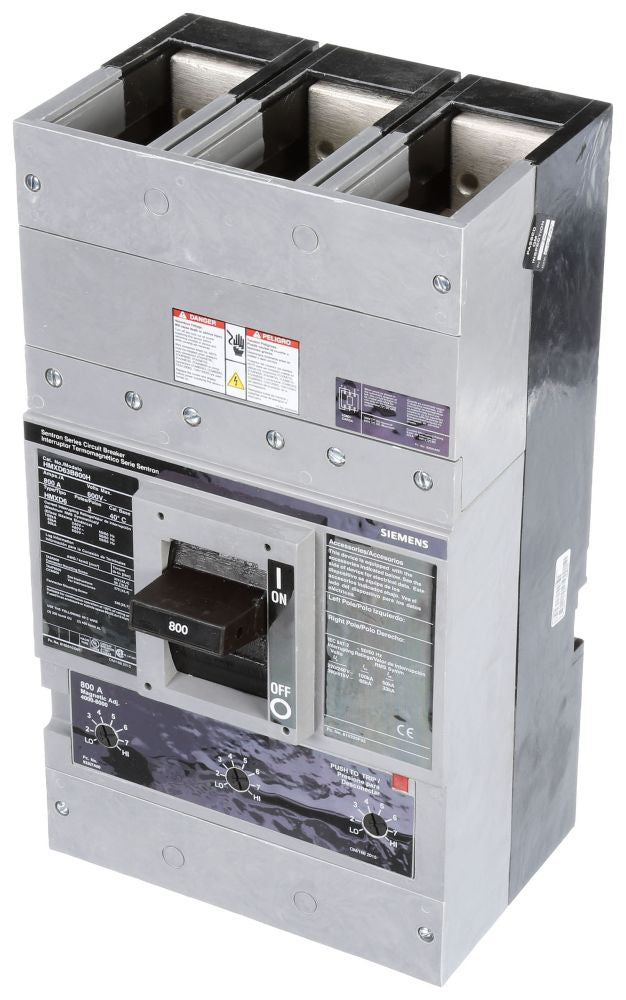

HMD63B800L is a Siemens molded case circuit breaker designed for reliable low voltage power distribution protection.
This 3-pole breaker features an 800 ampere current rating and is rated for 600 volts AC. It belongs to the Siemens LMD frame series and offers a high interrupting capacity of 50 kA at 600 VAC and 65 kA at 480 VAC. The breaker includes a thermal-magnetic trip unit and is suitable for use in environments up to 40 degrees Celsius. It meets UL 489 and IEC 60947-2 standards for circuit protection.
- Key Specifications
- Manufacturer: Siemens
- Part Number: HMD63B800L
- Amperage Rating: 800 A
- Voltage Rating: 600 VAC
- Number of Poles: 3
- Interrupt Rating: 50 kA at 600 VAC, 65 kA at 480 VAC
- Frame/Series: LMD
- Trip Unit: Thermal-Magnetic
- Mounting Type: Bolt-On
- Operating Temperature: 40°C Max
- Certifications: UL 489, IEC 60947-2
- Part Number: HMD63B800L
- Manufacturer : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Sentron Series
- Type : HMD
- Voltage : 600
- Amperage : 800
- Phase : 3
- Poles : 3
- AIC rating : 65kA@480V
- Connection : Feed-Thru
- Functions : LI - Long-Time and Instantaneous
- Frame Size : MD Frame
- Protection : Thermal Magnetic
- UPC : 783643008762
- GTIN : 00783643008762
- Country of Origin : Mexico
- Dimensions : 18.898 x 11.811 x 9.843 inch
- Weight : 61.619
