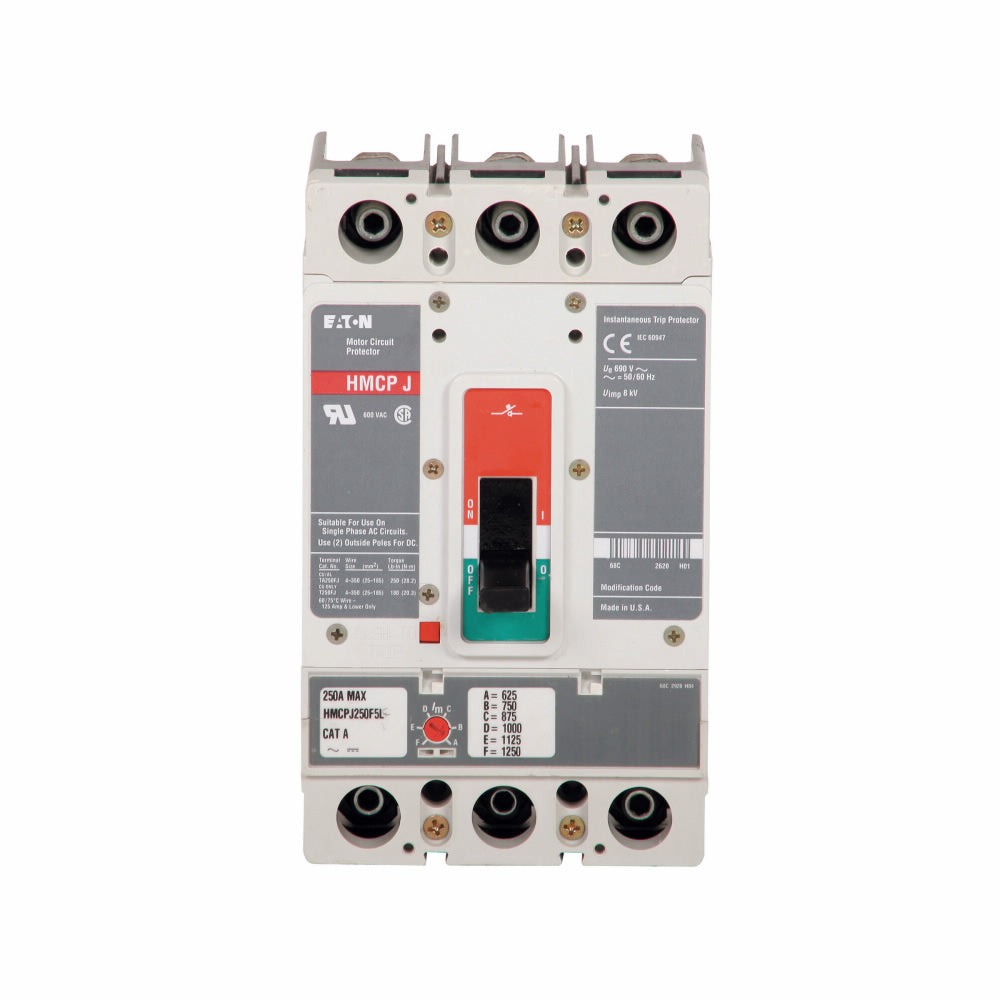

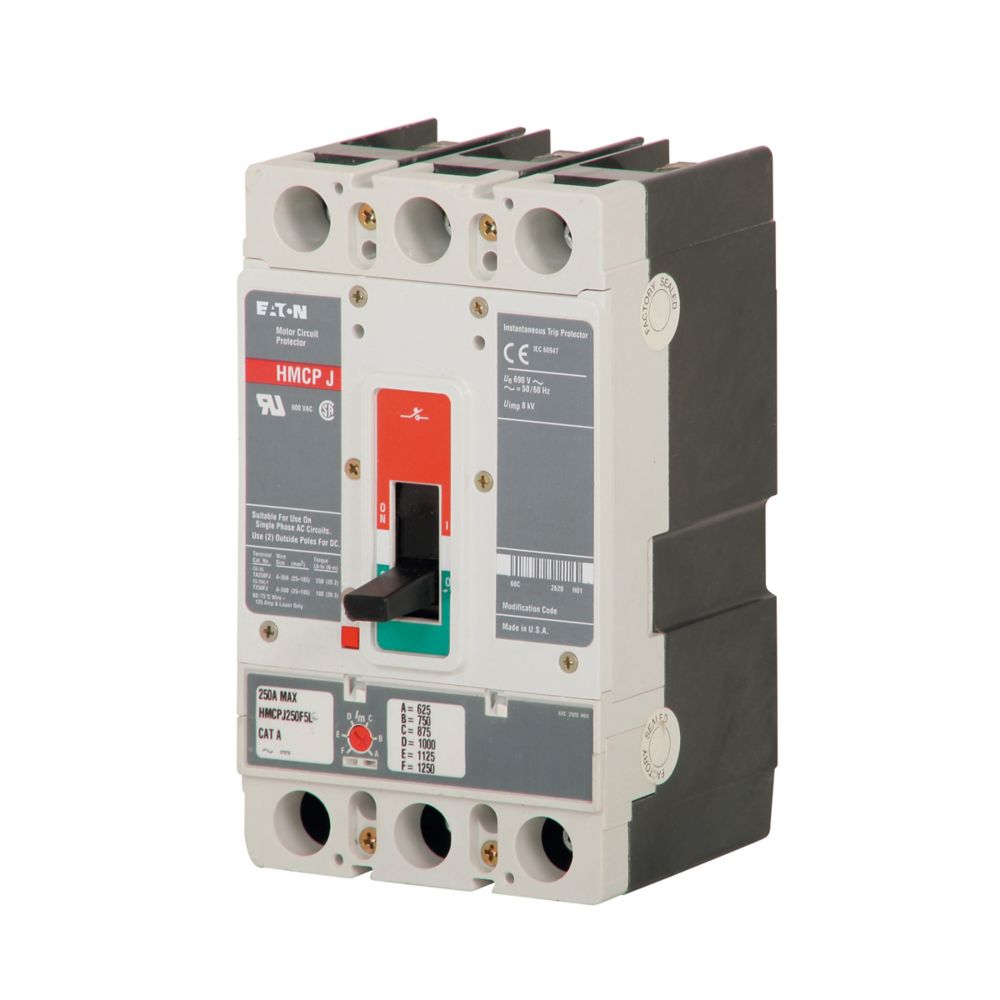

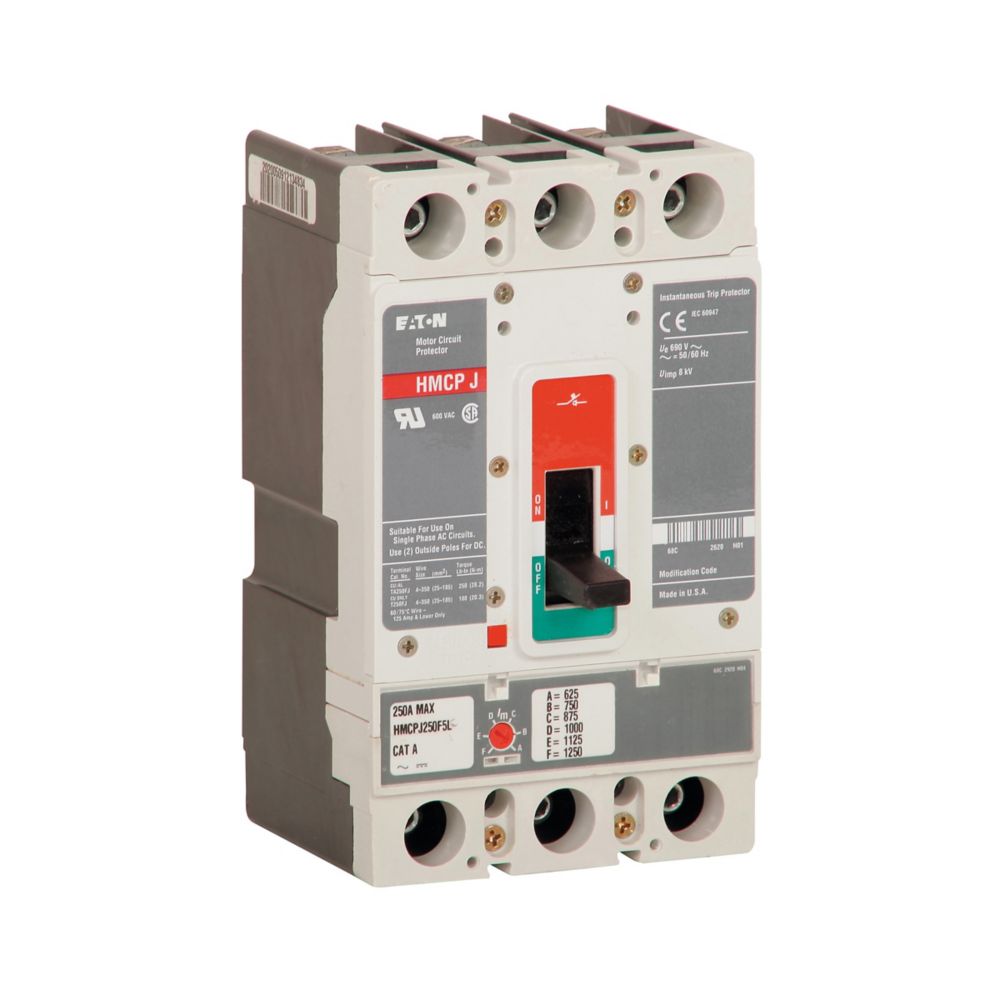

HMCPJ250W5L - Cutler Hammer 250A 600V 3-Pole Molded Case Circuit Breaker with Adjustable Trip 1250-2500A Frame JK

Save $2,251.88
SKU: HMCPJ250W5L-New
Condition: New
Price:
$1,957.89 $4,209.77
Stock:
Low inventory, please call for stock check
Factory Lead Time: 69 business days. Ships based on manufacturer availability when out of stock. All factory-ordered products are non-cancelable and non-returnable.

Same-Day Shipping

Most items ship same-day if ordered by 12:30 PM PST.

2 Year Warranty Guaranteed

All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.

Product Questions? Contact Us

Product Info

HMCPJ250W5L - Essential Electric Supply
HMCPJ250W5L - Cutler Hammer 250A 600V 3-Pole Molded Case Circuit Breaker with Adjustable Trip 1250-2500A Frame JK - Essential Electric Supply
HMCPJ250W5L - Cutler Hammer 250A 600V 3-Pole Molded Case Circuit Breaker with Adjustable Trip 1250-2500A Frame JK - Essential Electric Supply
HMCPJ250W5L - Cutler Hammer 250A 600V 3-Pole Molded Case Circuit Breaker with Adjustable Trip 1250-2500A Frame JK - Essential Electric Supply
Roll over image to zoom in Click on image to zoom Images are for reference only
HMCPJ250W5L - Essential Electric Supply
HMCPJ250W5L - Cutler Hammer 250A 600V 3-Pole Molded Case Circuit Breaker with Adjustable Trip 1250-2500A Frame JK - Essential Electric Supply
HMCPJ250W5L - Cutler Hammer 250A 600V 3-Pole Molded Case Circuit Breaker with Adjustable Trip 1250-2500A Frame JK - Essential Electric Supply
HMCPJ250W5L - Cutler Hammer 250A 600V 3-Pole Molded Case Circuit Breaker with Adjustable Trip 1250-2500A Frame JK - Essential Electric Supply

Description

HMCPJ250W5L


HMCPJ250W5L is a three-pole molded case circuit breaker designed for motor protection applications with adjustable trip settings. This Cutler Hammer circuit breaker features a 250A frame, 600V AC and 250V DC voltage ratings, and is built for reliable performance in industrial and commercial power distribution systems. The device offers adjustable trip range from 1250A to 2500A, making it suitable for a variety of motor protection needs. It is designed for feed-thru mounting and is compatible with standard panel configurations.
  • Part Number: HMCPJ250W5L
  • Manufacturer: Cutler Hammer
  • Amperage: 250A
  • Voltage Rating: 600V AC, 250V DC
  • Number of Poles: 3
  • Mounting Type: Feed-Thru
  • Interrupt Rating: 50kA @ 400V
  • Series/Frame: Frame JK
  • Adjustable Trip Range: 1250A - 2500A
  • Trip Unit: Magnetic Only, Instantaneous
  • Certifications: UL, CSA
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

  • Part Number: HMCPJ250W5L
  • Manufacturer : Cutler Hammer
  • Brand : Eaton
  • Category : Circuit Breaker
  • Item Subcategory : Molded Case
  • Family : Series G
  • Type : HMCPJ
  • Voltage : 600
  • Amperage : 250
  • Phase : 3
  • Poles : 3
  • AIC rating : 50kA@400V
  • Connection : Bolt-On
  • Functions : I - Instantaneous
  • Terminal Connection : Line/Load Lug
  • Frame Size : 250A/JG
  • Temp Rating : Minimum Operating Temp -4 Degrees F Max. Operating Temp.158 Degrees F
  • MCM Size : Min. Wire Size 14 AWG Max. Wire Size 1/0 AWG
  • Breaker Type : Standard
  • Protection : Magnetic Only
  • Phase Connection : ABC

Product Data

  • UPC : 782114965795
  • GTIN : 00782114965795
  • Country of Origin : Dominican Republic
  • Dimensions : 3.57 in x 7 in x 4.13 in (Length/Depth x Height x Width)
  • Weight : 6
  • Panel Type : Eaton Motor Starters, Rockwell Motor Starters
  • Standards : CSA Certified, IEC Rated, UL Listed
  • Certification : CSA Certified, IEC Rated, UL Listed
