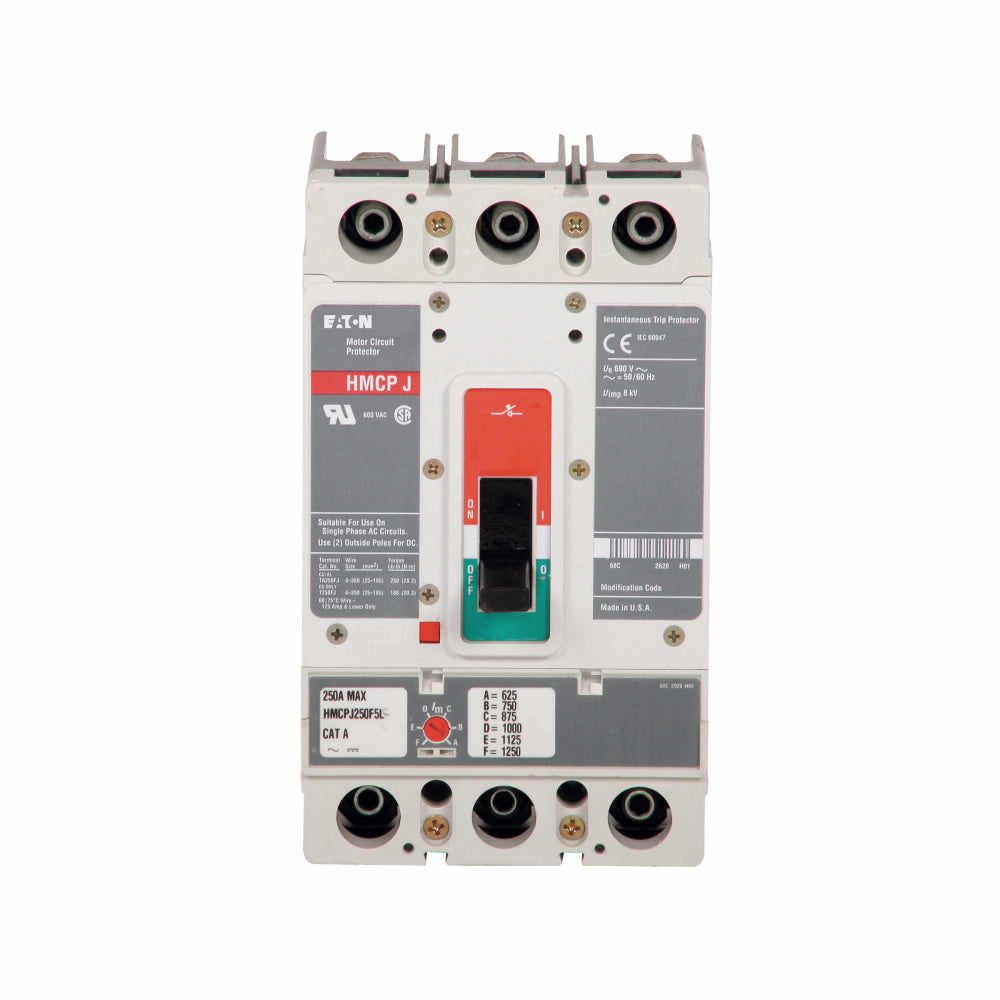

HMCPJ250K5L - Cutler Hammer 250A 600V 3 Pole Molded Case Circuit Breaker Series G

HMCPJ250K5L

HMCPJ250K5L is a 3 pole, 250A, 600V molded case circuit breaker from the Eaton Series G family, designed for reliable motor circuit protection and general power distribution applications. This Cutler Hammer HMCPJ250K5L circuit breaker features a bolt-on mounting style, adjustable magnetic trip range of 1000-2000A, and is rated for 50kA interrupting capacity at 400V. It is UL Listed and CSA Certified for safety and compliance in commercial and industrial installations.

• Part Number: HMCPJ250K5L
• Manufacturer: Cutler Hammer (Eaton)
• Amperage Rating: 250A
• Maximum Voltage: 600V AC, 250V DC
• Number of Poles: 3
• Mounting Type: Bolt-On
• Interrupt Rating: 50kA @ 400V
• Series/Frame: Series G, Frame J-K
• Adjustable Magnetic Trip Range: 1000-2000A
• Terminal Type: Line and Load
• Product Type: Motor Circuit Protector
• Certifications: UL Listed, CSA Certified

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HMCPJ250K5L
• Manufacturer : Cutler Hammer
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Series G
• Type : HMCPJ
• Voltage : 600
• Amperage : 250
• Phase : 3
• Poles : 3
• AIC rating : 50kA@400V
• Connection : Bolt-On
• Functions : Instantaneous Trip
• Terminal Connection : Line/Load Lug
• Frame Size : 250A/JG
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 14 AWG Max. Wire Size 1/0 AWG
• Breaker Type : Standard
• Protection : Magnetic Only
• Phase Connection : ABC

Product Data

• UPC : 782114965788
• GTIN : 00782114965788
• Country of Origin : Dominican Republic
• Dimensions : 3.57 in x 7 in x 4.13 in (Length/Depth x Height x Width)
• Weight : 6
• Panel Type : Eaton Motor Starters, Rockwell Motor Starters
• Standards : CSA Certified, IEC Rated, UL Listed
• Certification : CSA Certified, IEC Rated, UL Listed
