Product Info
- Manufacturer:Eaton
- Sub-Category:Molded Case
Description
HMCP250L5C

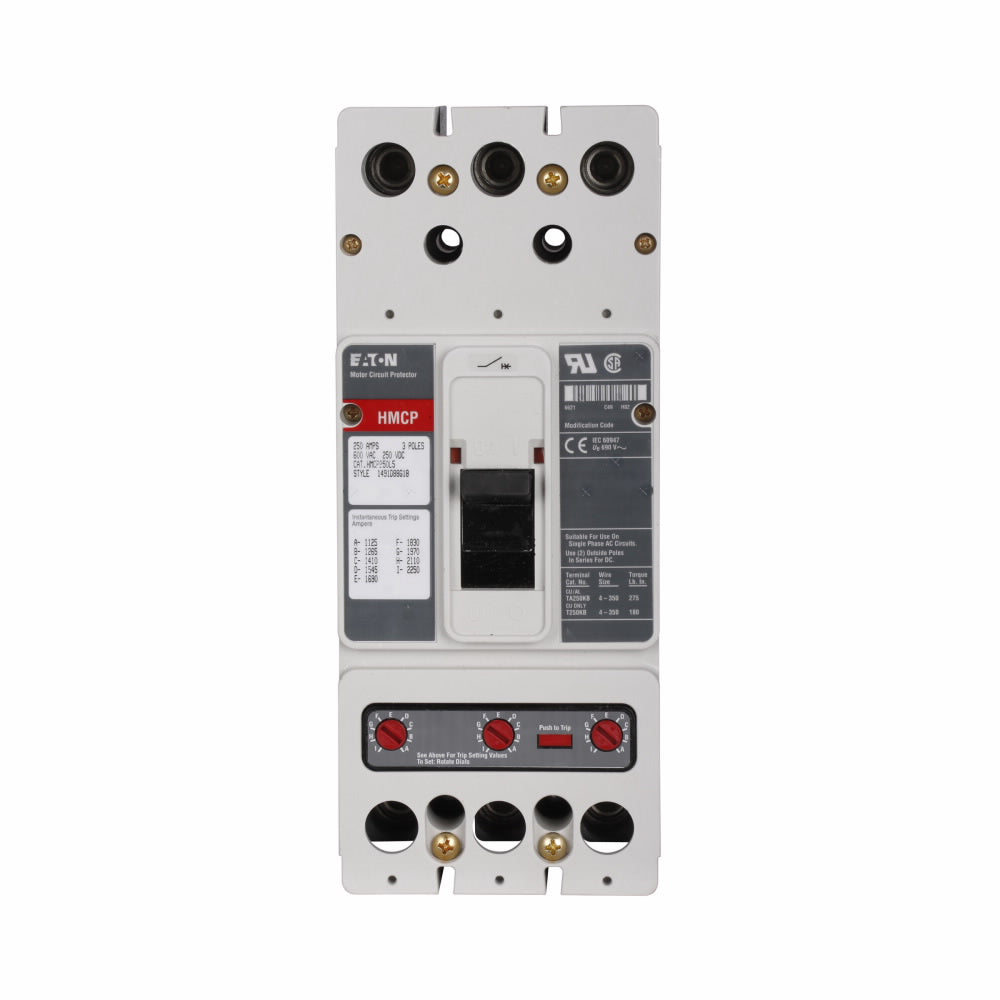

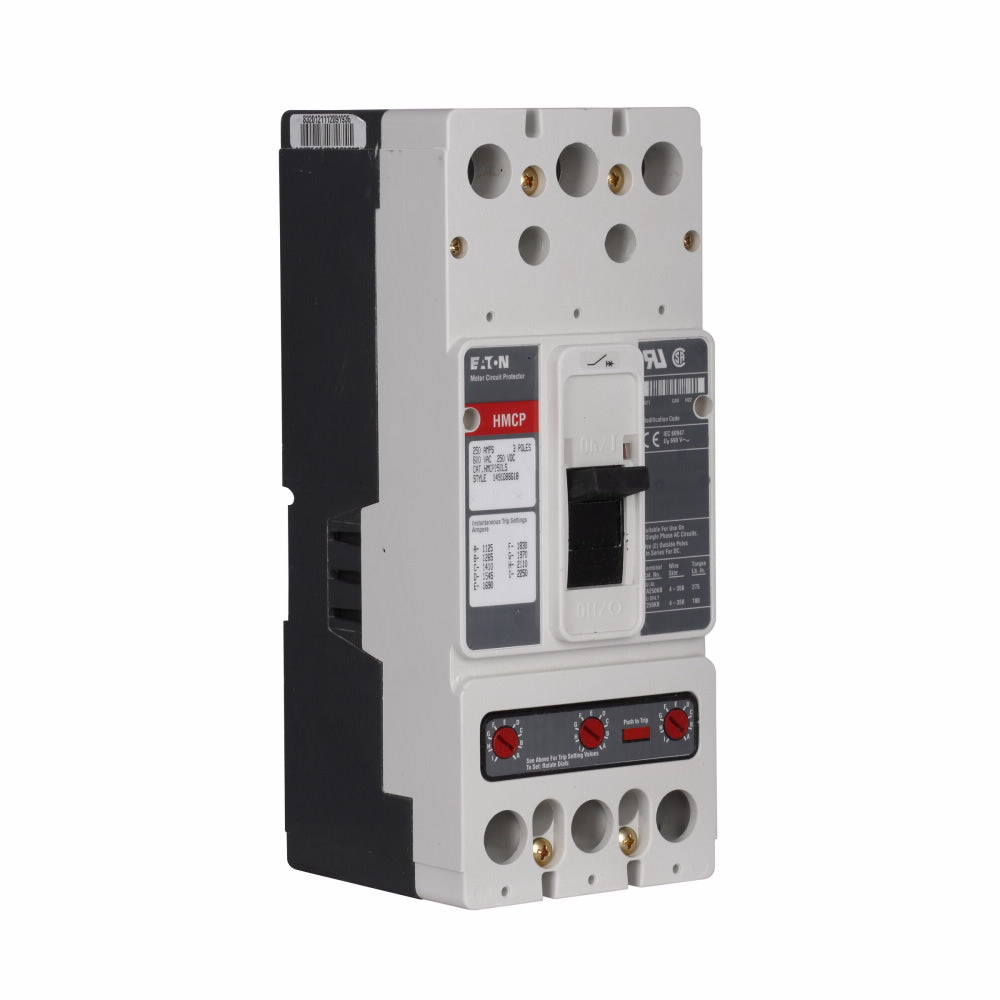

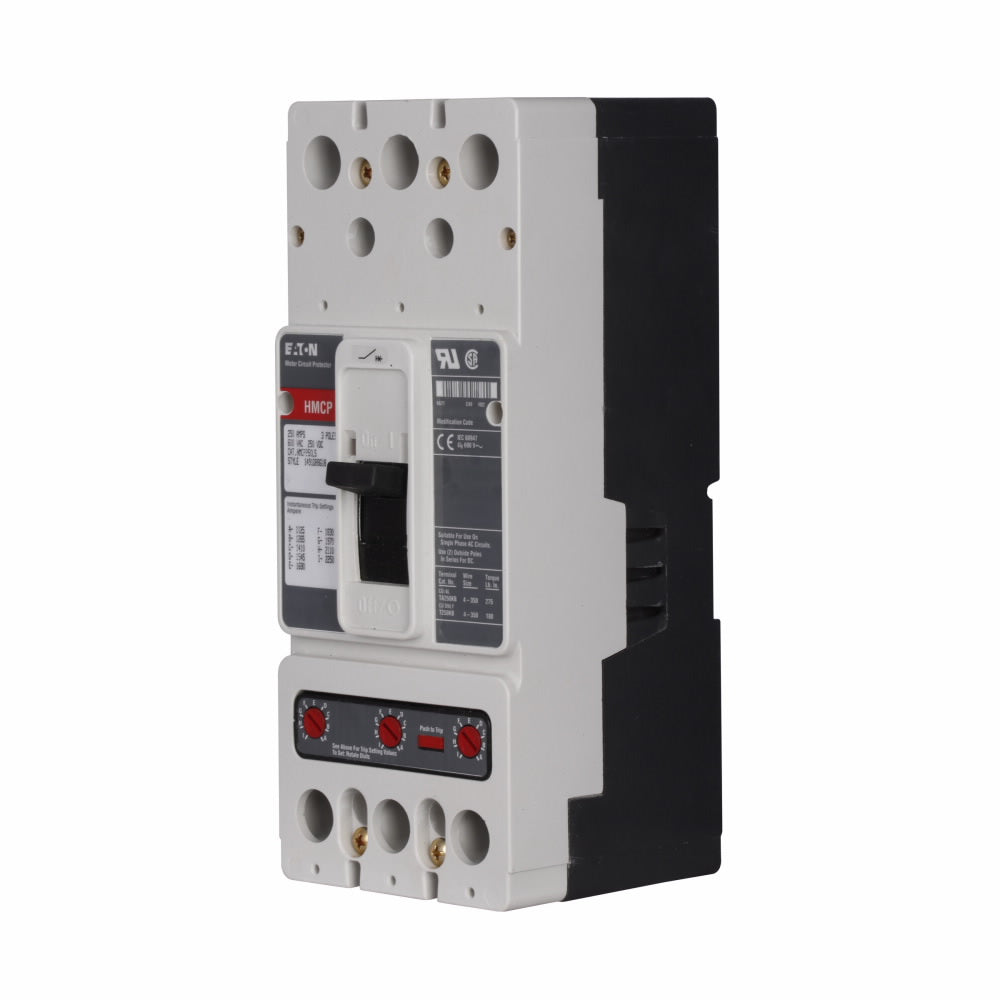

HMCP250L5C is an Eaton 3-pole motor circuit protector designed for reliable motor protection with a 250 ampere rating.
This motor circuit protector features a Frame J-K size and belongs to Eaton's Series C line. It supports a maximum voltage of 600 VAC and 250 VDC, with a magnetic trip range of 1125 to 2250 amperes. The device includes line and load terminals made of non-aluminum material and is UL Listed and CSA Certified for safety and performance.
- Amperage Rating: 250 A
- Voltage Rating: 600 VAC, 250 VDC
- Number of Poles: 3
- Frame Size: J-K
- Series: Series C
- Magnetic Trip Range: 1125-2250 A
- Terminal Type: Line and Load
- Terminal Material: Non-aluminum
- Certifications: UL Listed, CSA Certified
- Mounting Type: Panel mount
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: HMCP250L5C
- Manufacturer : Eaton
- Brand : Cutler Hammer
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Series C
- Type : HMCP
- Voltage : 600
- Amperage : 250
- Phase : 3
- Poles : 3
- AIC rating : 35kA@480V
- Connection : Feed-Thru
- Functions : I - Instantaneous
- Frame Size : J Frame
- Protection : Magnetic Only
Product Data
- UPC : 786679151068
- GTIN : 00786679151068
- Country of Origin : Dominican Republic
- Dimensions : 4.06 in x 10 in x 4.13 in (Length/Depth x Height x Width)
- Weight : 12.5
- Certification : UL Listed,CSA Certified
