Product Info
- Manufacturer:Eaton
- Sub-Category:Molded Case
Description
HMCP250A5CA05

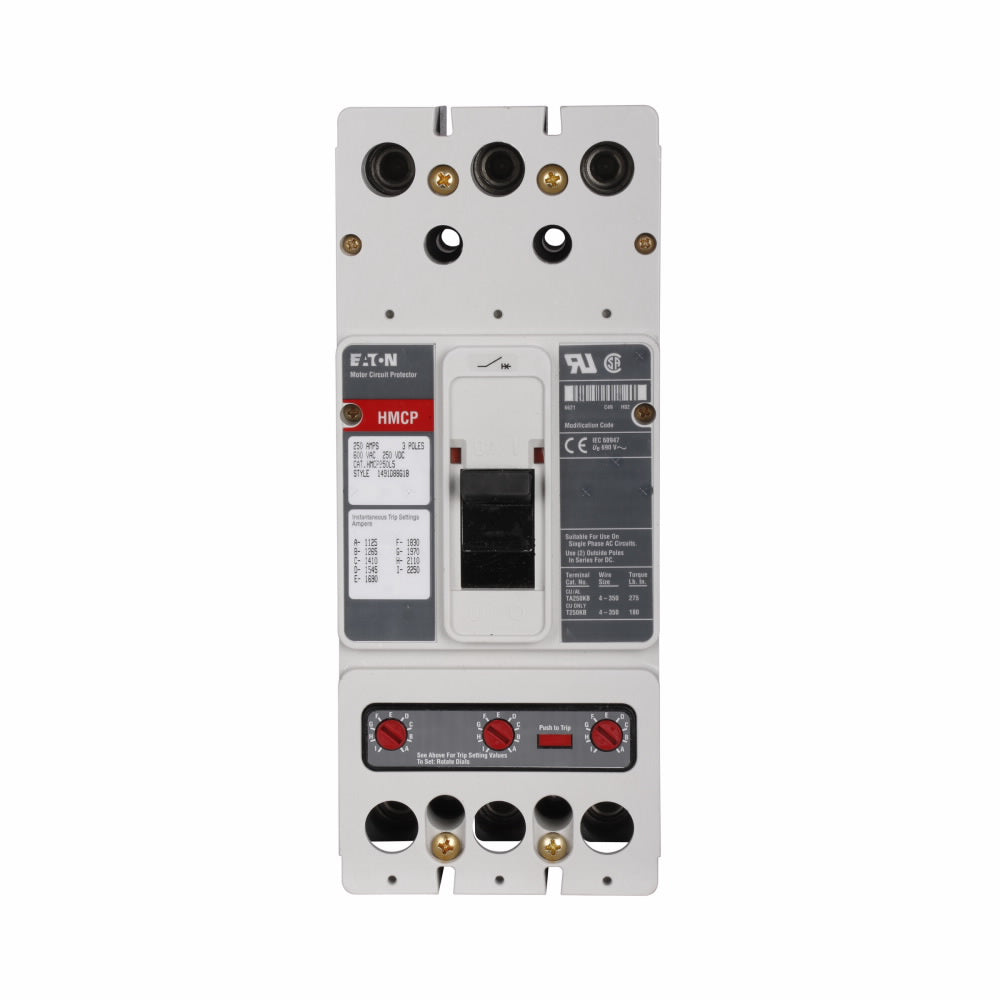

HMCP250A5CA05 is a 3-pole motor circuit protector from Eaton's Series C designed for reliable circuit protection in motor applications.This molded case circuit breaker features a 250 ampere rating and supports voltages up to 600 VAC and 250 VDC. It is built on the J-frame size and includes a magnetic trip unit for motor protection. The device is suitable for industrial environments requiring robust and precise motor circuit protection.
- Key Specifications
- Amperage: 250 A
- Voltage: 600 VAC max, 250 VDC max
- Poles: 3
- Series/Frame: Series C, J-Frame
- Trip Unit: Magnetic trip
- Mounting Type: Molded case
- Part Number: HMCP250A5CA05
- Manufacturer : Eaton
- Brand : Cutler Hammer
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Series C
- Type : HMCP
- Voltage : 600
- Amperage : 250
- Phase : 3
- Poles : 3
- AIC rating : 35kA@480V
- Connection : Feed-Thru
- Functions : I - Instantaneous
- Frame Size : J Frame
- Protection : Magnetic Only
- UPC : 786679272008
- GTIN : 00786679272008
- Country of Origin : Dominican Republic
- Dimensions : 4.06 in x 10 in x 4.13 in (Length/Depth x Height x Width)
- Weight : 12.5
- Certification : UL Listed,CSA Certified
