HMCP015E0C - Cutler Hammer 15 Amp 600V 3 Pole Motor Circuit Protector F Frame Magnetic Trip

HMCP015E0C

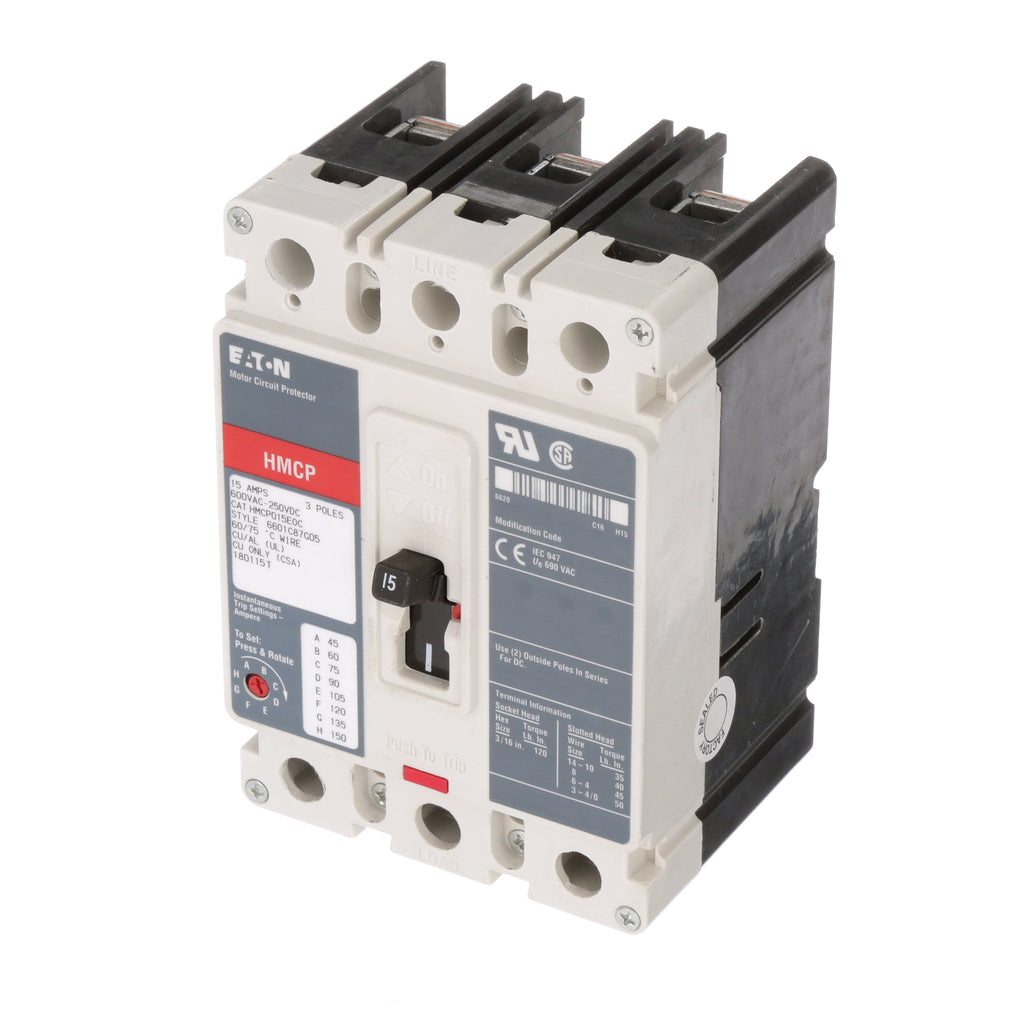

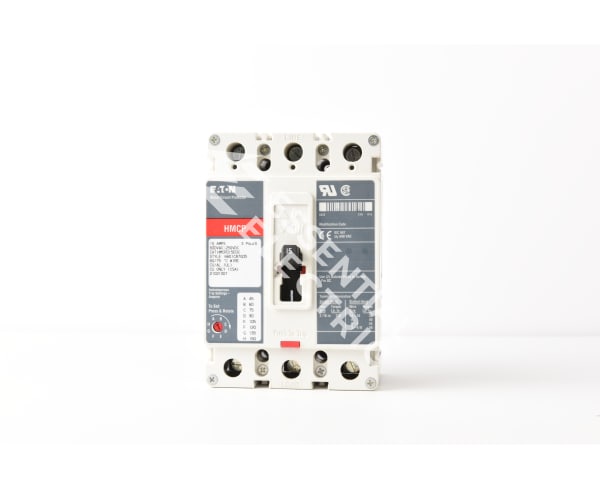

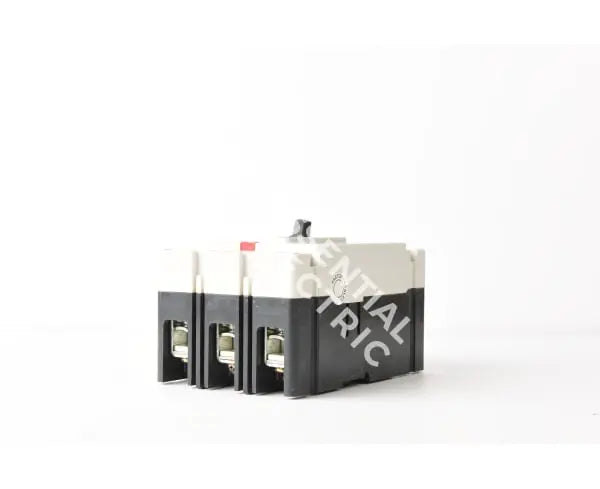

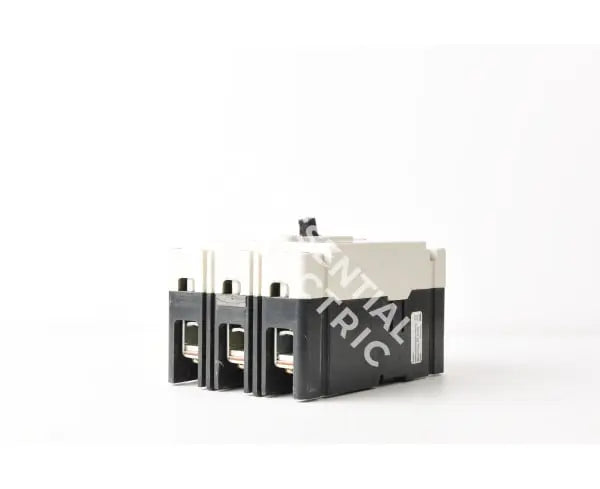

HMCP015E0C is a 15 Amp, 3 Pole Motor Circuit Protector from Cutler Hammer designed for industrial motor protection applications.This molded case circuit breaker features an F frame style with a magnetic non-interchangeable instantaneous-only trip unit. It supports a trip setting range of 45-150 Amperes, suitable for motor full load currents from 3.4 to 12.6 Amperes. Rated for 600 VAC and 250 VDC maximum voltage, it mounts via panel or bolt-on connection and complies with UL and CSA certifications.

• Manufacturer: Cutler Hammer (Eaton)
• Amperage: 15 A
• Voltage: 600 VAC, 250 VDC max
• Poles: 3
• Frame Type: F Frame
• Trip Unit: Magnetic, instantaneous-only, non-interchangeable
• Trip Setting Range: 45-150 A
• Motor Full Load Amps: 3.4-12.6 A
• Mounting Type: Panel mount / Bolt on
• Interrupt Rating: 65kAIC @ 480V
• Certifications: UL, CSA, CE

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HMCP015E0C
• Manufacturer : Cutler Hammer
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Series C
• Type : HMCP
• Voltage : 600
• Amperage : 15
• Phase : 3
• Poles : 3
• AIC rating : 65kA@480V
• Connection : Bolt-On
• Functions : I - Instantaneous
• Terminal Connection : Line/Load Lug
• Frame Size : 250A/J
• Temp Rating : Minimum Operating Temp -4 Degrees F Max. Operating Temp.158 Degrees F
• MCM Size : Min. Wire Size 14 AWG Max. Wire Size 1/0 AWG
• Breaker Type : Standard
• Protection : Magnetic Only
• Phase Connection : ABC

Product Data

• UPC : 786679150818
• GTIN : 00786679150818
• Country of Origin : Dominican Republic
• Dimensions : 8 in x 5 in x 5 in (Length/Depth x Height x Width)
• Weight : 4.5
• Panel Type : Eaton Motor Starters, Rockwell Motor Starters
• Standards : CSA Certified, IEC Rated, UL Listed
• Certification : CSA Certified, IEC Rated, UL Listed
