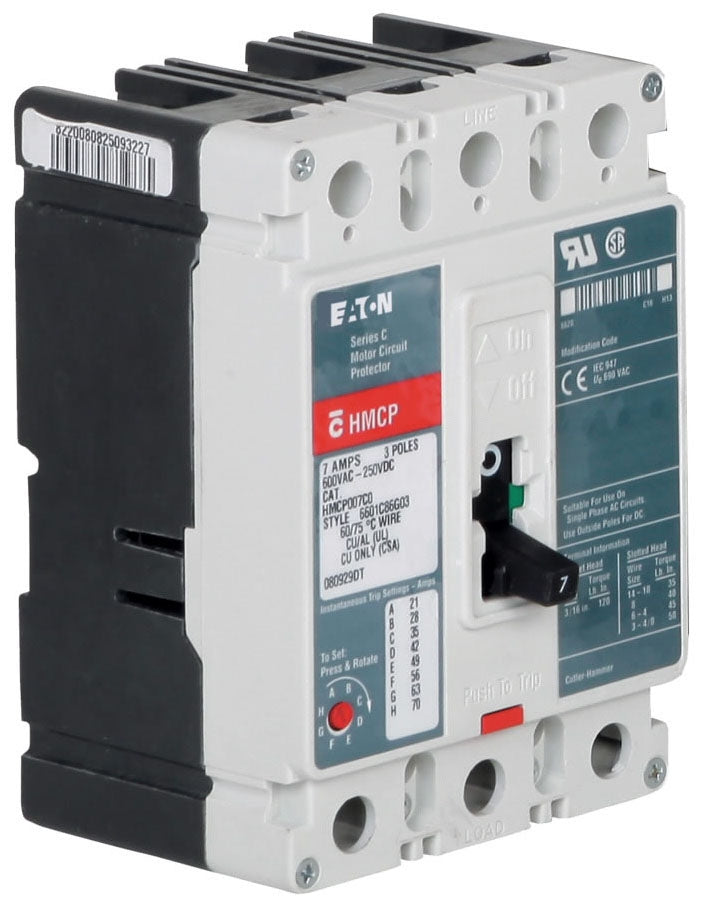

HMCP007C0C - Eaton 3 Pole 7A Motor Circuit Protector 600VAC Frame J-K Series C

HMCP007C0C

HMCP007C0C is a three-pole motor circuit protector designed for reliable protection in industrial and commercial applications. This Eaton molded case circuit breaker features a 7A amperage rating, 600VAC voltage rating, and is part of the HMCP Series C with Frame J-K. It provides instantaneous trip protection and is suitable for motor circuit applications requiring high interrupting capacity and dependable performance. Engineered for durability and safety, the HMCP007C0C offers a feed-thru connection type, non-aluminum terminals, and is UL Listed and CSA Certified. Its magnetic trip range is 21-70A, making it ideal for motor circuit protection where precise and fast response is critical. The compact design and robust construction ensure easy installation and long-term reliability in demanding environments.

• Part Number: HMCP007C0C
• Manufacturer: Eaton (Cutler-Hammer)
• Type: Motor Circuit Protector
• Series: HMCP Series C
• Frame: Frame J-K
• Poles: 3
• Amperage Rating: 7A
• Voltage Rating: 600VAC
• Interrupting Rating: 65kA@480V
• Connection Type: Feed Thru
• Terminal Material: Non-aluminum
• Certifications: UL Listed, CSA Certified

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HMCP007C0C
• Manufacturer : Cutler Hammer
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Series C
• Type : HMCP
• Voltage : 600
• Amperage : 7
• Phase : 3
• Poles : 3
• AIC rating : 65kA@480V
• Connection : Bolt-On
• Functions : Instantaneous
• Terminal Connection : Line/Load Lug
• Frame Size : 250A/J
• Temp Rating : Minimum Operating Temp -4 Degrees F Max. Operating Temp.158 Degrees F
• MCM Size : Min. Wire Size 14 AWG Max. Wire Size 1/0 AWG
• Breaker Type : Standard
• Protection : Magnetic Only
• Phase Connection : ABC

Product Data

• UPC : 786679150801
• GTIN : 00786679150801
• Country of Origin : Dominican Republic
• Dimensions : 8 in x 5 in x 5 in (Length/Depth x Height x Width)
• Weight : 4.5
• Panel Type : Eaton Motor Starters, Rockwell Motor Starters
• Standards : CSA Certified, IEC Rated, UL Listed
• Certification : CSA Certified, IEC Rated, UL Listed
