2 Year Warranty Guaranteed
All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.
Product Questions? Contact Us
Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
HLXD63B600H

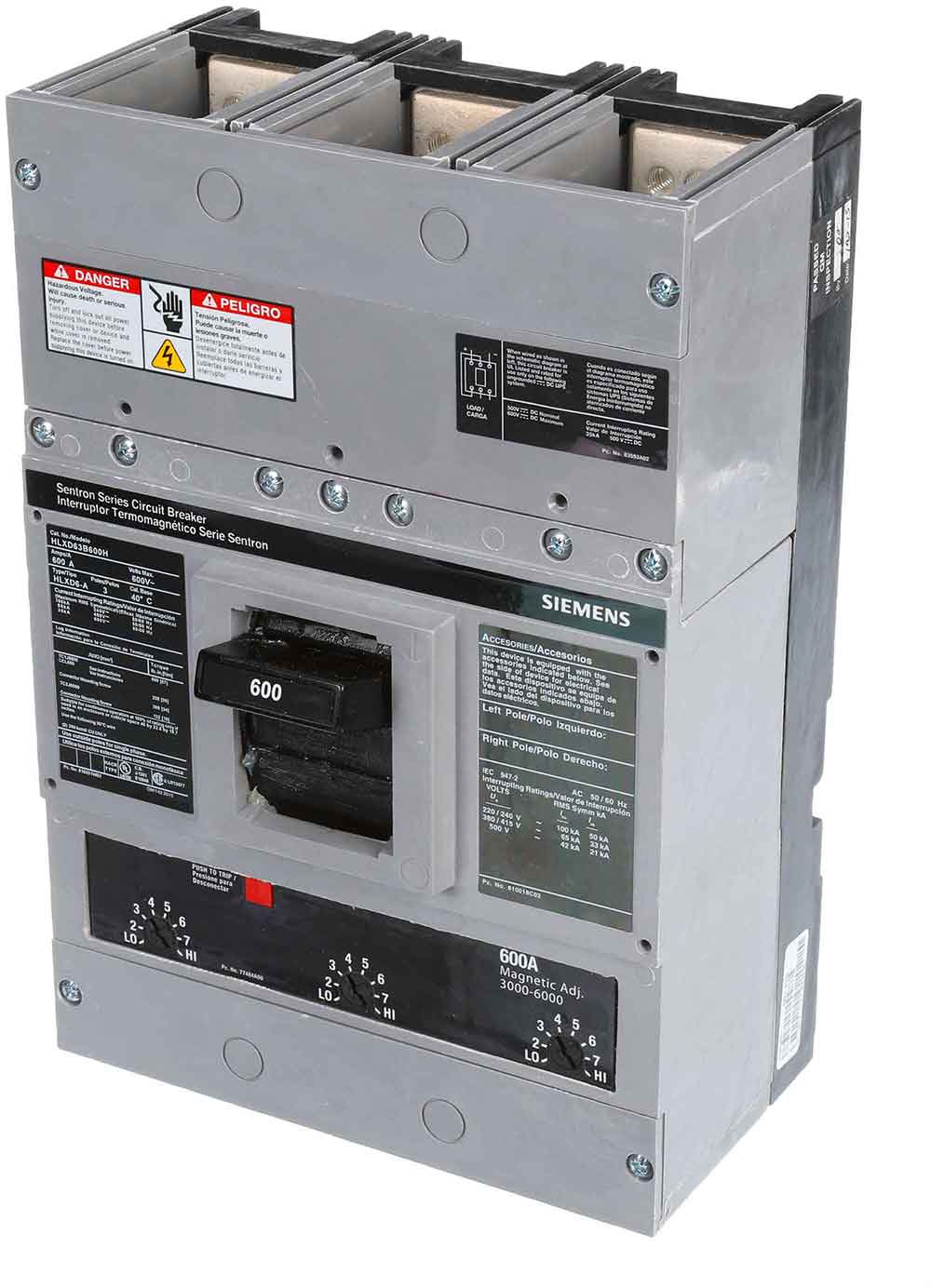

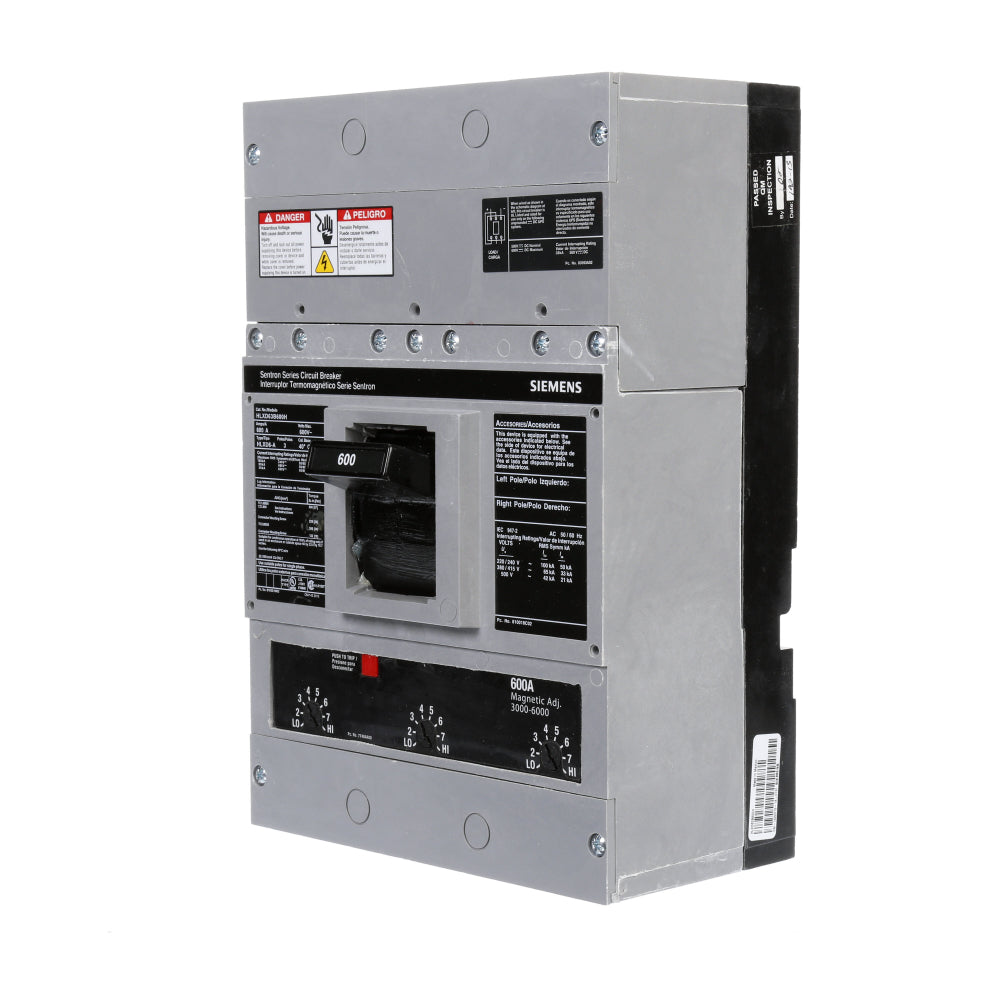

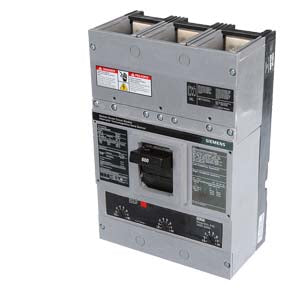

HLXD63B600H is a Siemens 3 pole molded case circuit breaker rated for 600 amps and 600 volts AC with bolt-on mounting.This Siemens Sentron series breaker features thermal magnetic protection with long time, short time, and instantaneous trip functions.
- Amperage: 600A
- Voltage: 600VAC
- Poles: 3
- Frame Type: LXD (LD Frame)
- Interrupt Rating: 25kAIC at 600V, 35kAIC at 480V
- Mounting Type: Bolt-On
- Trip Unit: Thermal Magnetic, Non-Interchangeable
- Standards: UL Listed, IEC, RoHS Compliant
- Phase: 3 Phase
- Temperature Rating: 40°C
- Connection Type: Bolt-On
Additional Information
This item does not included Lugs. If you would like lugs please reach out to a sales rep with wiring specs and we can help you with the lugs part number.
Specifications
- Part Number: HLXD63B600H
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Sentron Series
- Type : HLXD
- Voltage : 600
- Amperage : 600
- Phase : 3
- Poles : 3
- AIC rating : 65kA@480V
- Connection : Bolt-On
- Functions : Long Time and Instantaneous Trip
- Frame Size : LD Frame
- Temp Rating : -13–158 °F (-25–70 °C)
- Protection : Thermal Magnetic
Product Data
- UPC : 783643320178
- GTIN : 00783643320178
- Country of Origin : Mexico
- Weight : 18.001
