HLXD63B250 - Siemens 3-Pole 250A 600V Molded Case Circuit Breaker, Thermal Magnetic Trip, 22kA@600V, 35kA@480V, Bolt-On Mount, Sentron Series

HLXD63B250

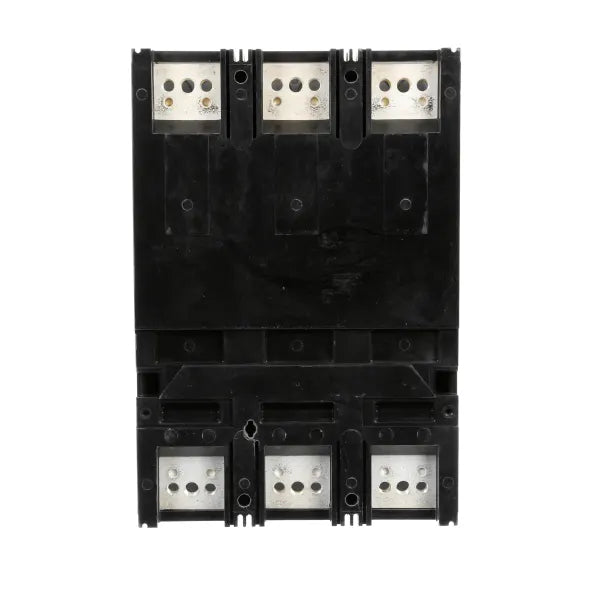

HLXD63B250 is a Siemens Sentron Series molded case circuit breaker designed for reliable protection in low-voltage power distribution systems. This 3-pole, 250A, 600V breaker features a thermal magnetic trip unit and is rated for 22kA at 600V and 35kA at 480V. The breaker is bolt-on mount and is suitable for standard 40°C applications. It is UL listed and comes with a non-interchangeable trip unit for added safety and reliability. The HLXD63B250 is part of the Sentron FD frame series and is engineered for use in commercial and industrial environments. Its robust construction and precise trip characteristics ensure dependable circuit protection. The breaker is shipped without lugs installed, allowing for flexible field installation.

• Part Number: HLXD63B250
• Manufacturer: Siemens
• Series: Sentron FD
• Frame: FD
• Poles: 3
• Ampere Rating: 250A
• Voltage Rating: 600V
• Interrupt Rating: 22kA @ 600V, 35kA @ 480V
• Mounting Type: Bolt-On
• Trip Unit: Non-Interchangeable, Thermal Magnetic
• Standards: UL Listed
• Operating Temperature: 40°C

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

This item does not included Lugs. If you would like lugs please reach out to a sales rep with wiring specs and we can help you with the lugs part number.

Specifications

• Part Number: HLXD63B250
• Manufacturer : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Sentron Series
• Type : HLXD
• Voltage : 600
• Amperage : 250
• Phase : 3
• Poles : 3
• AIC rating : 65kA@480V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous
• Frame Size : LD Frame
• Protection : Thermal Magnetic

Product Data

• Weight : 25
