HLA260304 - Square D 30A 600V 2 Pole I-Line Style Circuit Breaker 100kA Interrupt Rating

HLA260304

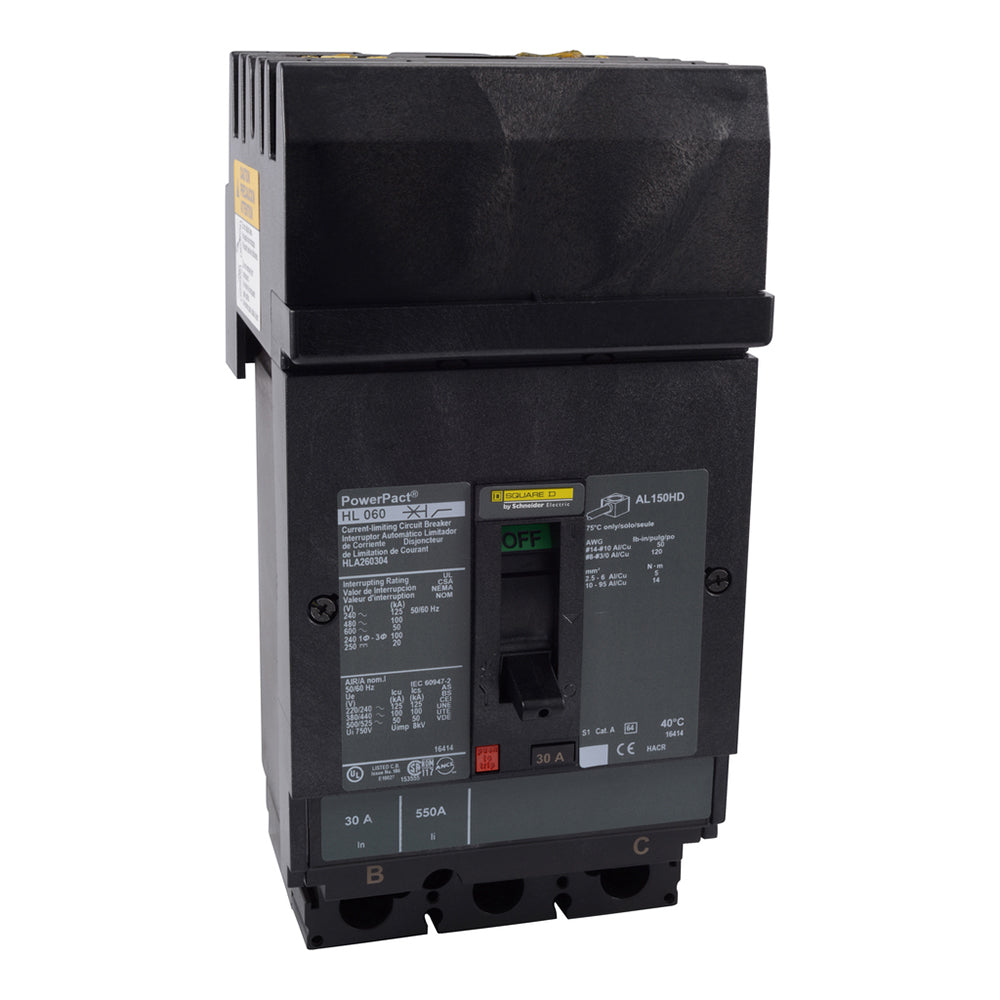

HLA260304 is a Square D 2 pole, 30 amp, 600 Volt I-Line style plug-in circuit breaker with a 100kA interrupting rating at 480V.

This circuit breaker is designed for reliable protection in industrial and commercial electrical systems. It features a thermal-magnetic trip unit, plug-in mounting type compatible with I-Line panelboards, and a high interrupting capacity of 100kA at 480V to ensure safety under fault conditions. The breaker is UL listed and suitable for use in 600V AC applications.

• Amperage: 30 Amps
• Voltage Rating: 600 Volts AC
• Poles: 2 Pole
• Mounting Type: I-Line Plug-In
• Interrupting Rating: 100kA at 480V
• Trip Unit: Thermal-Magnetic
• Series/Frame: HLA (Powerpact family)
• Certifications: UL Listed

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HLA260304
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : HLA
• Voltage : 600
• Amperage : 30
• Phase : 1
• Poles : 2
• AIC rating : 100kA@480V
• Connection : I-Line Style Plug-In
• Functions : Long Time and Instantaneous Trip
• Frame Size : H Frame
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Thermal Magnetic

Product Data

• Country of Origin : Mexico
• Dimensions : 6.4 in (163 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
• Weight : 3.999
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 14...AWG 3/0 aluminium/copper terminal
