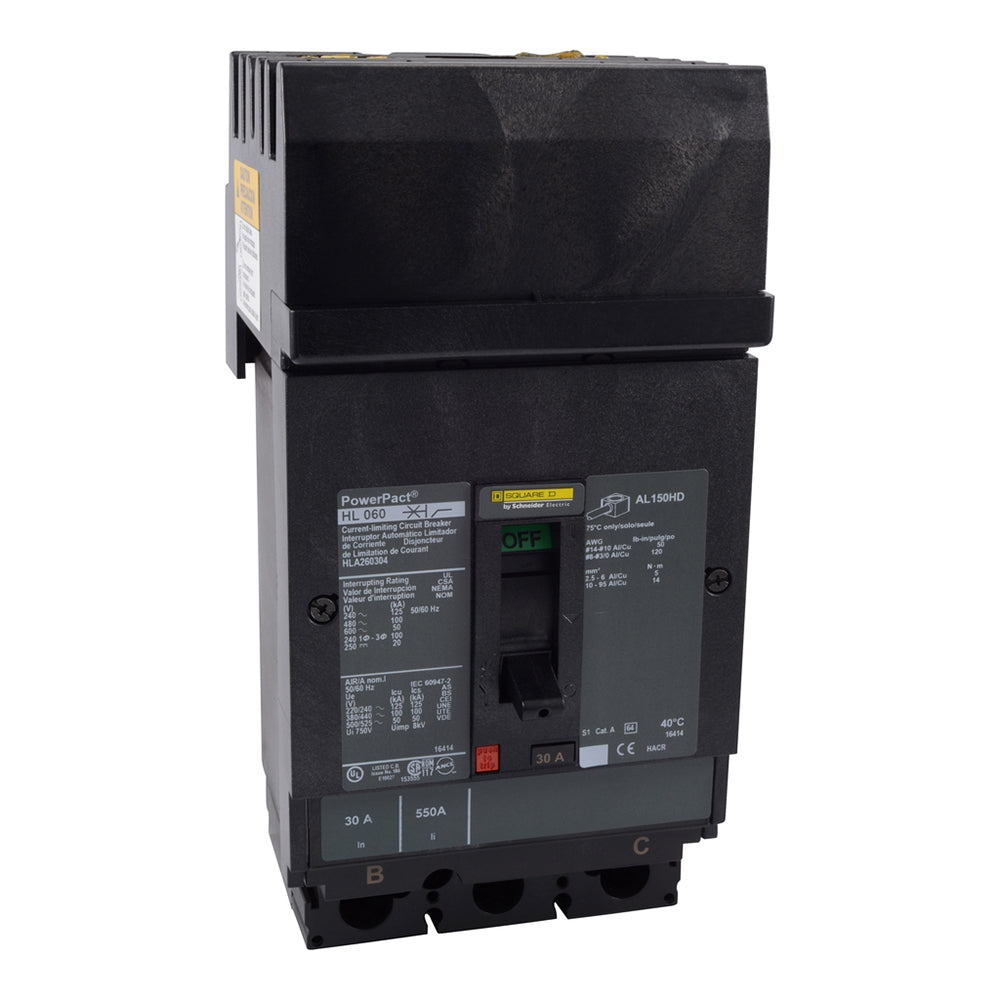

HLA260301 - Square D 30A 600V 2 Pole I-Line Style Circuit Breaker Thermal Magnetic

HLA260301

HLA260301 is a Square D 2 pole, 30 amp, 600 Volt I-Line style thermal magnetic circuit breaker designed for reliable circuit protection.HLA260301 features a 100kA interrupting rating at 480V AC and is suitable for use in PowerPact H-frame panels with plug-in mounting. It provides long time and instantaneous trip functions with current limiting and is non-interchangeable for enhanced safety.

Key Specifications
• Amperage: 30 Amps
• Voltage: 600 VAC
• Poles: 2
• Mounting Type: I-Line Plug-In
• Interrupt Rating: 100kA at 480V AC
• Frame/Series: PowerPact H (HLA)
• Trip Unit: Thermal Magnetic
• Phase: Single Phase (A & B Phase Connection)
• Current Limiting: Yes
• Non-Interchangeable Trip
• Suitable for Reverse Fed Applications
• Certifications: Meets California Proposition 65

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HLA260301
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : HLA
• Voltage : 600
• Amperage : 30
• Phase : 1
• Poles : 2
• AIC rating : 100kA@480V
• Connection : I-Line Style Plug-In
• Functions : Long Time and Instantaneous Trip
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Thermal Magnetic

Product Data

• UPC : 606486282536
• GTIN : 03606490000000
• Country of Origin : Mexico
• Dimensions : 6.4 in (163 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
• Weight : 3.999
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 14...AWG 3/0 aluminium/copper terminal
