Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Parts & Accessories
Description
HL4IMA24C1

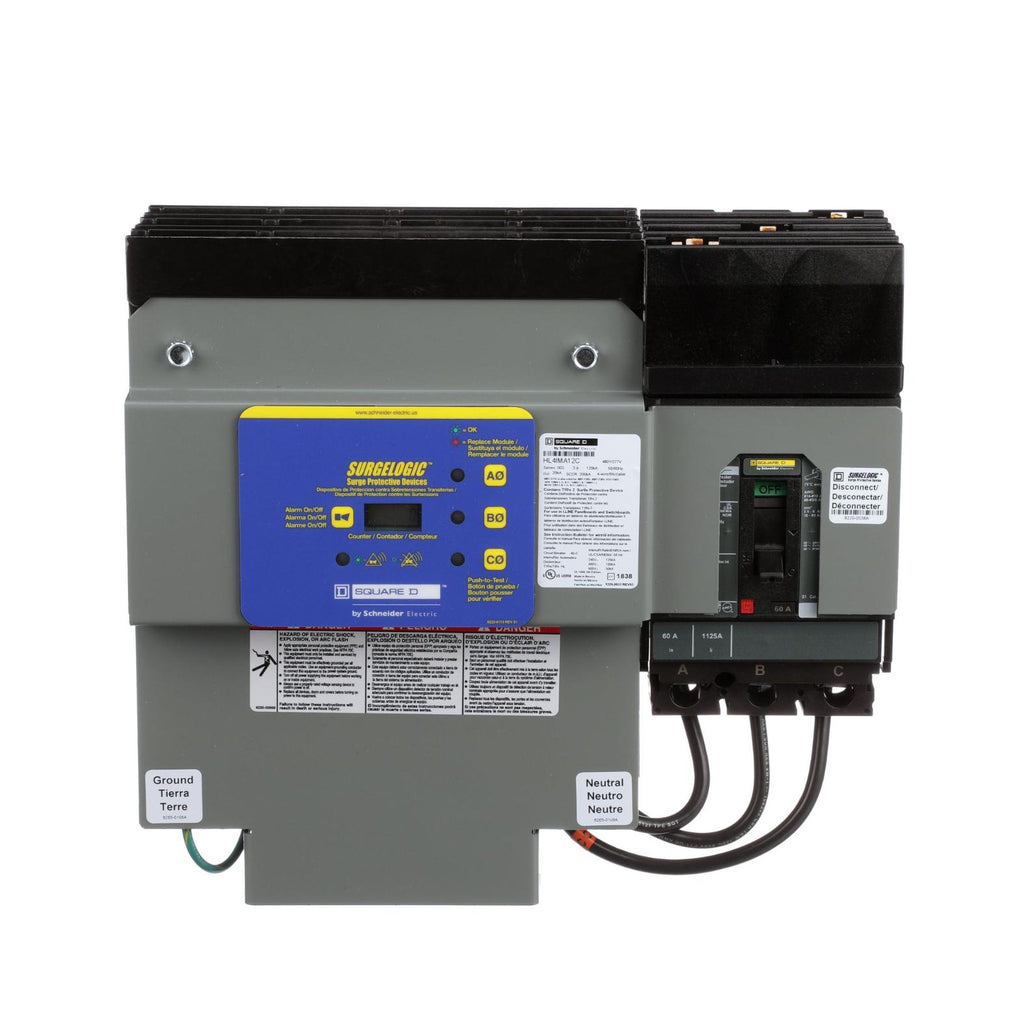

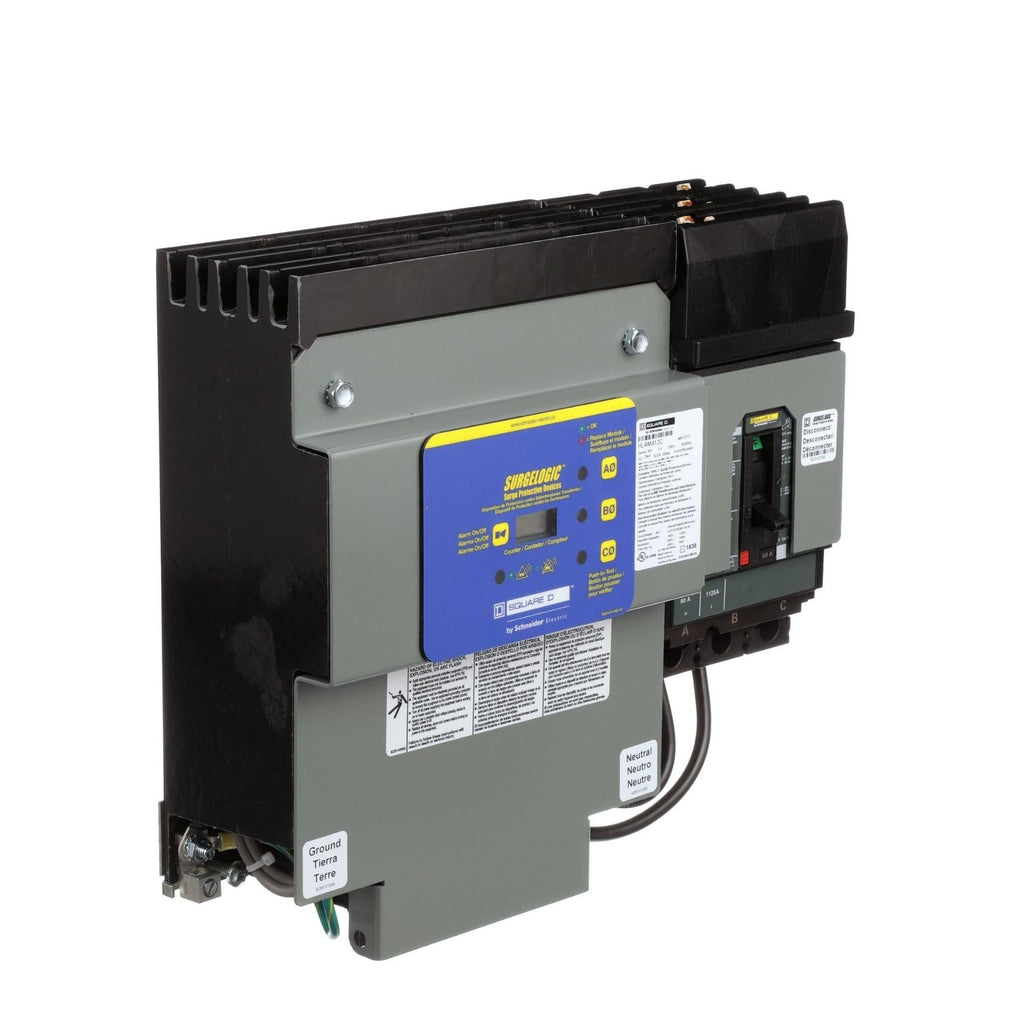

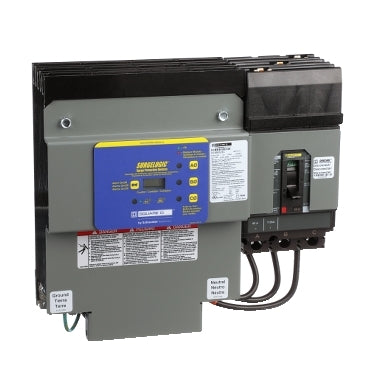

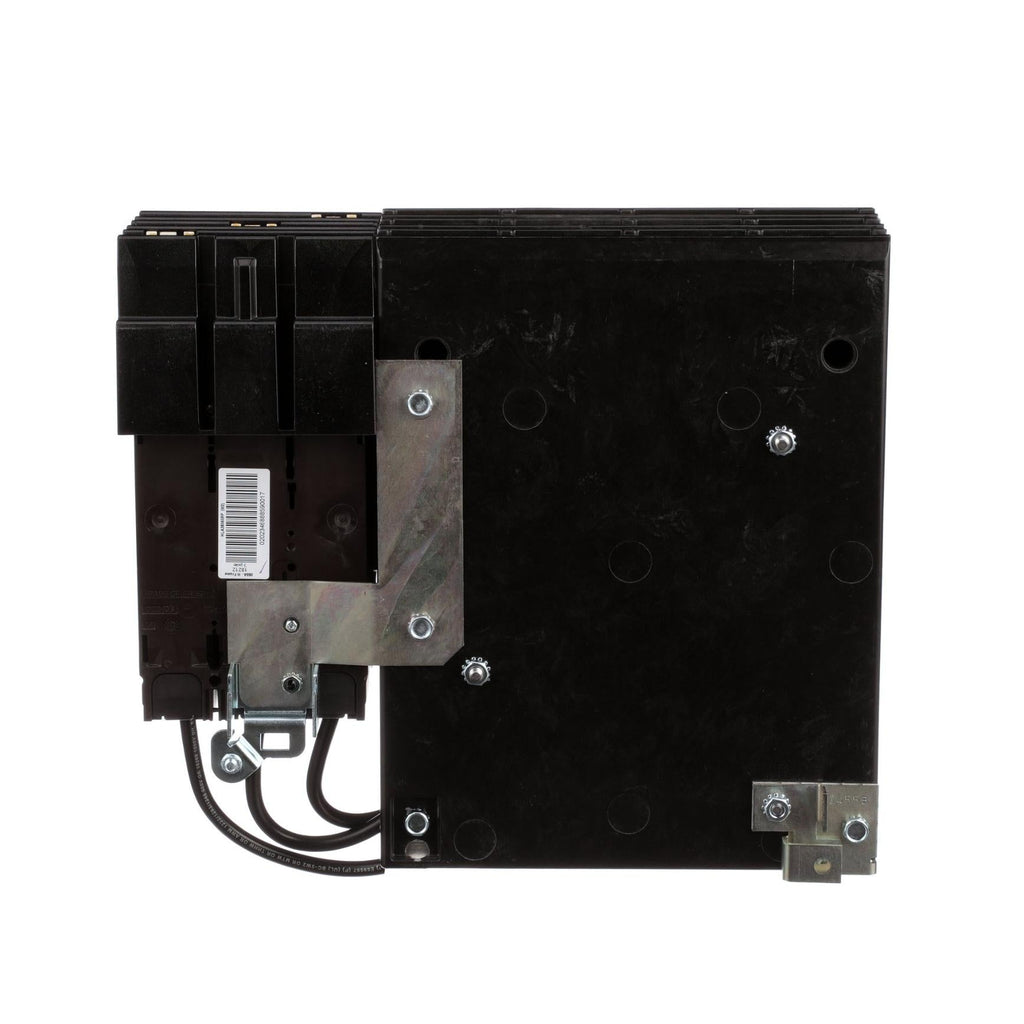

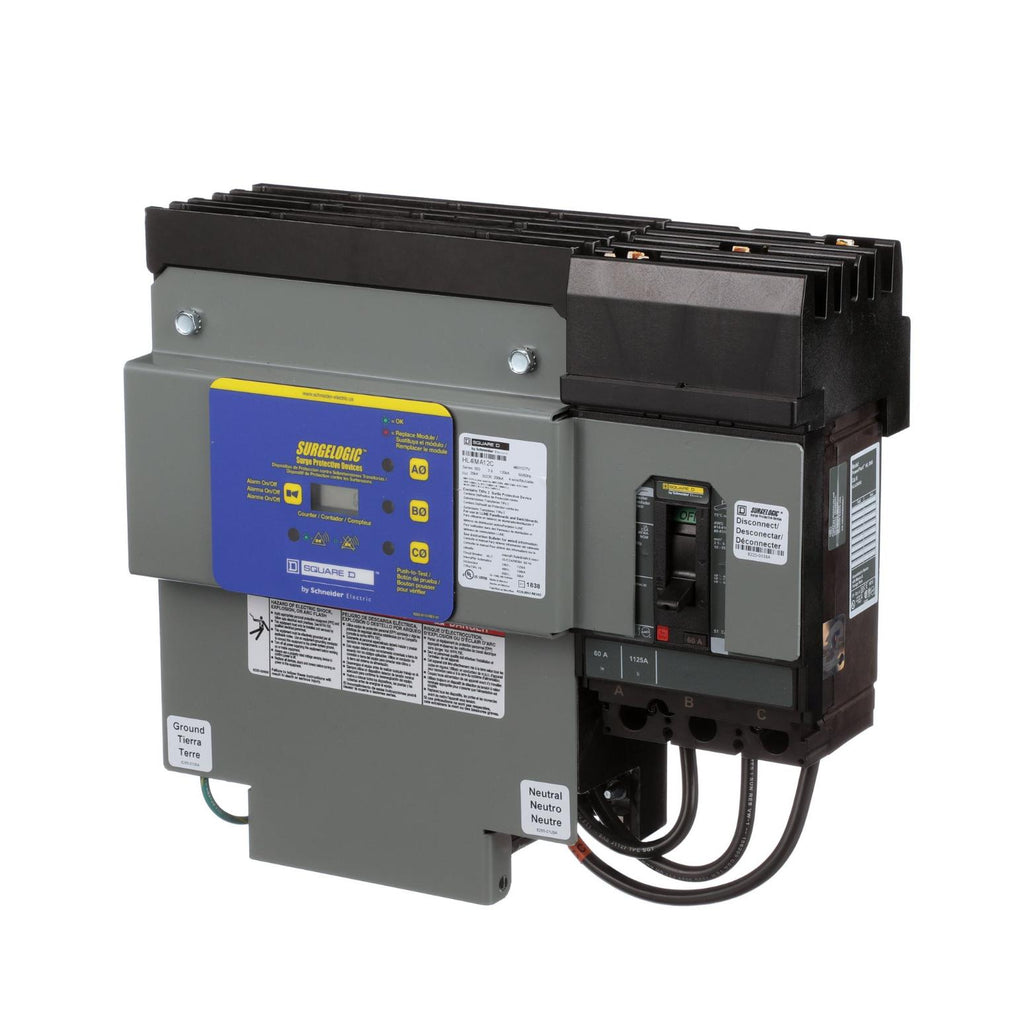

HL4IMA24C1 is a 60A, 480Y/277V, 3-phase, 4-wire surge protection device from Schneider Electric, designed for reliable protection in industrial and commercial power distribution systems.This SurgeLogic HL series device features a 240kA surge current rating, 50kA breaking capacity, and is suitable for I-Line busway mounting. It provides robust protection for sensitive equipment against transient voltage surges and is rated for Type 1 installation.
- Part Number: HL4IMA24C1
- Manufacturer: Schneider Electric
- Rated Current: 60 A
- Voltage Rating: 480Y/277 V AC
- Phases: 3-Phase
- Wiring Configuration: 4-Wire
- Mounting Type: I-Line Busway
- Surge Current: 240 kA
- Breaking Capacity: 50 kA
- Series: SurgeLogic HL
- Enclosure: NEMA 1
- Application: Type 1 SPD
Specifications
- Part Number: HL4IMA24C1
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Circuit Breaker
- Item Subcategory : Parts & Accessories
- Section : Surge Protection
- Family : SURGELOGIC
- Type : HL
- Voltage : 480Y/277VAC
- Amperage : 60
- Phase : 3
- Poles : 3
- Connection : I-Line
- Protection : Thermal Magnetic
- Compatible Frames : HL4
Product Data
- UPC : 785901072157
- GTIN : 00785901072157
- Country of Origin : Mexico
- Dimensions : 12.2 in (308.9 mm) x 13.5 in (341.9 mm) x 5.6 in (142.1 mm) (Height x Width x Depth)
- Weight : 0.025
- Standards : UL 1449:ed. 3, CSA C22.2 No 8:1986, UL 96A:ed. 12, UL 489:ed. 11, CSA C22.2 No 5-09
- Certification : UL, CSA, NEMA
- Wire Size : 6 AWG
