HL4IMA12C - Square D 60A 3-Pole Surge Protection Device 480Y/277VAC Surgelogic

HL4IMA12C

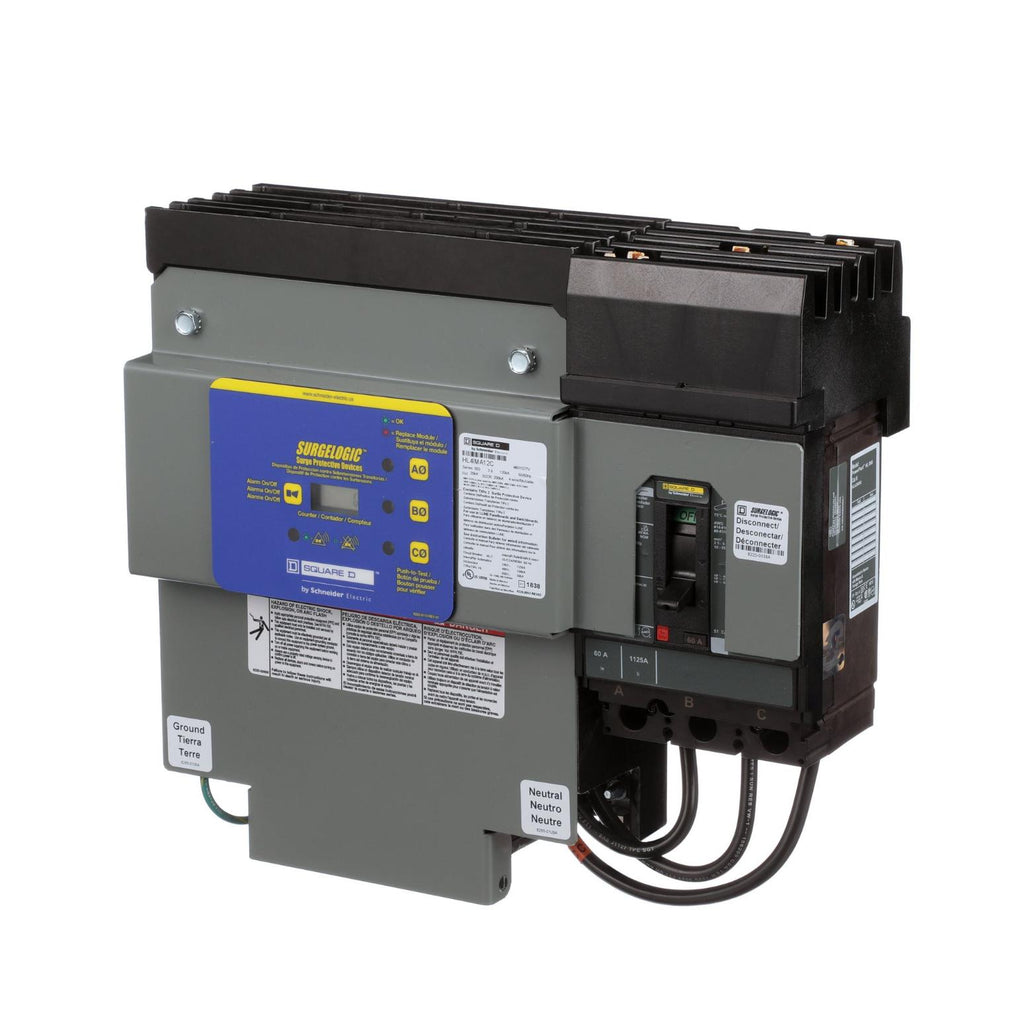

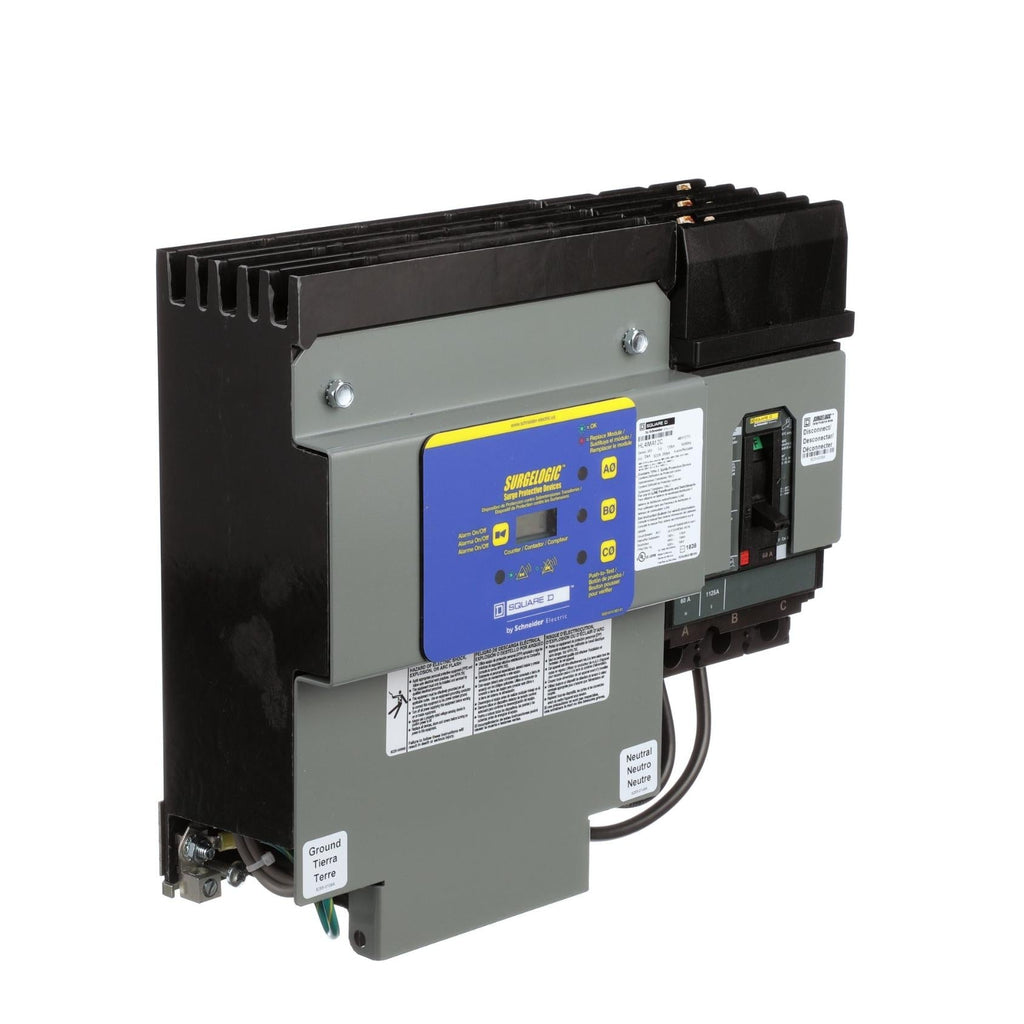

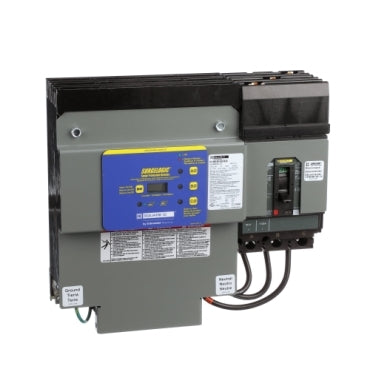

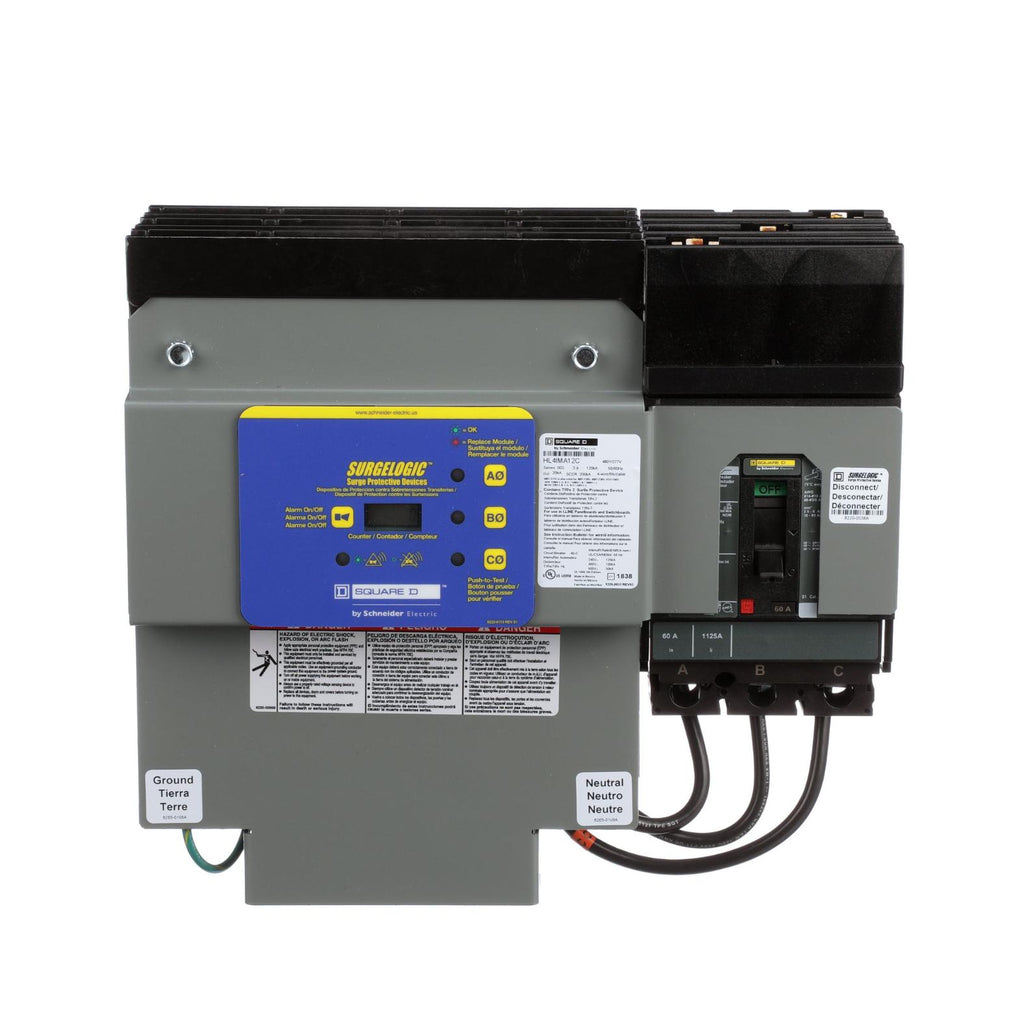

HL4IMA12C is a 3-pole surge protection device designed for 480Y/277VAC applications, providing reliable surge suppression for commercial and industrial power systems. This Square D Surgelogic device features a 60A current rating, 120kA surge current rating, and a 200kA SCCR for robust protection. It is a 4-wire, externally mounted SPD suitable for service entrance and point-of-use installations. The unit is UL Listed to UL 1449 and complies with NEC Article 285 and CSA 22.2 No. 8-M1986 standards. Easy field mounting and quick installation make it ideal for a wide range of applications.

• Part Number: HL4IMA12C
• Manufacturer: Square D
• Series/Frame: Surgelogic HL4
• Amperage: 60A
• Voltage: 480Y/277VAC
• Poles: 3
• Mounting Type: Externally Mounted
• Interrupt Rating: 200kA SCCR
• Surge Current Rating: 120kA
• Wire Configuration: 4-wire
• Certifications: UL 1449, NEC Article 285, CSA 22.2 No. 8-M1986
• Standards: UL 96A 12th Edition Master Label

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HL4IMA12C
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Parts & Accessories
• Section : Surge Protection
• Family : SURGELOGIC
• Type : HL
• Voltage : 480Y/277VAC
• Amperage : 60
• Phase : 3
• Poles : 3
• Compatible Frames : HL4

Product Data

• UPC : 785901691211
• GTIN : 00785901691211
• Country of Origin : Mexico
• Dimensions : 12.2 in (308.9 mm) x 13.5 in (341.9 mm) x 5.6 in (142.1 mm) (Height x Width x Depth)
• Weight : 22.187
• Standards : UL 1449:ed. 3, UL 1283:ed. 5, CSA C22.2 No 8:1986, UL 96A:ed. 12, UL 489:ed. 11, CSA C22.2 No 5-09
• Certification : UL, CSA, NEMA
• Wire Size : 6 AWG
