HJM36100 - Square D 100 Amp 600V 3 Pole PowerPact H Molded Case Circuit Breaker Thermal Magnetic Trip

HJM36100

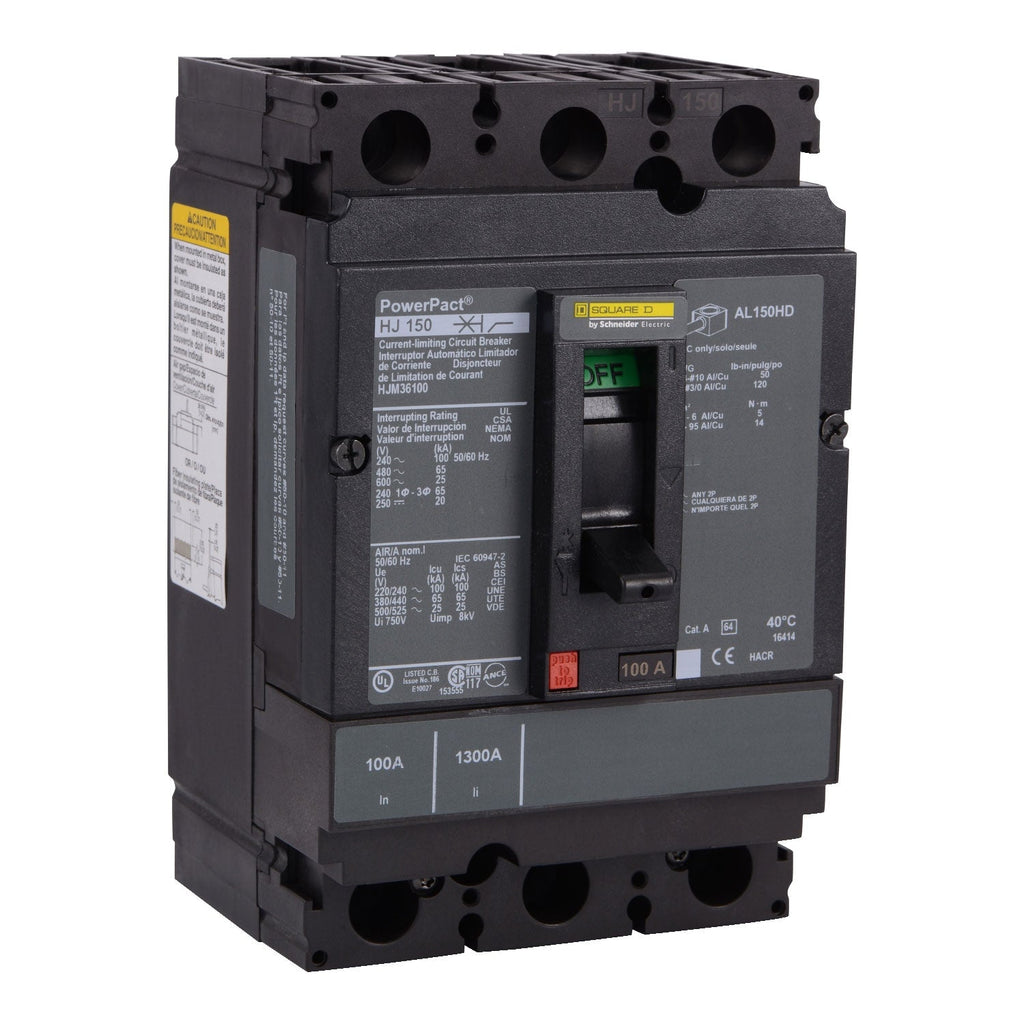

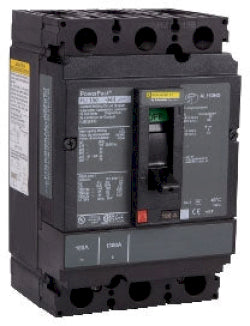

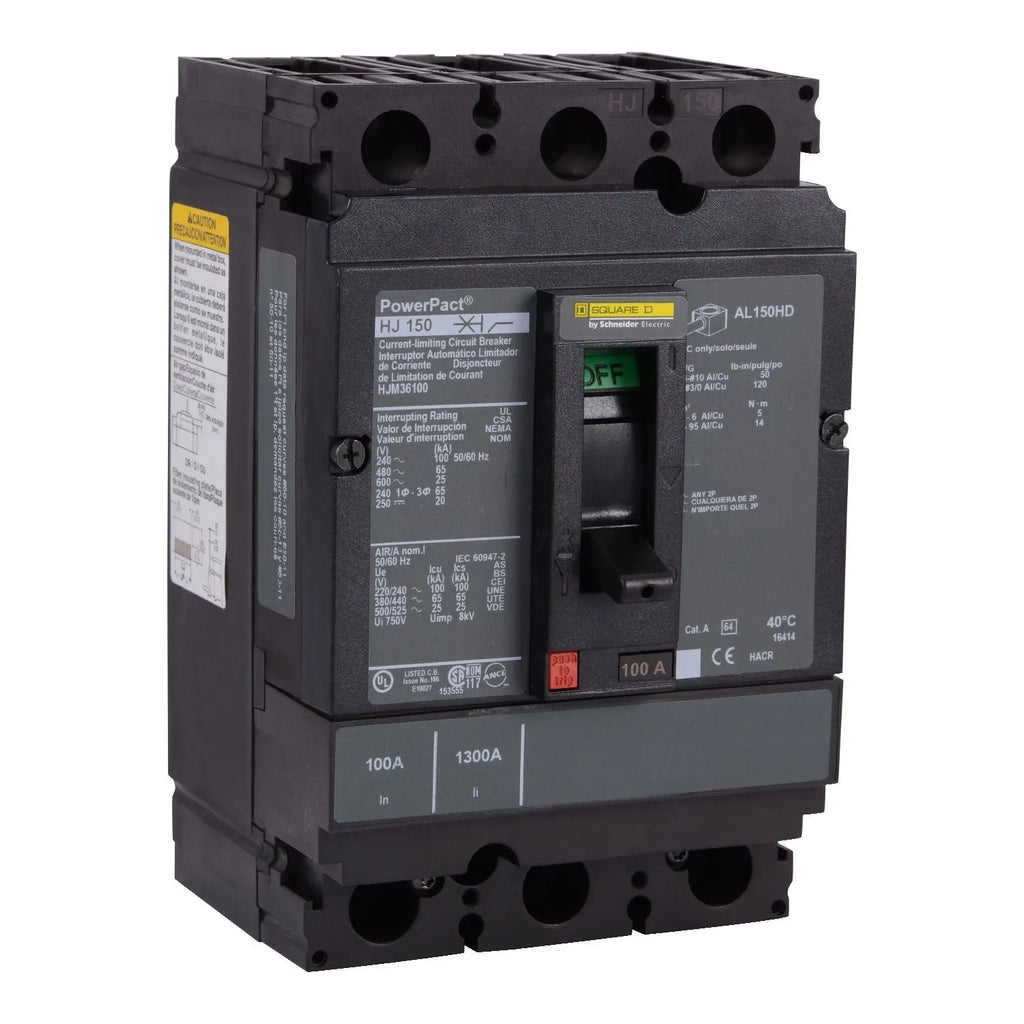

HJM36100 is a 3 pole, 100 amp, 600 volt molded case circuit breaker from Square D's PowerPact H series with thermal magnetic trip protection.The HJM36100 features a unit mount design with a toggle actuator, feed-thru connection type, and is rated for 100kA interrupt at 240VAC and 65kA at 480VAC. It supports line and load side lug connections for wire sizes AWG 14 to 3/0 aluminum or copper. Certified to UL, CSA, CE, IEC, NOM, and NEMA standards, it is suitable for industrial and commercial applications requiring reliable circuit protection.

Key Specifications
• Amperage: 100 A
• Voltage Rating: 600/690 VAC
• Poles: 3
• Series/Frame: PowerPact H / HJM Frame
• Trip Unit: Thermal Magnetic (Long Time and Instantaneous)
• Interrupt Rating: 100kA at 240VAC, 65kA at 480VAC
• Mounting Type: Unit Mount
• Connection Type: Feed-Thru, Line and Load Side Lug
• Wire Size Range: AWG 14 to 3/0 Aluminum/Copper
• Actuator Type: Toggle
• Certifications: UL, CSA, CE, IEC, NOM, NEMA
• Operating Temperature: -25 to 70 °C

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HJM36100
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : HJM
• Voltage : 600
• Amperage : 100
• Phase : 3
• Poles : 3
• AIC rating : 65kA@480V
• Connection : Bolt-On
• Functions : Long Time and Instantaneous
• Frame Size : H Frame
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Thermal Magnetic

Product Data

• UPC : 785901636663
• GTIN : 00785901636663
• Country of Origin : Mexico
• Dimensions : 6.4 in (163 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
• Weight : 5
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 14...AWG 3/0 aluminium/copper terminal
