HJL36080 - Square D 80 Amp 600 Volt 3 Pole Molded Case Circuit Breaker PowerPact H Frame Feed-Thru Mounting

HJL36080

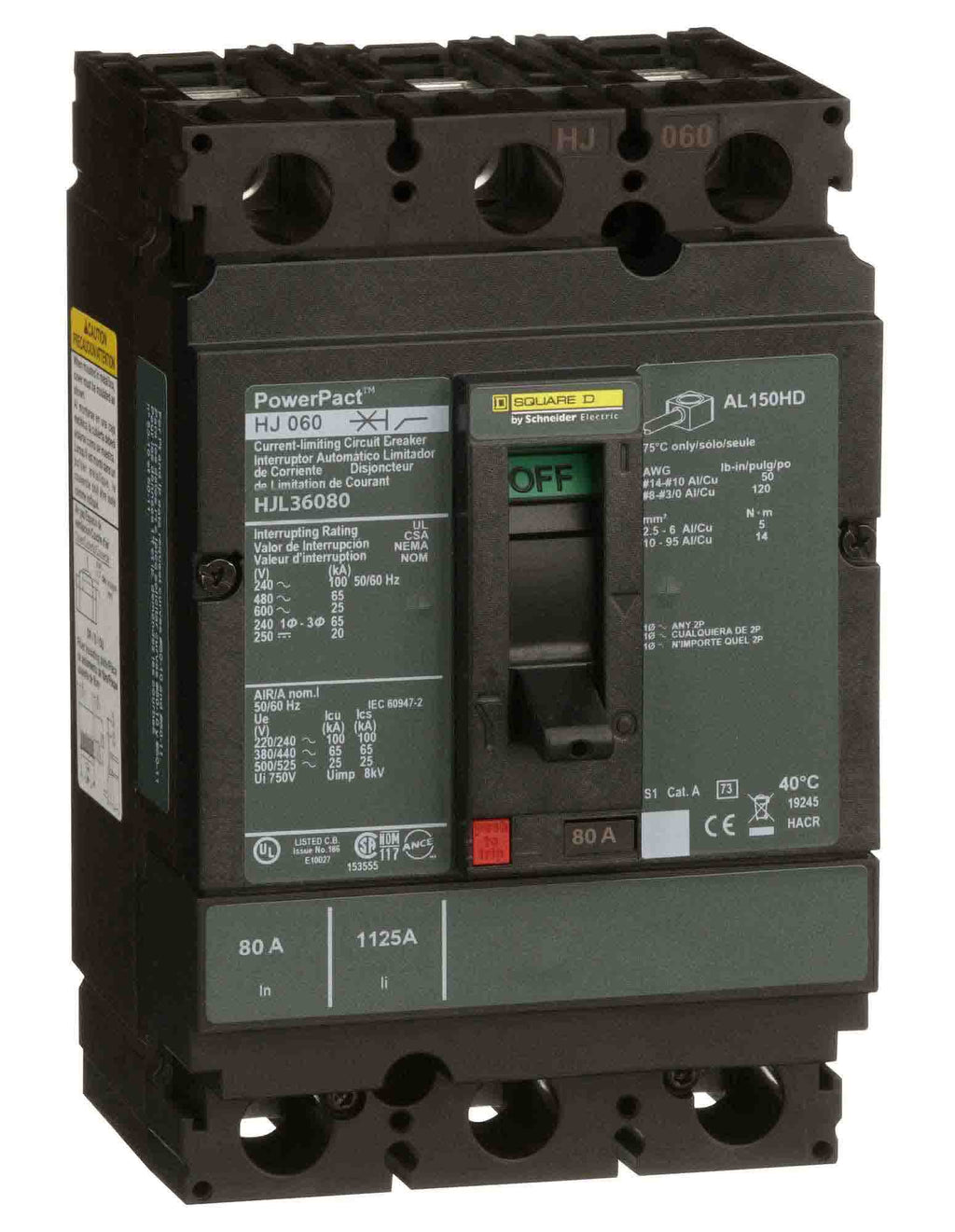

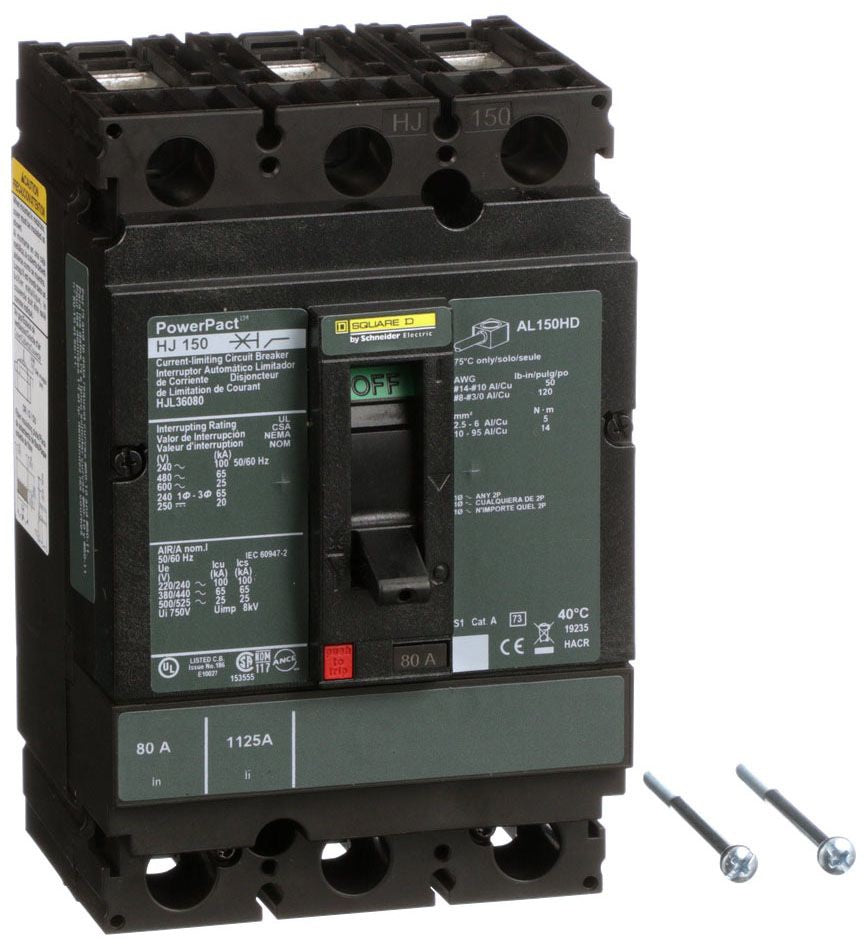

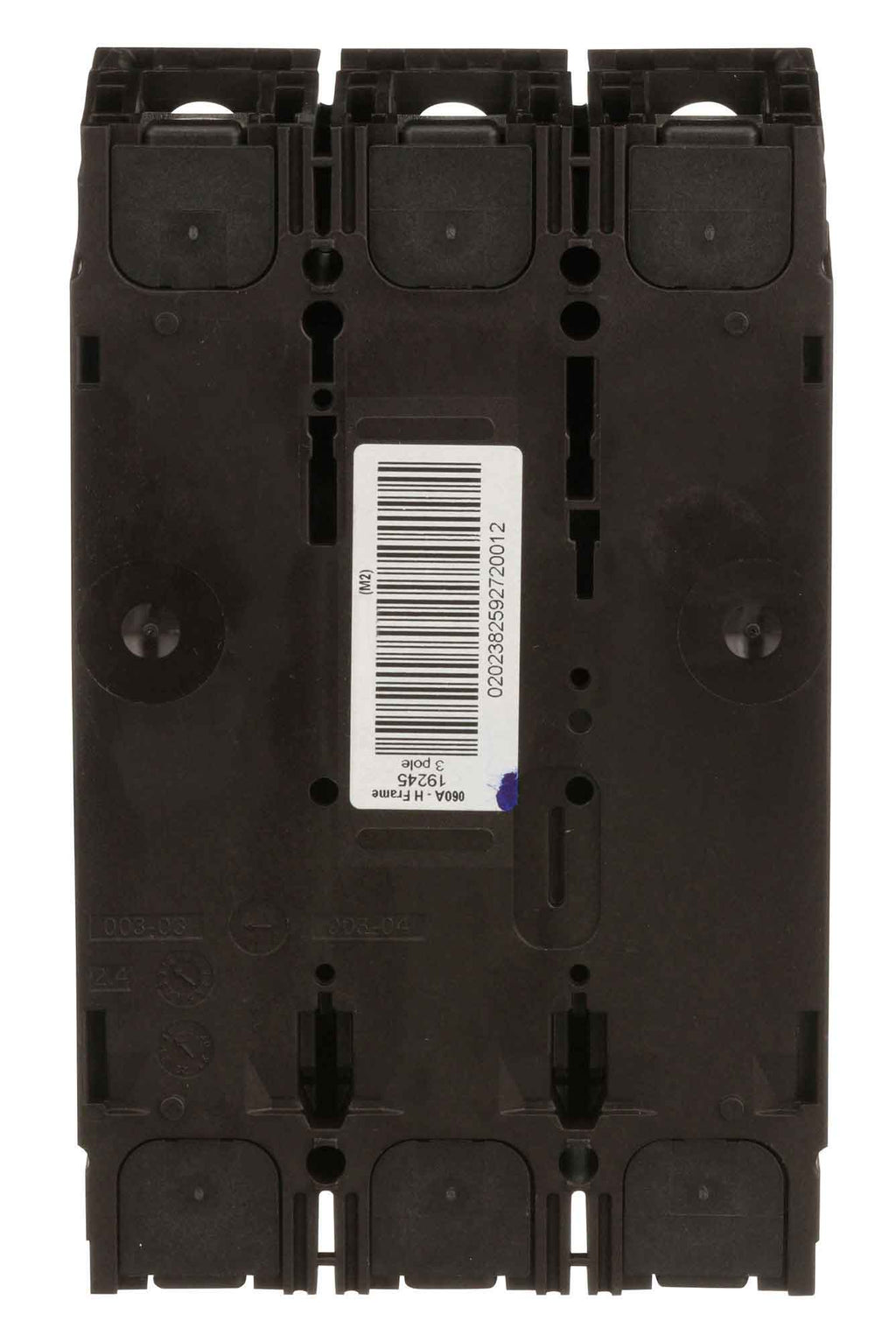

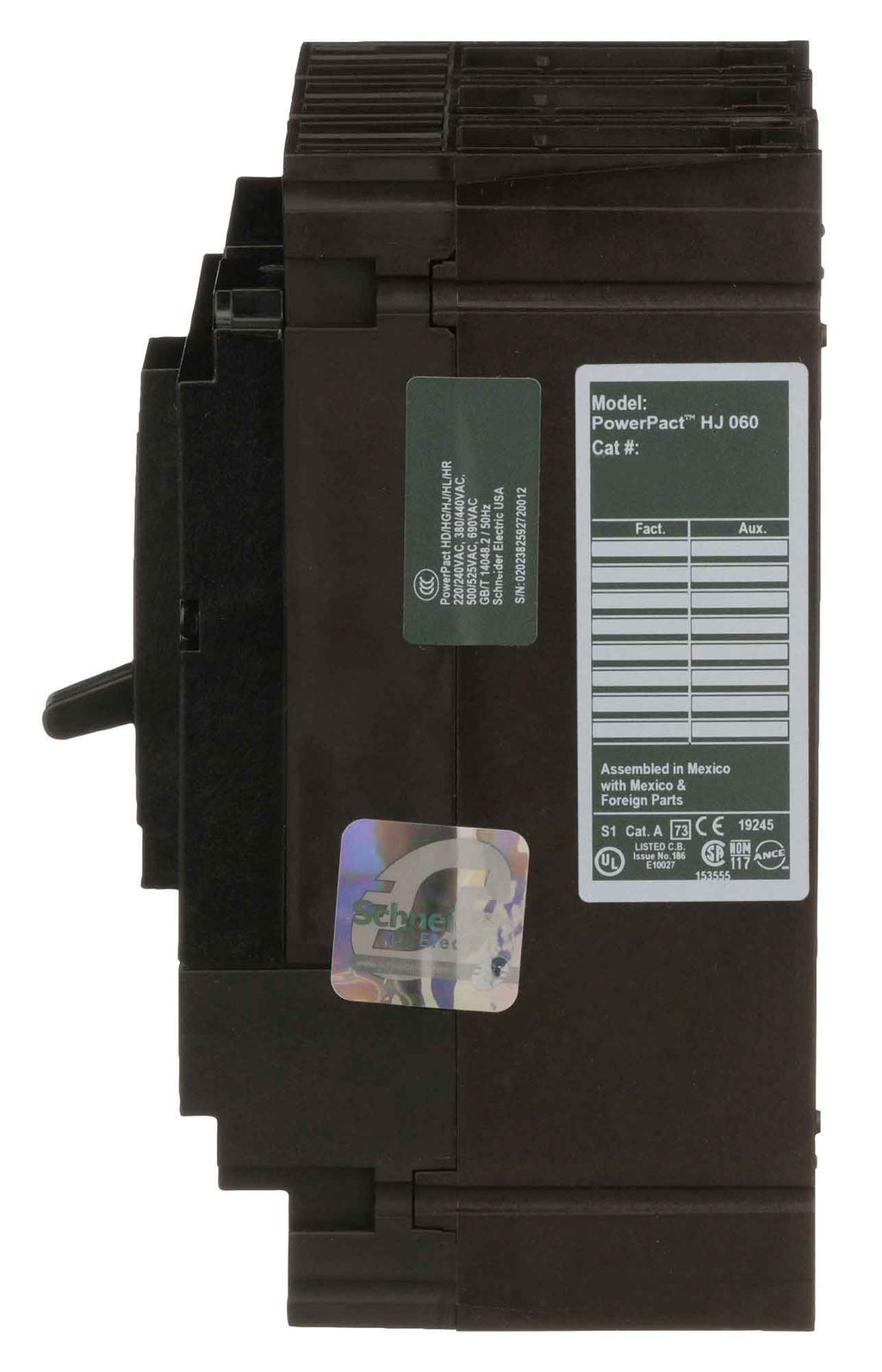

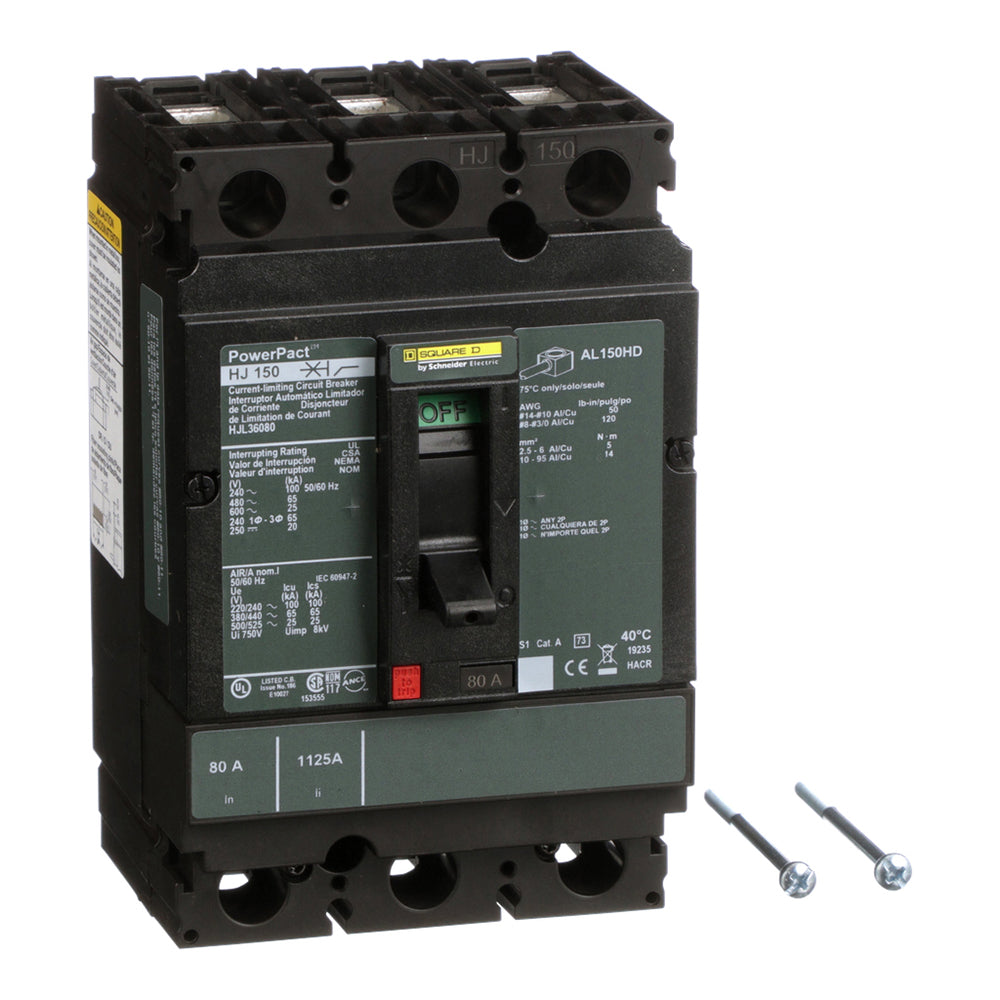

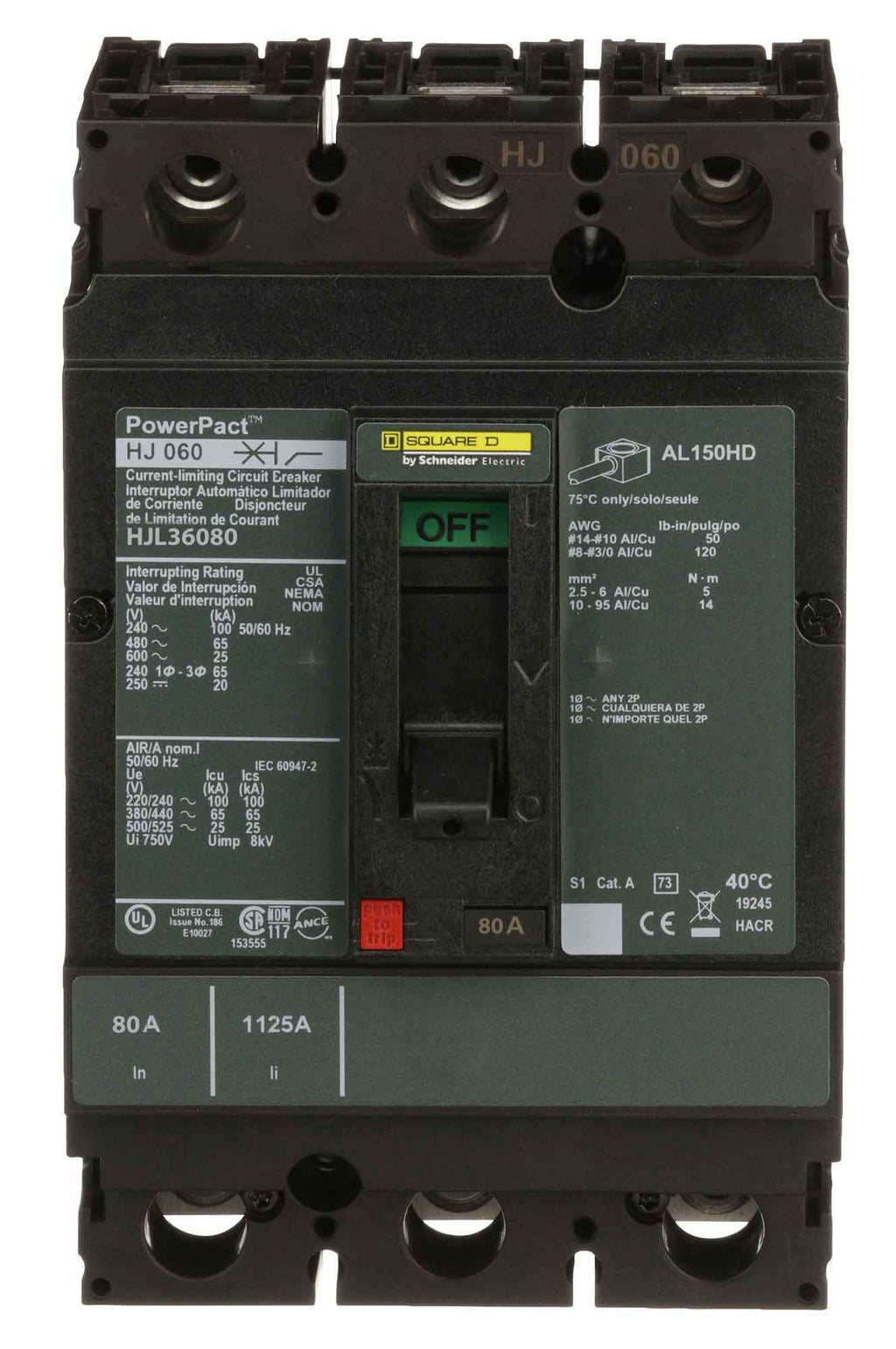

HJL36080 is a Square D 80 Amp, 3 Pole, 600 Volt molded case circuit breaker from the PowerPact H frame series with feed-thru mounting.This thermal magnetic circuit breaker features a 65kA interrupt rating at 480V and is designed for reliable protection in three-phase electrical systems.

• Manufacturer: Square D
• Part Number: HJL36080
• Amperage: 80 Amps
• Voltage Rating: 600 Volts AC
• Poles: 3 Pole
• Frame Type: PowerPact H
• Mounting Type: Feed-Thru
• Interrupt Rating: 65kA at 480V AIC
• Trip Unit: Thermal Magnetic
• Phase: 3 Phase
• Certifications: UL 489, ANSI C37, NETA compliant

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HJL36080
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : HJL
• Voltage : 600
• Amperage : 80
• Phase : 3
• Poles : 3
• AIC rating : 65kA@480V
• Connection : Feed-Thru
• Functions : LI - Long-Time and Instantaneous Trip
• Terminal Connection : Lug
• Frame Size : H
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 14 AWG (Cu/Al) Max. Wire Size 3/0 AWG (Cu/Al)
• Protection : Thermal Magnetic

Product Data

• UPC : 785901623205
• GTIN : 00785901623205
• Country of Origin : Mexico
• Dimensions : 6.4 in (163 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
• Weight : 4.09
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 14...AWG 3/0 aluminium/copper terminal
