HJL36045 - Square D 45A 600VAC 3-Pole PowerPact H Thermal Magnetic Circuit Breaker

HJL36045

HJL36045 is a Square D PowerPact H series 3-pole molded case circuit breaker rated for 45 amps and 600 volts AC. It provides reliable thermal magnetic protection for overload and short circuit conditions.This circuit breaker features a 25kA interrupt rating at 600VAC, 80% continuous rating, and is designed for unit mount applications. It complies with UL, CSA, IEC 60947-2, and other industry standards, ensuring safety and performance in industrial and commercial electrical systems.

• Amperage: 45 Amps
• Voltage Rating: 600/690 VAC
• Poles: 3
• Interrupt Rating: 25kA @ 600VAC
• Trip Unit: Thermal Magnetic
• Mounting Type: Unit Mount
• Series/Frame: PowerPact H
• Certifications: UL 498, CSA C22.2 No. 5-02, IEC 60947-2, CCC/CE Marked, NOM Certified

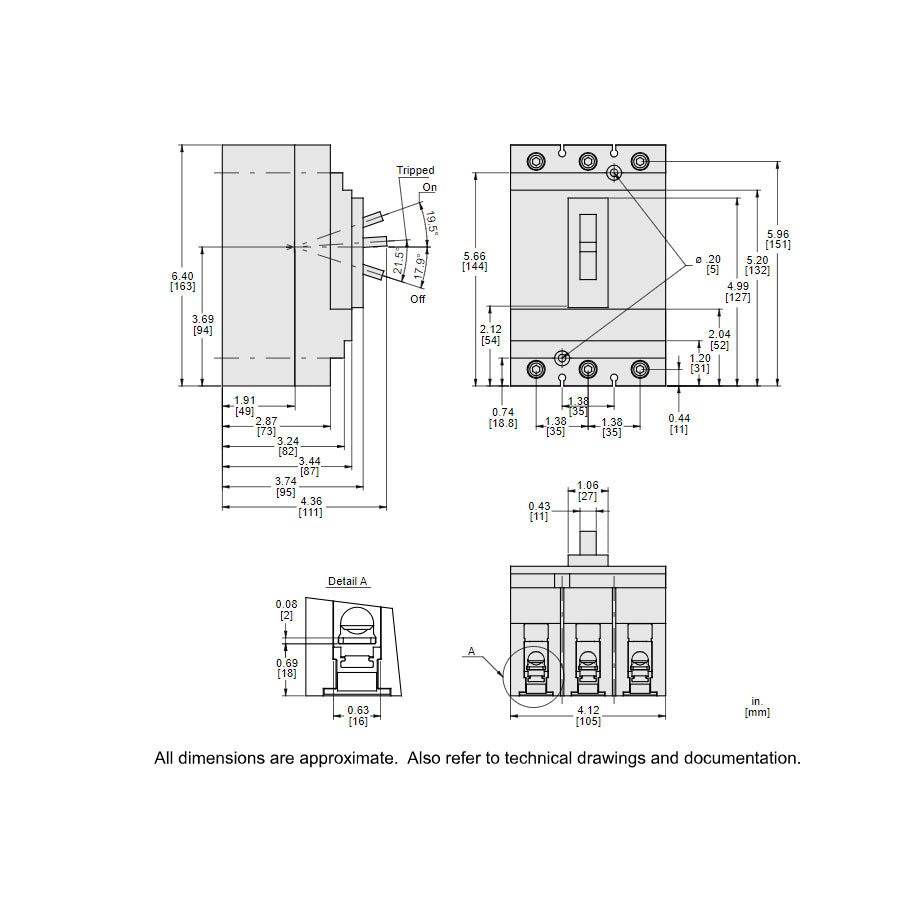

• Dimensions: 6.4" H x 4.12" W x 4.36" L
• Weight: Approx. 4.85 lbs

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HJL36045
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : HJL
• Voltage : 600
• Amperage : 45
• Phase : 3
• Poles : 3
• AIC rating : 65kA@480V
• Connection : Feed-Thru
• Functions : LI - Long-Time and Instantaneous
• Terminal Connection : Lug
• Frame Size : H
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 14 AWG (Cu/Al) Max. Wire Size 3/0 AWG (Cu/Al)
• Protection : Thermal Magnetic

Product Data

• UPC : 785901676980
• GTIN : 00785901676980
• Country of Origin : Mexico
• Dimensions : 6.4 in (163 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
• Weight : 4.145
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 14...AWG 3/0 aluminium/copper terminal
