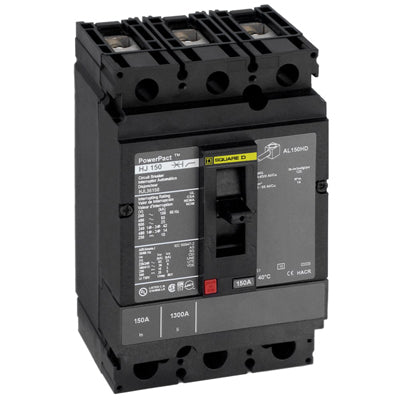

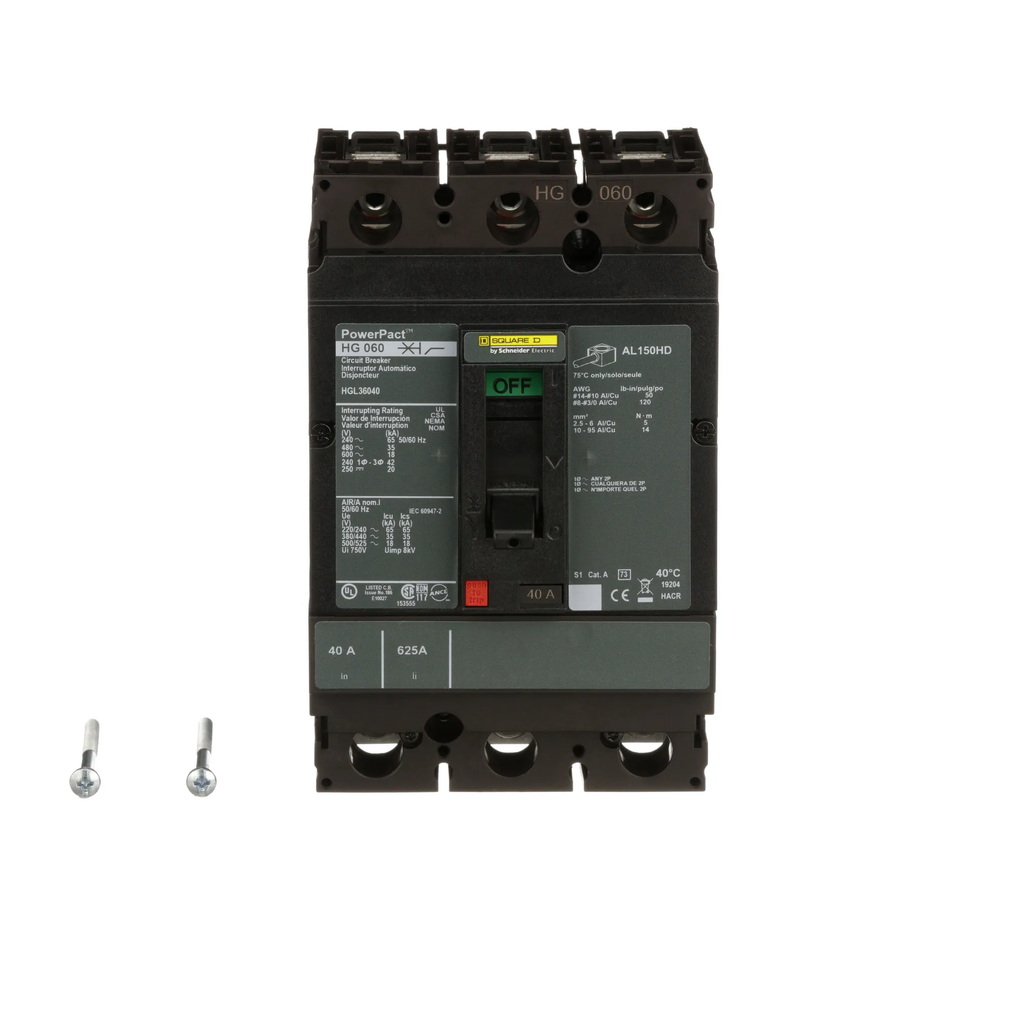

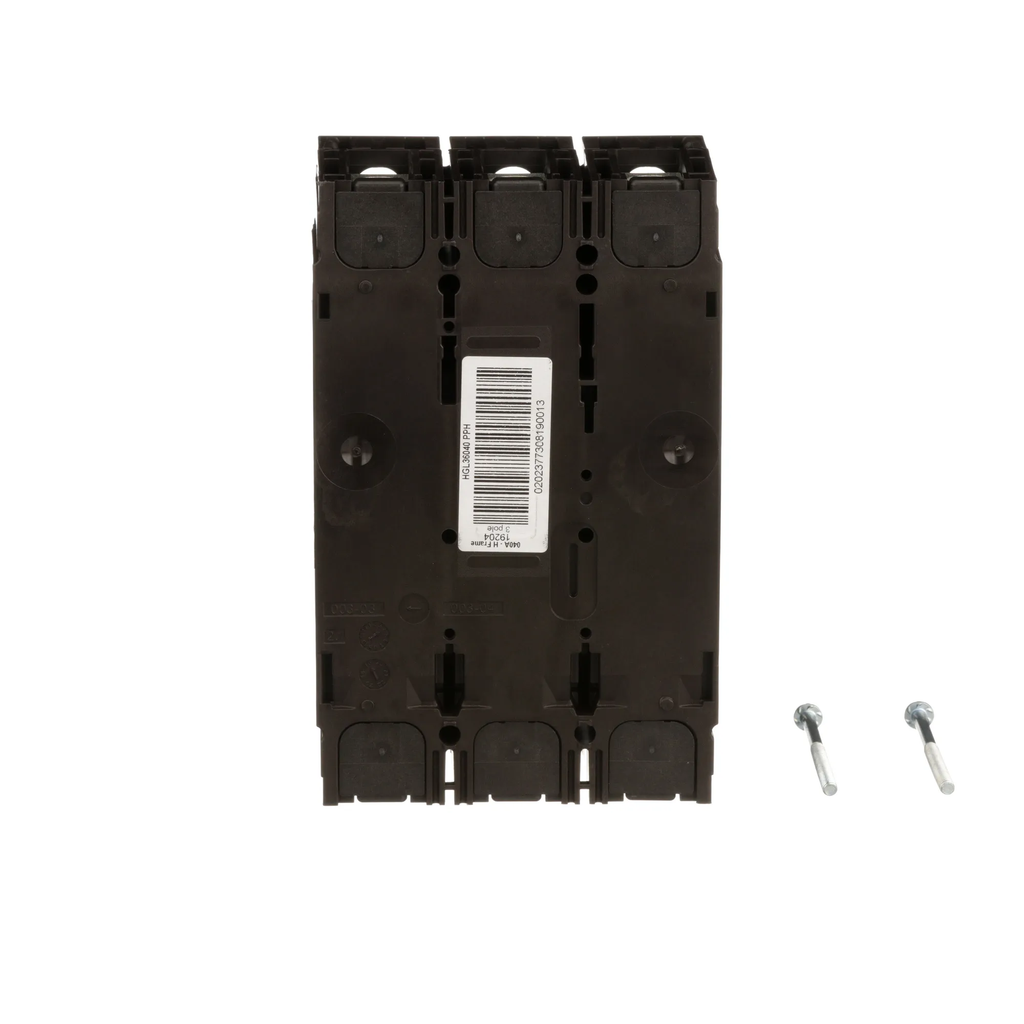

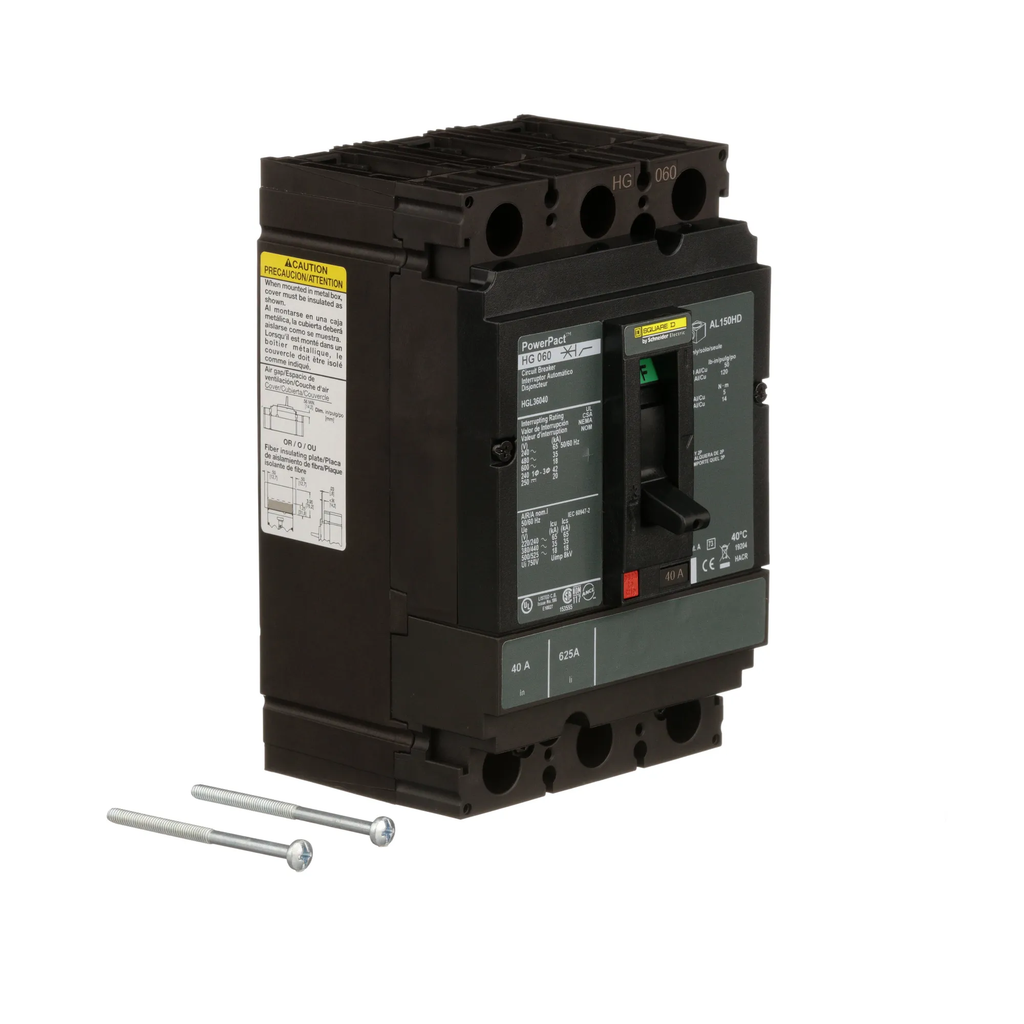

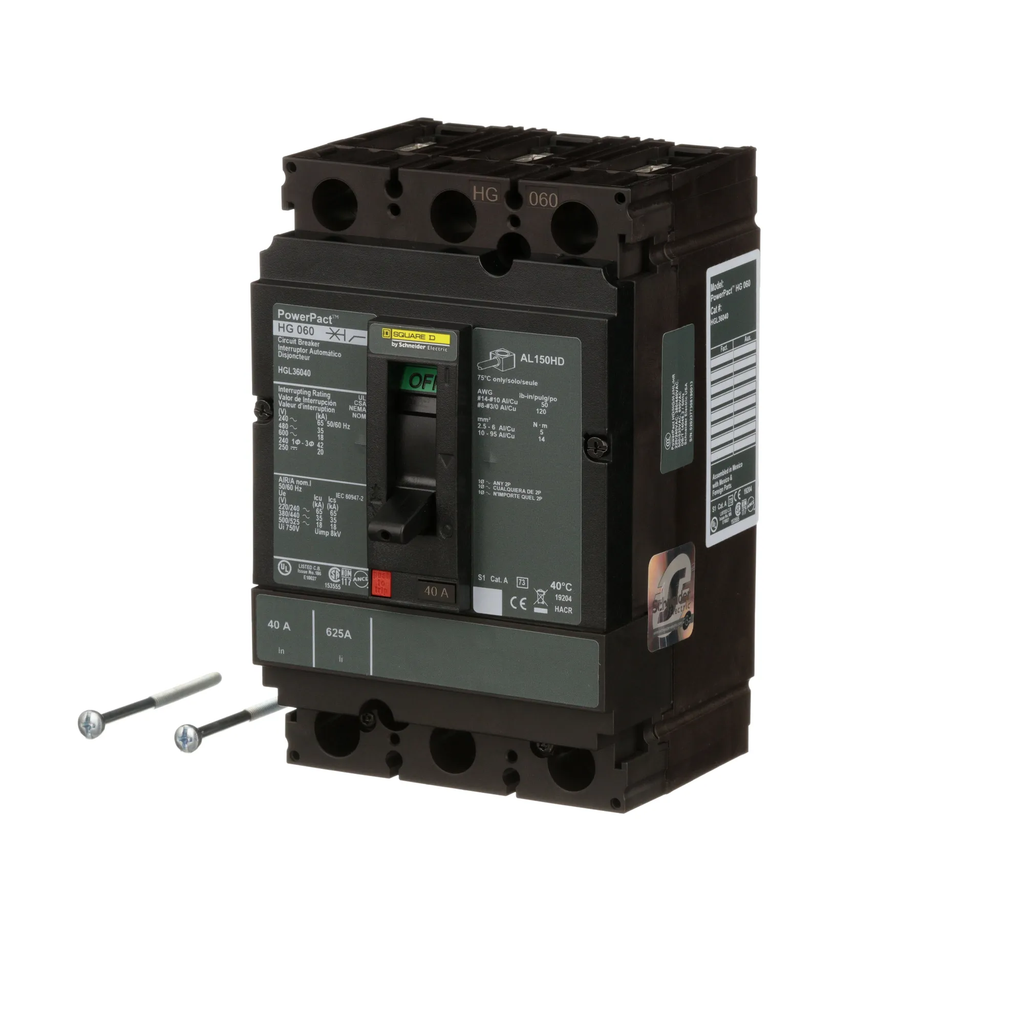

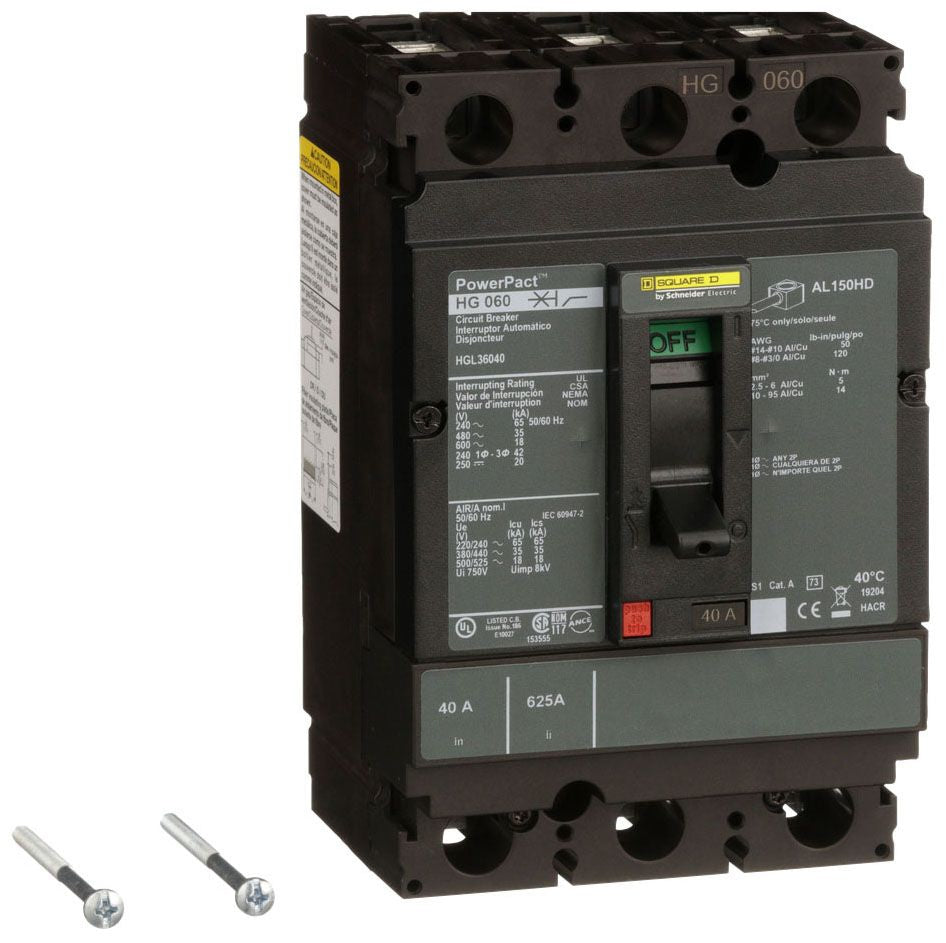

HJL36040 - Square D 40A 600V 3P Molded Case Circuit Breaker PowerPact H Frame

HJL36040

HJL36040 is a Square D PowerPact H Frame molded case circuit breaker rated for 40 amps and 600 volts with 3 poles.This thermal-magnetic trip unit breaker features a 65 kA interrupt rating at 480 V AC, 25 kA at 600 V AC, 100 kA at 240 V AC, and 20 kA at 250 V DC. It is designed for unit mount installation with line and load lug connections supporting wire gauges from AWG 14 to AWG 3/0 (aluminum/copper). The breaker has a magnetic hold current of 400 A and trips magnetically at 850 A. It is UL 489 listed and suitable for industrial and commercial power distribution applications.

Key Specifications
• Amperage: 40 A
• Voltage: 600 V AC / 250 V DC
• Number of Poles: 3
• Interrupt Rating: 65 kA @ 480 V AC, 25 kA @ 600 V AC
• Frame Type: PowerPact H
• Trip Unit: Thermal-magnetic
• Mounting Type: Unit mount
• Electrical Connection: Line and load lugs
• Wire Gauge Range: AWG 14 to AWG 3/0
• Certifications: UL 489 Listed
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: HJL36040
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : HJL
• Voltage : 600
• Amperage : 40
• Phase : 3
• Poles : 3
• AIC rating : 65kA@480V
• Connection : Feed-Thru
• Functions : LI - Long-Time and Instantaneous Trip
• Terminal Connection : Lug
• Frame Size : H
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 14 AWG (Cu/Al) Max. Wire Size 3/0 AWG (Cu/Al)
• Protection : Thermal Magnetic



Product Data

• UPC : 785901706557
• GTIN : 00785901706557
• Country of Origin : Mexico

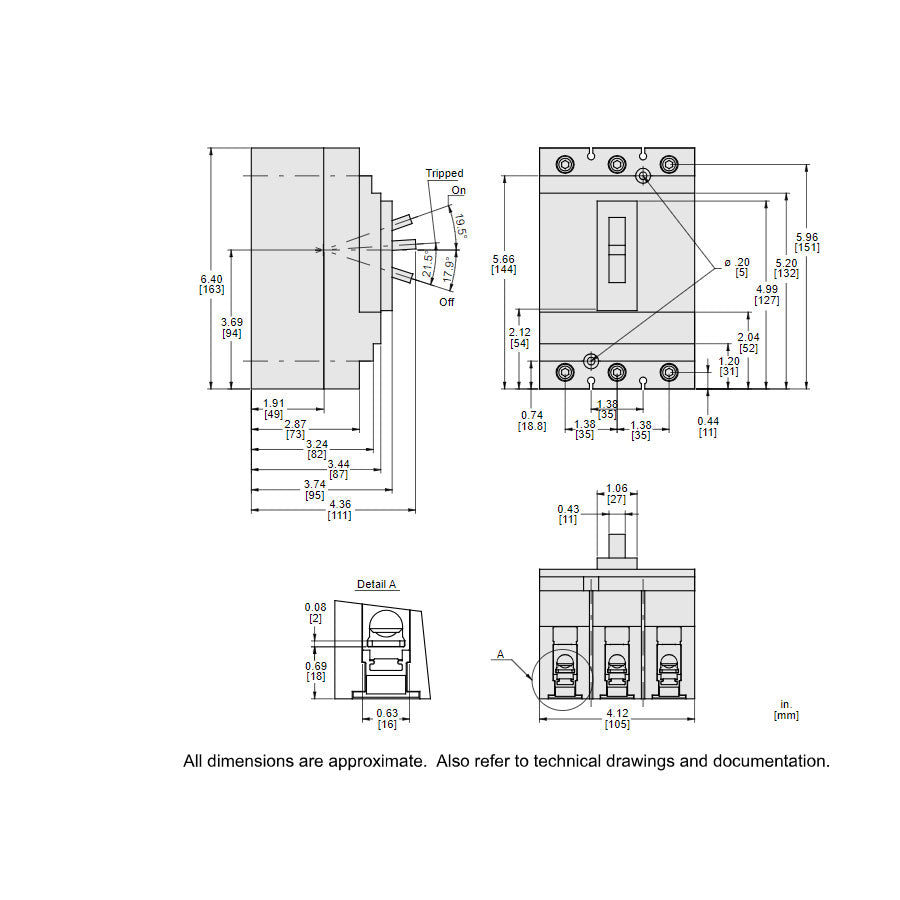

• Dimensions : 6.4 in (163 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
• Weight : 4.169
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 14...AWG 3/0 aluminium/copper terminal
