Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Molded Case
Description
HJL36030M71AA

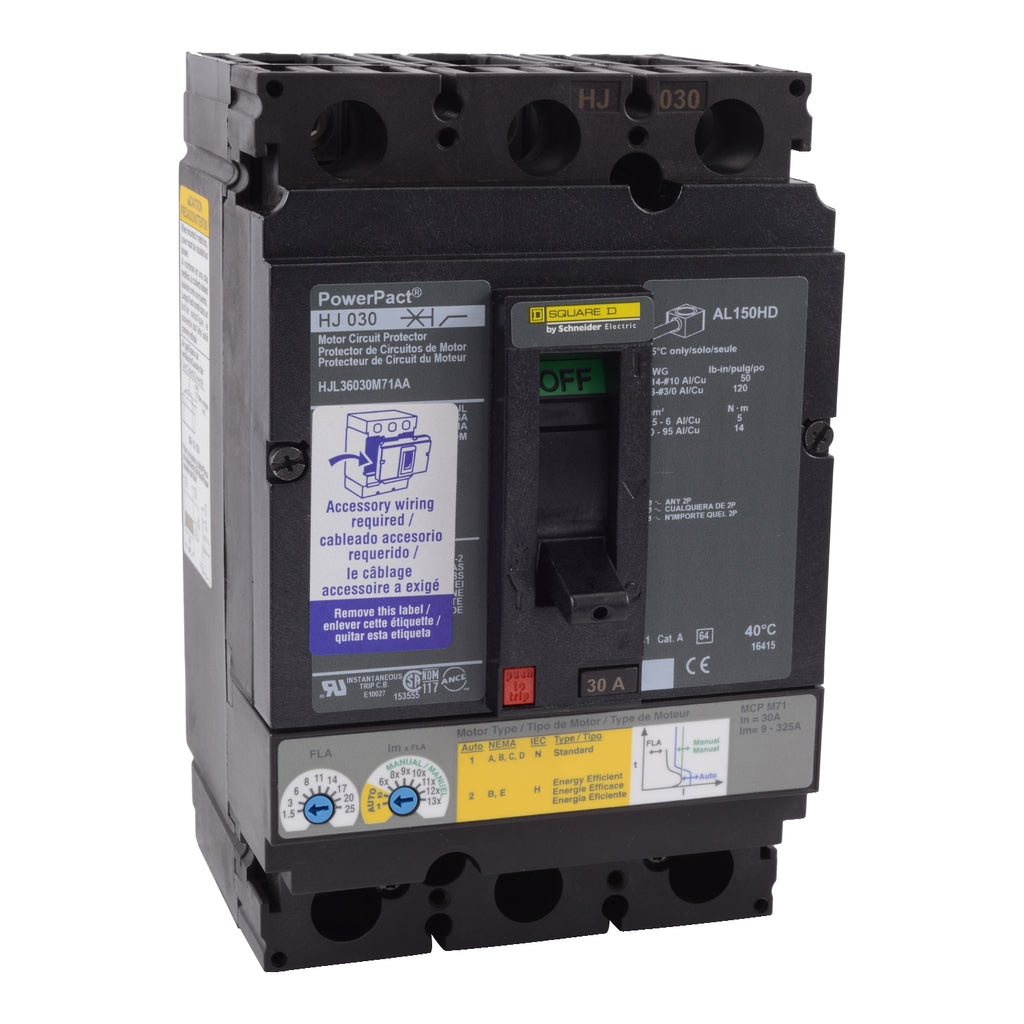

HJL36030M71AA is a Square D 30 Amp, 3 Pole molded case circuit breaker designed for 600 VAC applications with H frame type.This circuit breaker features a magnetic trip unit with instantaneous protection, a 65kA interrupting rating at 480V, and feed-thru connection type. It is UL and CSA certified, suitable for three-phase power distribution, and designed for unit mounting.
- Manufacturer: Square D
- Part Number: HJL36030M71AA
- Amperage: 30A
- Voltage Rating: 600 VAC, 250 VDC
- Poles: 3
- Frame Type: H
- Interrupting Rating: 65kA at 480V
- Trip Unit: Magnetic Instantaneous
- Mounting Type: Unit Mount
- Connection Type: Feed-Thru
- Certifications: UL, CSA
Specifications
- Part Number: HJL36030M71AA
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Voltage : 600
- Amperage : 30
- Phase : 3
- Poles : 3
- AIC rating : 65kA@480V
- Connection : Feed-Thru
- Functions : I - Instantaneous
- Temp Rating : 28-158 °F (-2-70 °C)
- Protection : Magnetic Only
Product Data
- UPC : 785901553342
- GTIN : 00785901553342
- Country of Origin : Mexico
- Dimensions : 6.4 in (163 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
- Weight : 5
- Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
- Certification : UL, CSA, NOM
- Wire Size : AWG 14...AWG 3/0 aluminium/copper terminal
