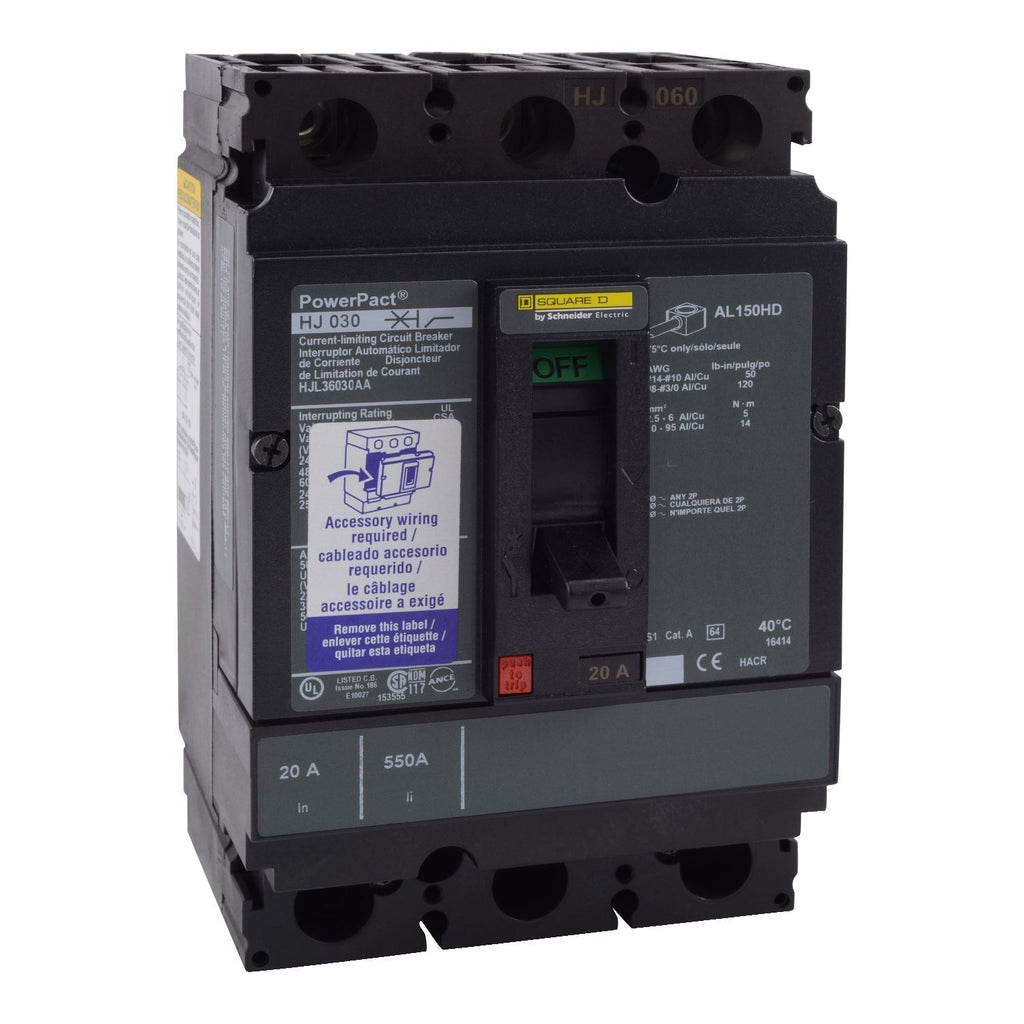

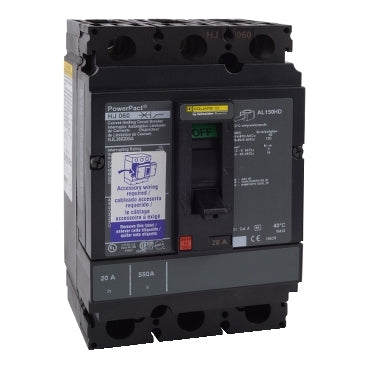

HJL36030AA - Square D 30A 600V 3-Pole Molded Case Circuit Breaker Powerpact H Frame

HJL36030AA

HJL36030AA is a Square D Powerpact H Frame molded case circuit breaker rated for 30 amps and 600 volts with 3 poles.This circuit breaker features a thermal magnetic trip unit, a 65kA interrupt rating at 480V, and is UL listed. It supports line and load lug configurations and is suitable for reverse fed applications. The breaker is designed for unit mounting and offers current limiting protection in a compact 6.42" x 4.09" x 3.39" size.

Key Specifications
• Amperage: 30A
• Voltage: 600V AC / 250V DC
• Poles: 3
• Interrupt Rating: 65kA at 480V
• Series/Frame: Powerpact H Frame
• Trip Unit: Thermal Magnetic
• Mounting Type: Unit Mount
• UL Listed (UL 489)
• Configuration: Line + Load Lugs
• Current Limiting
• Suitable for Reverse Fed Applications

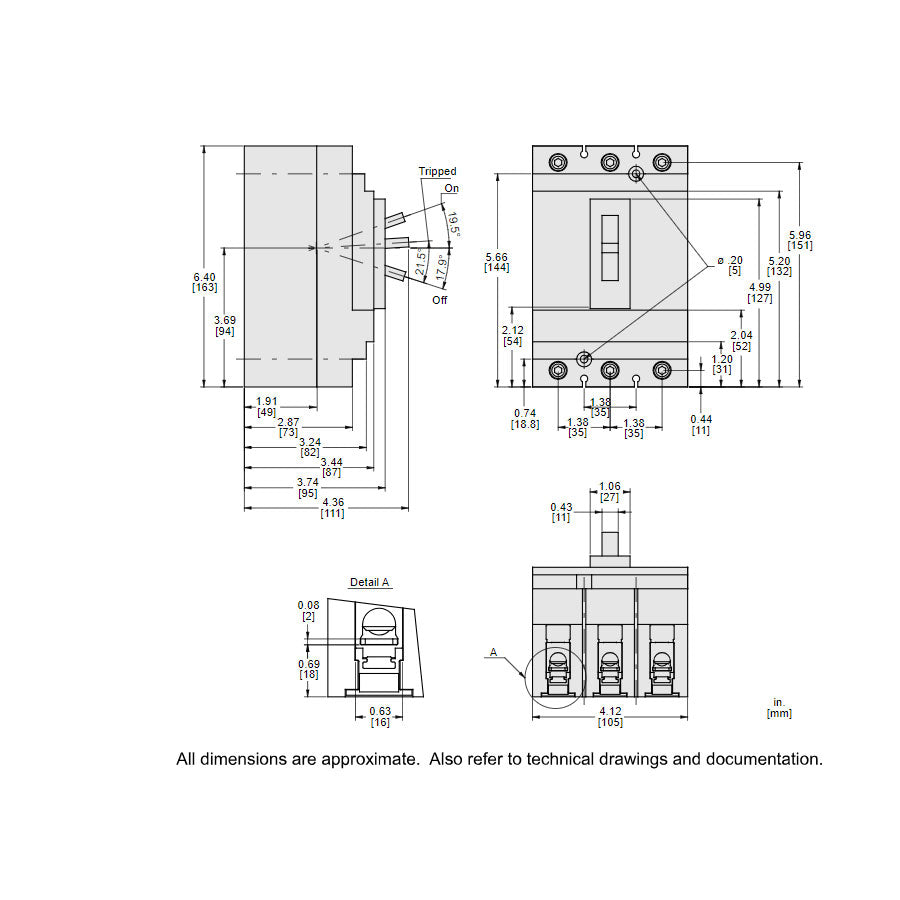

• Dimensions: 6.42" H x 4.09" W x 3.39" D

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HJL36030AA
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : HJL
• Voltage : 600
• Amperage : 30
• Phase : 3
• Poles : 3
• AIC rating : 65kA@480V
• Connection : Feed-Thru
• Functions : LI - Long-Time and Instantaneous
• Frame Size : H Frame
• Temp Rating : 28-158 °F (-2-70 °C)
• Protection : Thermal Magnetic

Product Data

• UPC : 60648611911
• GTIN : 03606486119112
• Dimensions : 6.4 in (163 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
• Weight : 5
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 14...AWG 3/0 aluminium/copper terminal
