Product Info
- Manufacturer:Eaton
- Sub-Category:Molded Case
Description

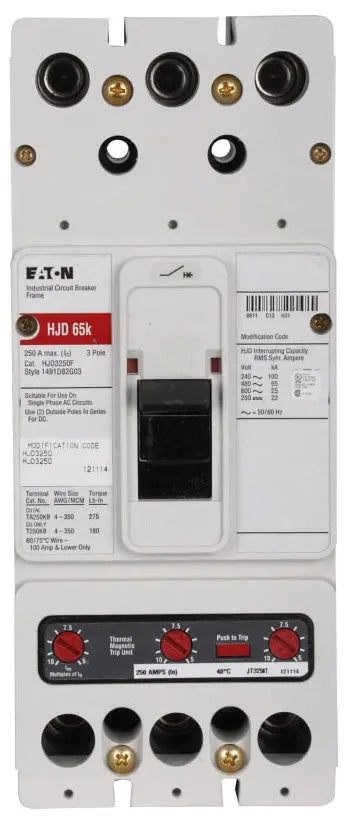

HJD3250KW
HJD3250KW is a 250 amp, 3-pole molded case circuit breaker from Eaton's Series C J-frame lineup designed for reliable power distribution protection.This Eaton HJD3250KW breaker features a fixed thermal and fixed magnetic trip unit, suitable for panel mounting without terminals. It supports voltage ratings of 600 VAC and 250 VDC, with interrupt ratings of 100 kA at 240 VAC and 65 kA at 480 VAC, ensuring high fault current interruption capability.
- Key Specifications
- Amperage Rating: 250 A
- Voltage Rating: 600 VAC, 250 VDC
- Poles: 3
- Frame/Series: Series C, J-frame
- Trip Unit: Fixed thermal, fixed magnetic
- Interrupt Rating: 100 kA @ 240 VAC, 65 kA @ 480 VAC
- Mounting Type: Panel mount without terminals
- Certifications: UL Listed
- Part Number: HJD3250KW
- Manufacturer : Eaton
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Series C
- Type : HJD
- Voltage : 600
- Amperage : 250
- Phase : 3
- Poles : 3
- AIC rating : 65kA@480V
- Connection : Bolt-On
- Functions : NA - No Overcurrent Protection
- Frame Size : J Frame
- Protection : Non-Automatic
- UPC : 786679010716
- GTIN : 00786679010716
- Country of Origin : Dominican Republic
- Dimensions : 4.06 in x 4.13 in x 4.13 in (Length/Depth x Height x Width)
- Weight : 12.5
- Certification : UL Listed
