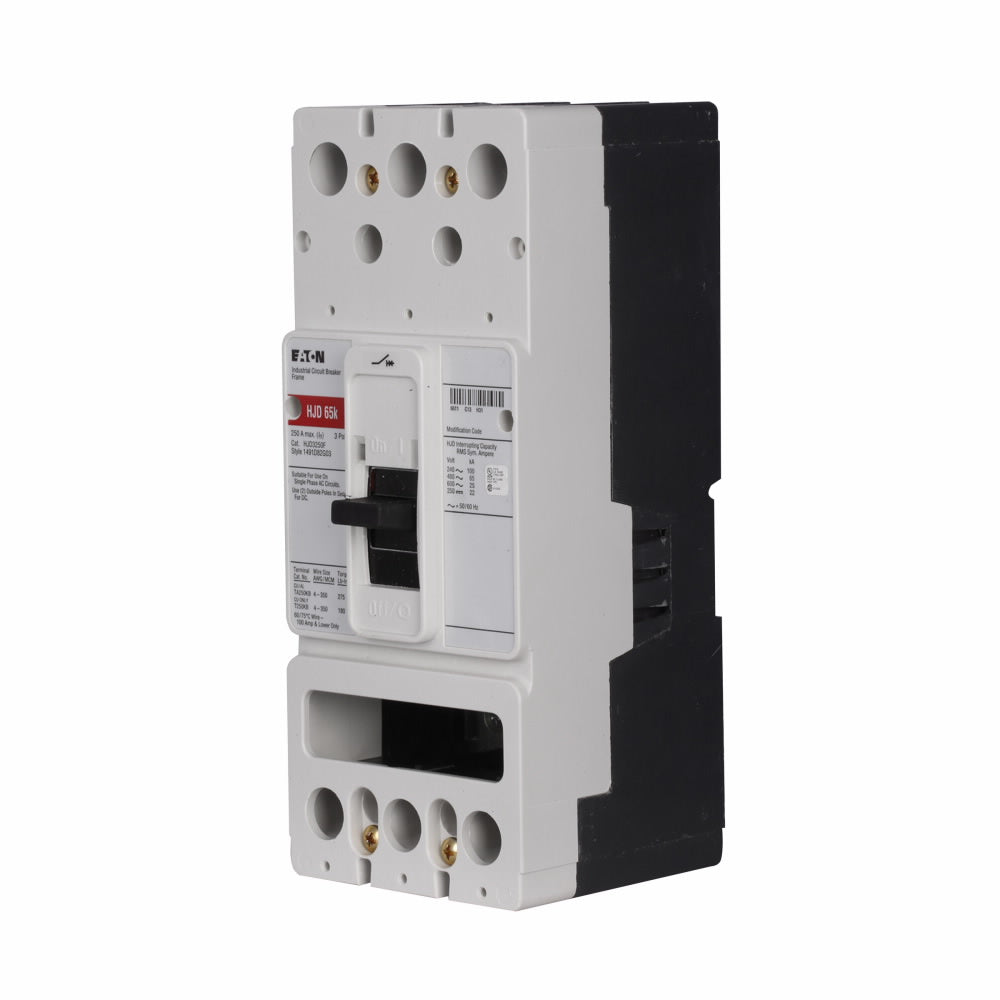

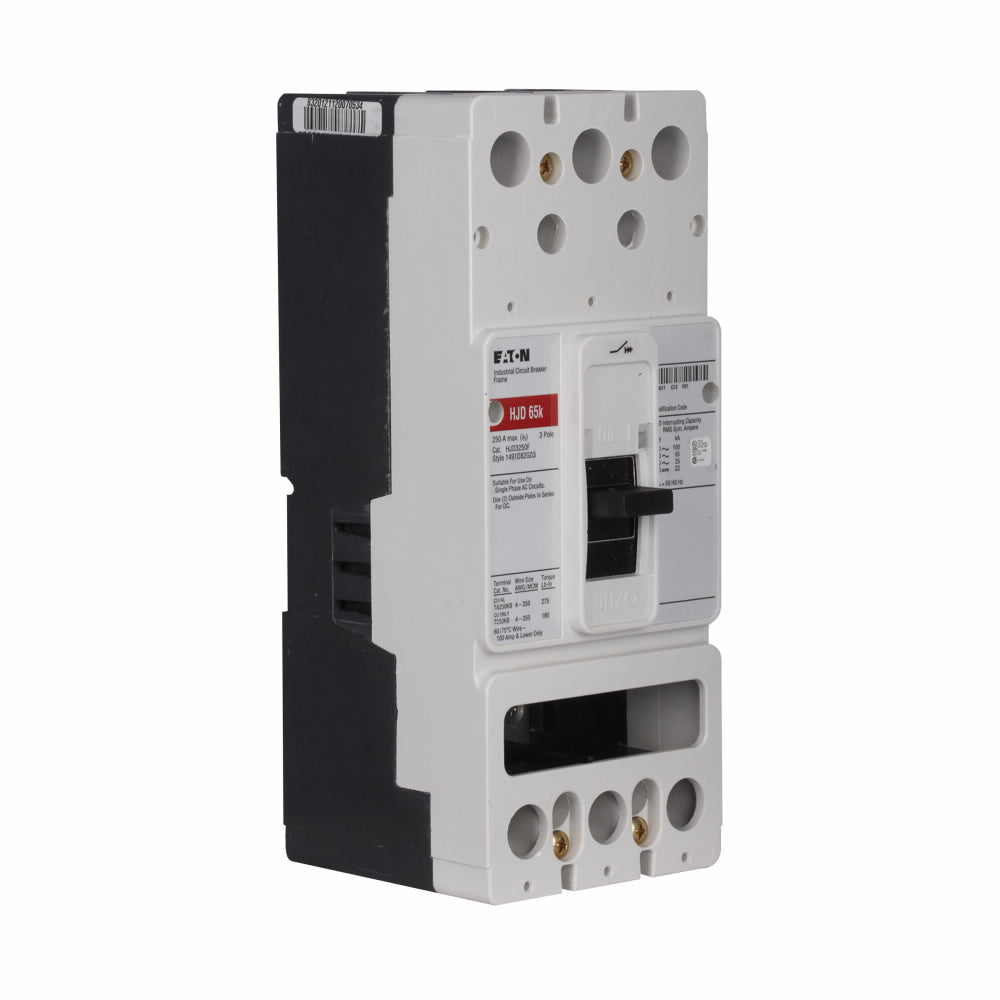

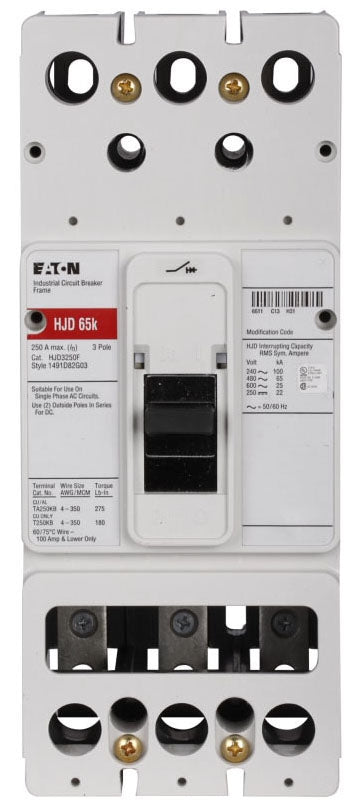

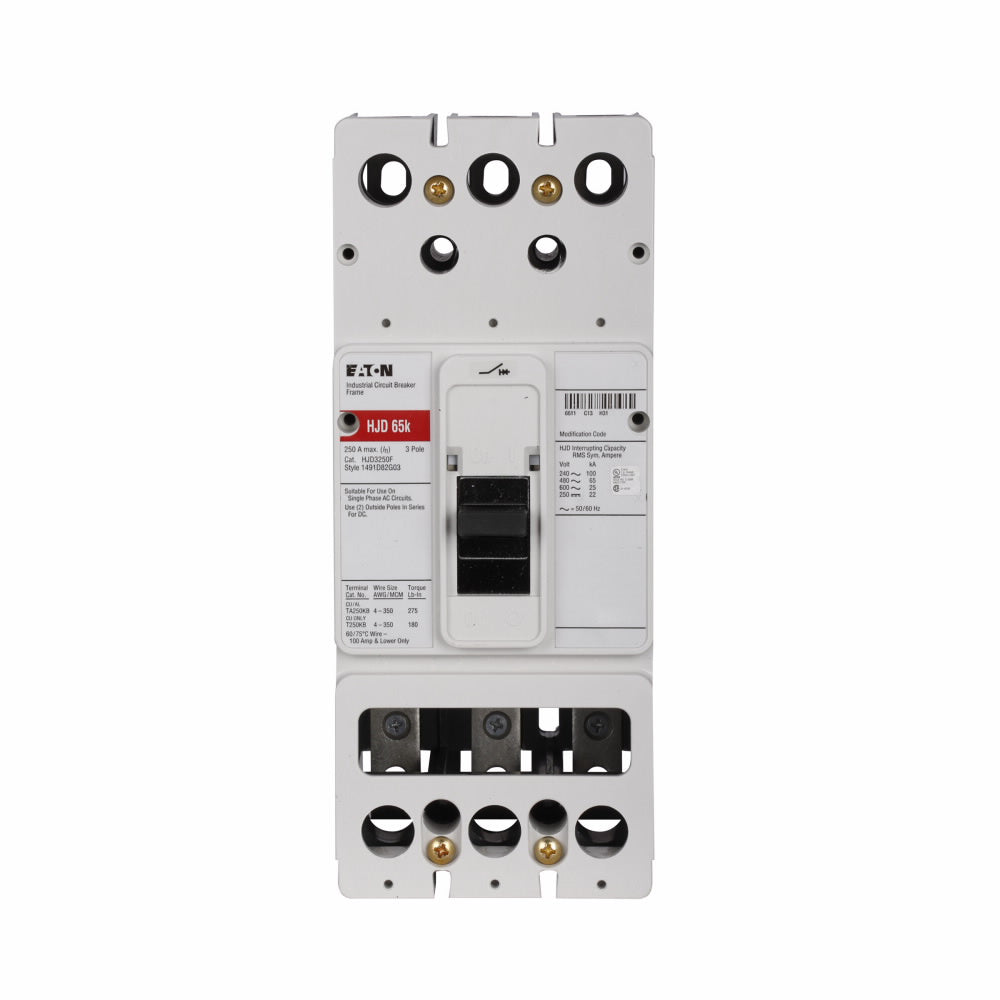

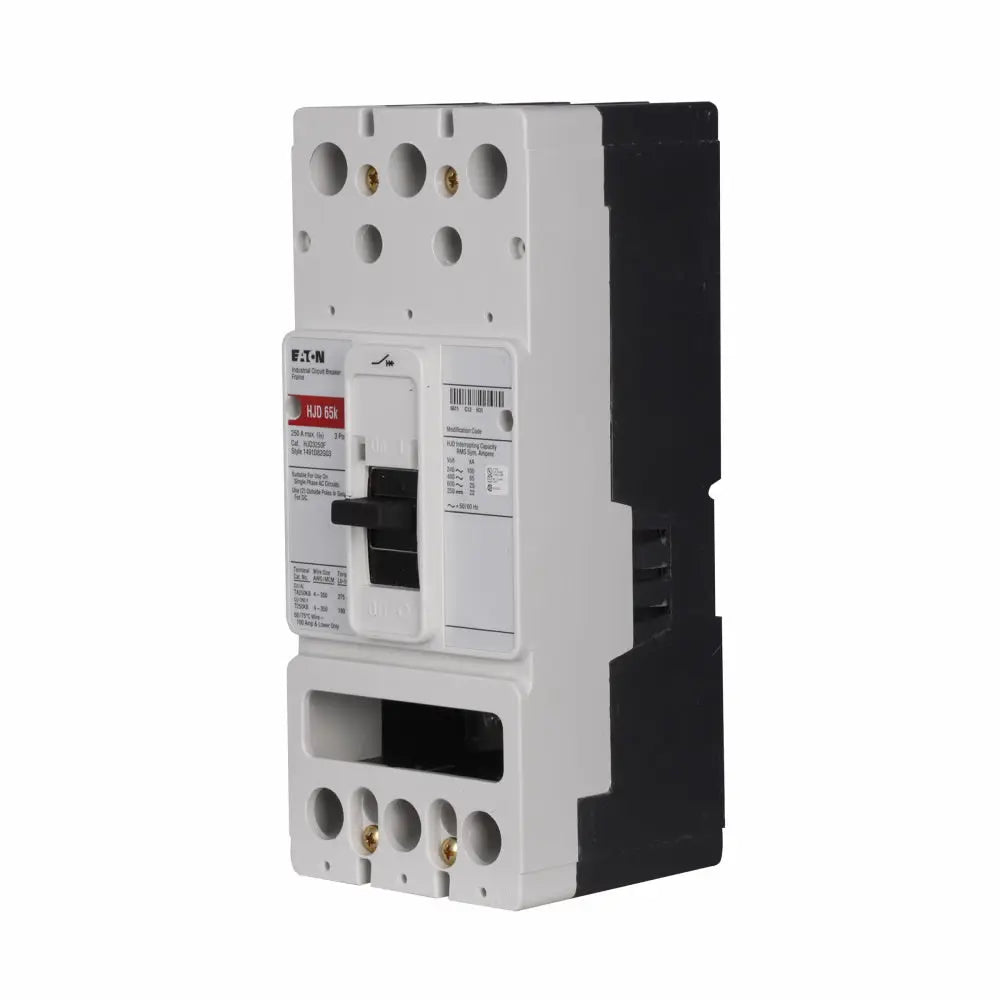

HJD3250F - Cutler Hammer 250A 600VAC 3 Pole Molded Case Circuit Breaker Frame

HJD3250F

HJD3250F is a Cutler Hammer molded case circuit breaker frame rated for 250 amps and 600 volts AC with 3 poles.This breaker frame supports thermal magnetic trip units and features a bolt-on mounting type suitable for industrial applications.

• Amperage: 250 A
• Voltage Rating: 600 VAC, 250 VDC
• Poles: 3
• Mounting Type: Bolt-On
• Interrupt Rating: 100 kA at 240 VAC, 65 kA at 480 VAC
• Series/Frame: HJD (J Frame)
• Trip Unit Type: Thermal Magnetic (interchangeable)
• Dimensions: 4.06 in L x 4.13 in W x 4.13 in H
• Frequency: 50/60 Hz
• Weight: Approximately 12.5 lbs
• Certifications: Meets IEEE 1584-2002 arc flash hazard calculation standards

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

This item is Frame only as definded by the part number. That means it is only the circuit breaker frame, and no lugs or trip unit is included with the frame.

Specifications

• Part Number: HJD3250F
• Manufacturer : Cutler Hammer
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Series C
• Type : HJD
• Voltage : 600
• Amperage : 250
• Phase : 3
• Poles : 3
• AIC rating : 65kA@480V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous
• Frame Size : J Frame
• Protection : Thermal Magnetic

Product Data

• UPC : 786679512067
• GTIN : 00786679512067
• Country of Origin : Dominican Republic
• Dimensions : 4.06 in x 4.13 in x 4.13 in (Length/Depth x Height x Width)
• Weight : 12.5
• Certification : UL Listed
