HJA36150U44X - Square D 150A 600V 3-Pole Molded Case Circuit Breaker I-Line PowerPact H Frame

HJA36150U44X

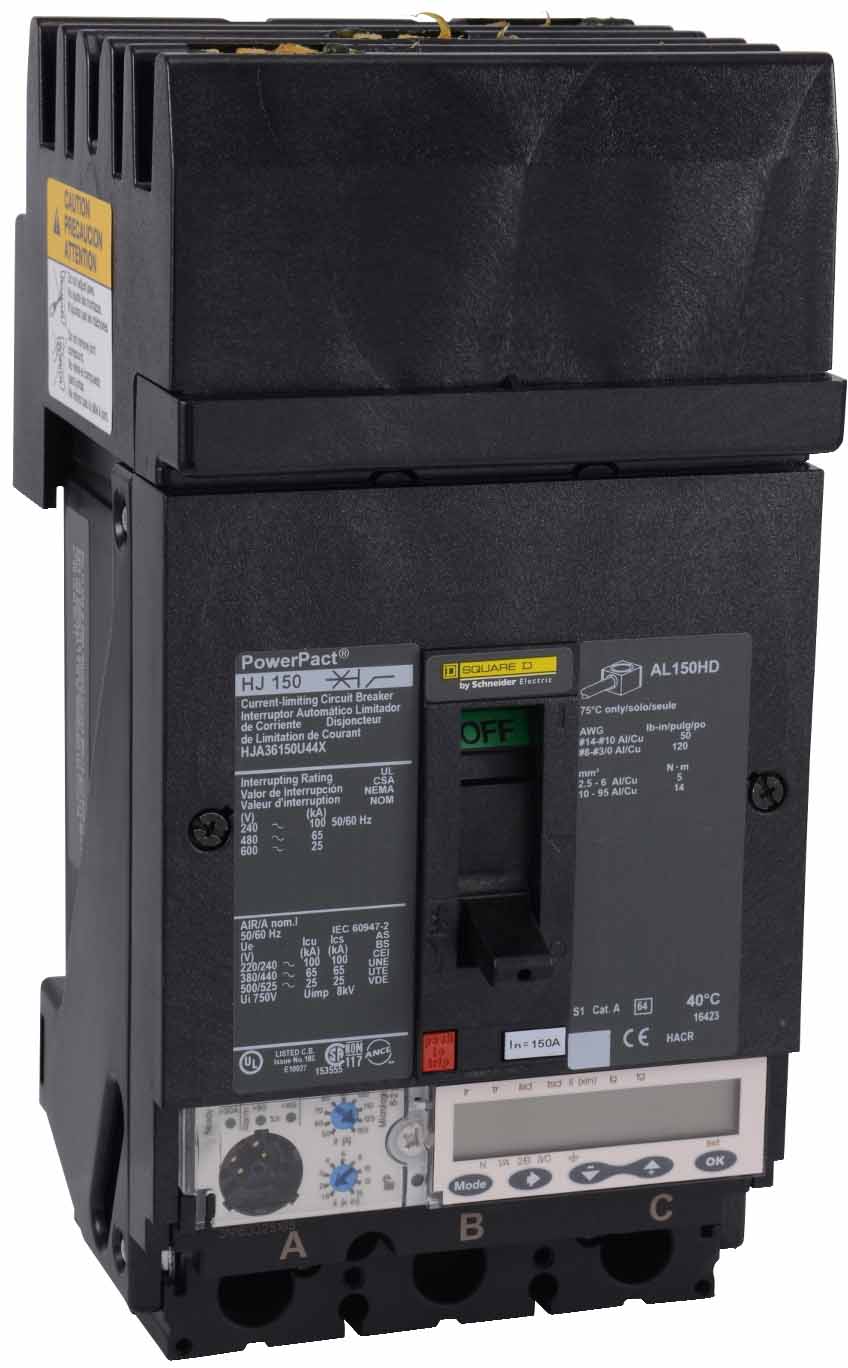

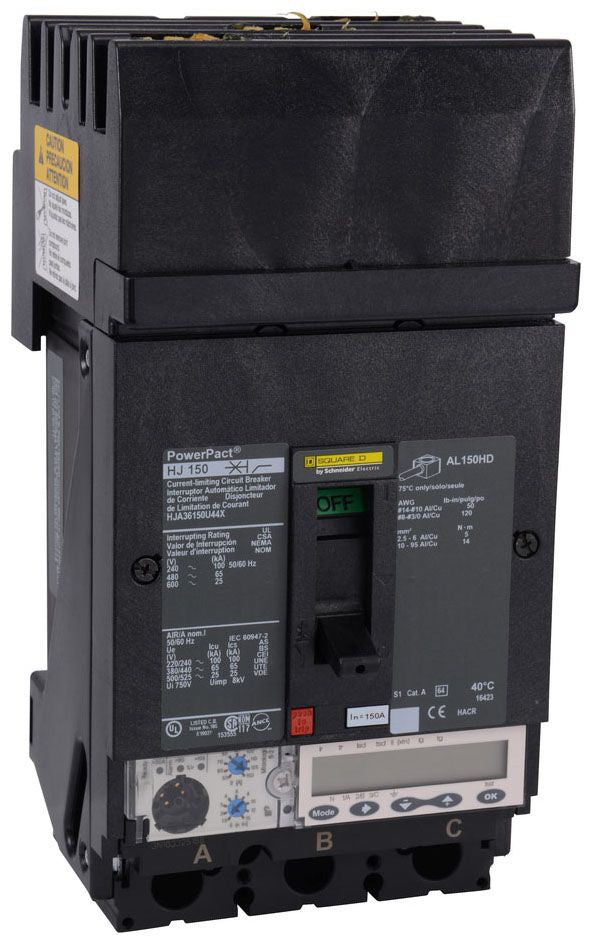

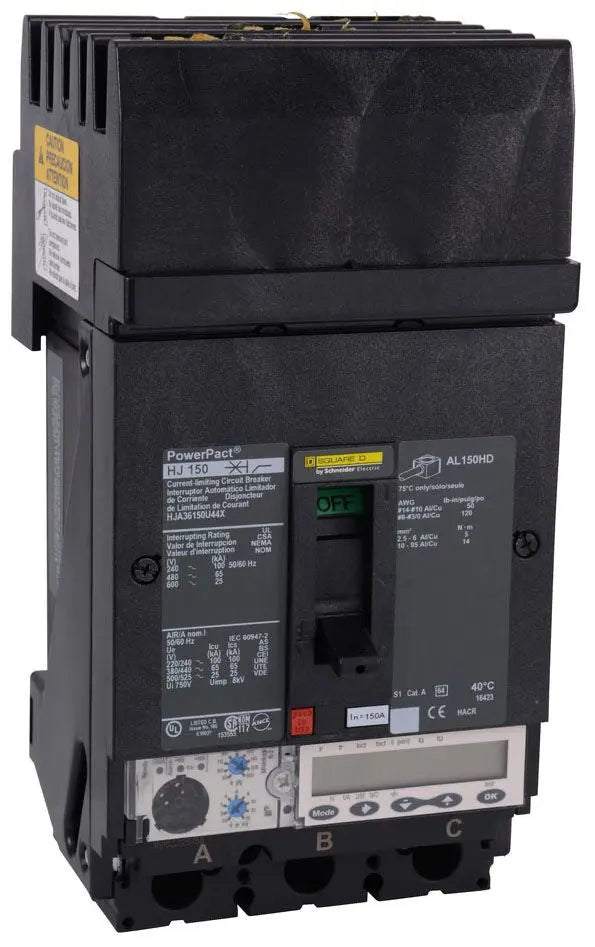

HJA36150U44X is a 150 Amp, 600 Volt, 3-pole molded case circuit breaker from Square D's PowerPact H series with I-Line mounting.This circuit breaker features a solid state electronic trip unit (Micrologic 6.2A) with LSIG protection functions including long-time, short-time, instantaneous, and ground fault. It has a high interrupt rating of 100 kA at 240 VAC, 65 kA at 480 VAC, and 25 kA at 600 VAC. The breaker is UL 489 listed and certified to IEC, CE, CCC, and CSA standards. It uses an I-Line style plug-in connection with lug-type terminals suitable for AWG 14 to 3/0 aluminum or copper wire.

Key Specifications
• Amperage: 150 Amps
• Voltage Rating: 600 VAC
• Poles: 3
• Mounting Type: I-Line plug-in
• Interrupt Rating: 100 kA @ 240 VAC, 65 kA @ 480 VAC, 25 kA @ 600 VAC
• Frame Type: PowerPact H (HJA series)
• Trip Unit: Micrologic 6.2A electronic LSIG
• Certifications: UL 489, IEC, CE, CCC, CSA
• Terminal Connection: Lug type
• Phase: 3 (ABC)
• Wire Gauge: AWG 14 to 3/0 aluminum/copper
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: HJA36150U44X
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : HJA
• Voltage : 600
• Amperage : 150
• Phase : 3
• Poles : 3
• AIC rating : 65kA@480V
• Connection : I-Line Style Plug-In
• Functions : LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault
• Terminal Connection : I-Line, Lug
• Frame Size : H
• Temp Rating : 28-158 °F (-2-70 °C)
• MCM Size : Min. Wire Size 14 AWG (Cu/Al) Max. Wire Size 3/0 AWG (Cu/Al)
• Protection : Solid State
• Phase Connection : ABC



Product Data

• UPC : 785901764373
• GTIN : 00785901764373
• Country of Origin : United States
• Dimensions : 6.4 in (163 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
• Weight : 8.001
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 14...AWG 3/0 aluminium/copper terminal
