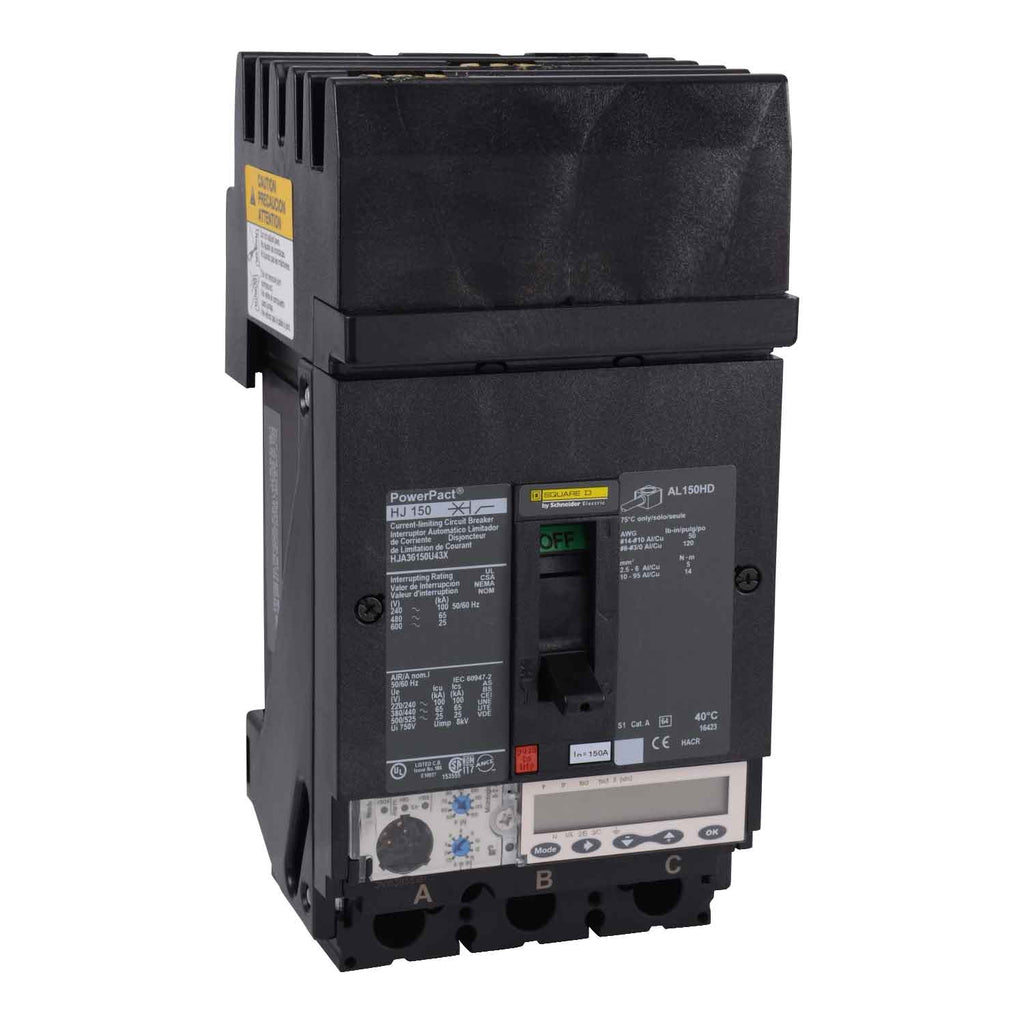

HJA36150U43X - Schneider Electric PowerPact H 150A 3-Pole 600VAC 25kA Circuit Breaker

HJA36150U43X

HJA36150U43X is a PowerPact H molded case circuit breaker from Schneider Electric designed for industrial and commercial power distribution applications. This solid state breaker delivers reliable overcurrent protection with electronic trip capability and I-Line connectivity for streamlined installation in modern electrical systems.Key Specifications

• Manufacturer: Schneider Electric
• Series: PowerPact H
• Current Rating: 150 Amps
• Poles: 3
• Voltage Rating: 600VAC, 250VDC
• Interrupt Rating: 25 kA at 600VAC
• Trip Unit: Micrologic 5.2A Electronic
• Mounting: I-Line
• Rating: 80% Rated
• Certifications: UL 489, CSA, NEMA, VDE, BS, CCC, IEC, CE marked

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HJA36150U43X
• Manufacturer : Schneider Electric
• Brand : Schneider Electric
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : HJA
• Voltage : 600
• Amperage : 150
• Phase : 3
• Poles : 3
• AIC rating : 65kA@480V
• Connection : I-Line Style Plug-In
• Functions : LSI - Long-Time, Short-Time and Instantaneous Trip
• Frame Size : H Frame
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Solid State

Product Data

• GTIN : 03606486282748
• Country of Origin : United States
• Dimensions : 6.4 in (163 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
• Weight : 8.001
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 14...AWG 3/0 aluminium/copper terminal
