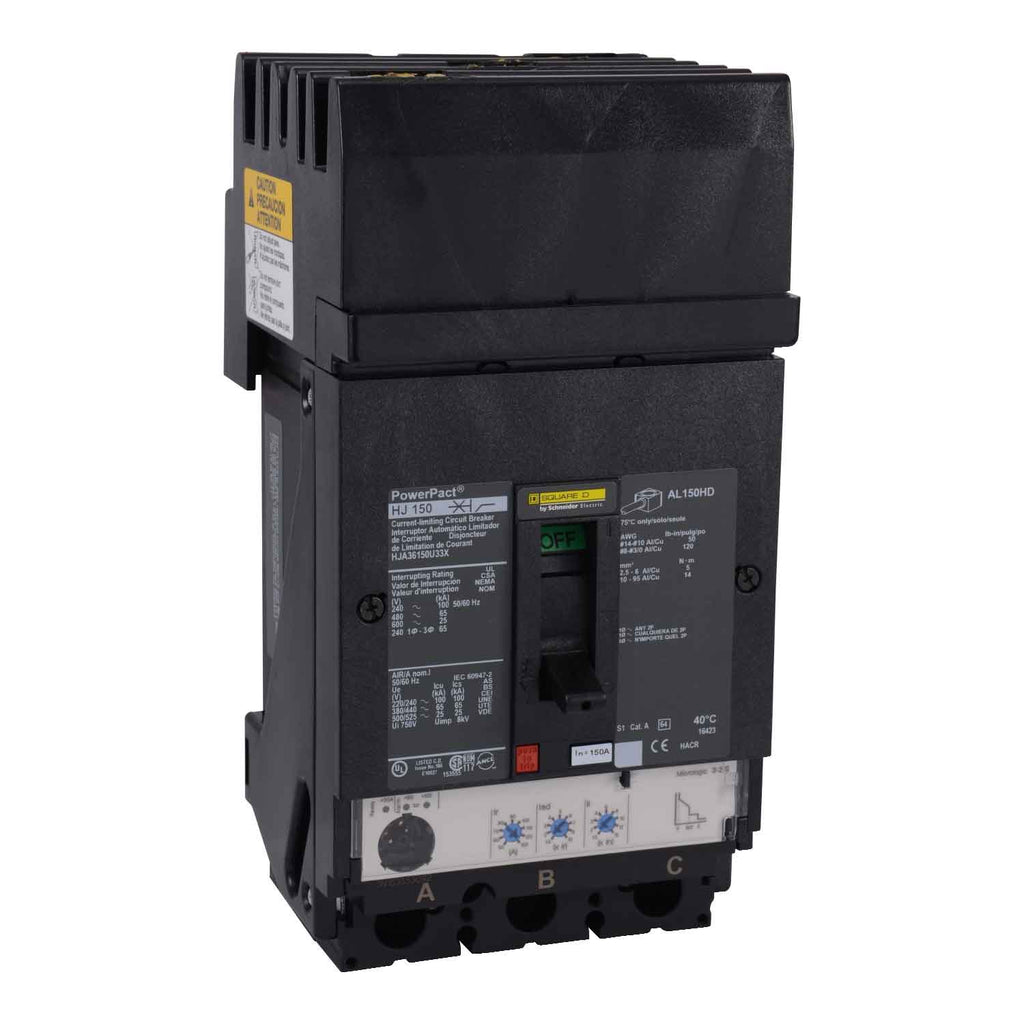

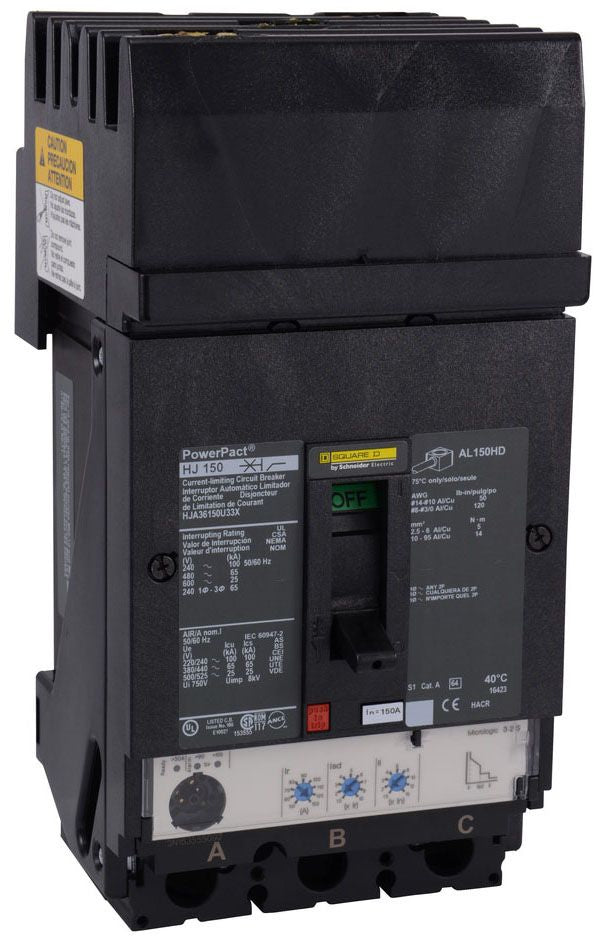

HJA36150U33X - Square D 150A 600V 3 Pole I-Line Molded Case Circuit Breaker with Micrologic 3.2S Trip Unit

HJA36150U33X

HJA36150U33X is a Square D PowerPact H series molded case circuit breaker rated for 150 Amps, 600 Volts, and 3 poles with an I-Line style plug-in mounting.This circuit breaker features a solid state electronic Micrologic 3.2S trip unit with LSI (Long-Time, Short-Time, Instantaneous) protection functions. It has an interrupting rating of 100 kA at 240 V AC, 65 kA at 480 V AC, and 25 kA at 600 V AC. The breaker is UL, CSA, CE, IEC, and CCC certified and designed for 3-phase ABC applications.

Key Specifications
• Amperage: 150 A
• Voltage Rating: 600 V AC
• Poles: 3
• Mounting Type: I-Line Style Plug-In
• Interrupting Rating: 100 kA @ 240 V, 65 kA @ 480 V, 25 kA @ 600 V
• Series/Frame: PowerPact H, HJA Frame
• Trip Unit: Electronic Micrologic 3.2S with LSI
• Phase: 3 (ABC)
• Connection Type: I-Line Plug-In
• Certifications: UL, CSA, CE, IEC, CCC
• Dimensions (H x W x D): 9.73 x 4.48 x 4.8 inches
• Wire Gauge: AWG 14 to 3/0 Aluminum/Copper

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HJA36150U33X
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : HJA
• Voltage : 600
• Amperage : 150
• Phase : 3
• Poles : 3
• AIC rating : 65kA@480V
• Connection : I-Line Style Plug-In
• Functions : LSI - Long-Time, Short-Time and Instantaneous
• Terminal Connection : I-Line, Lug
• Frame Size : H
• Temp Rating : 28-158 °F (-2-70 °C)
• MCM Size : Min. Wire Size 14 AWG (Cu/Al) Max. Wire Size 3/0 AWG (Cu/Al)
• Protection : Solid State
• Phase Connection : ABC

Product Data

• UPC : 785901966623
• GTIN : 00785901966623
• Country of Origin : United States
• Dimensions : 6.4 in (163 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
• Weight : 8.001
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 14...AWG 3/0 aluminium/copper terminal
