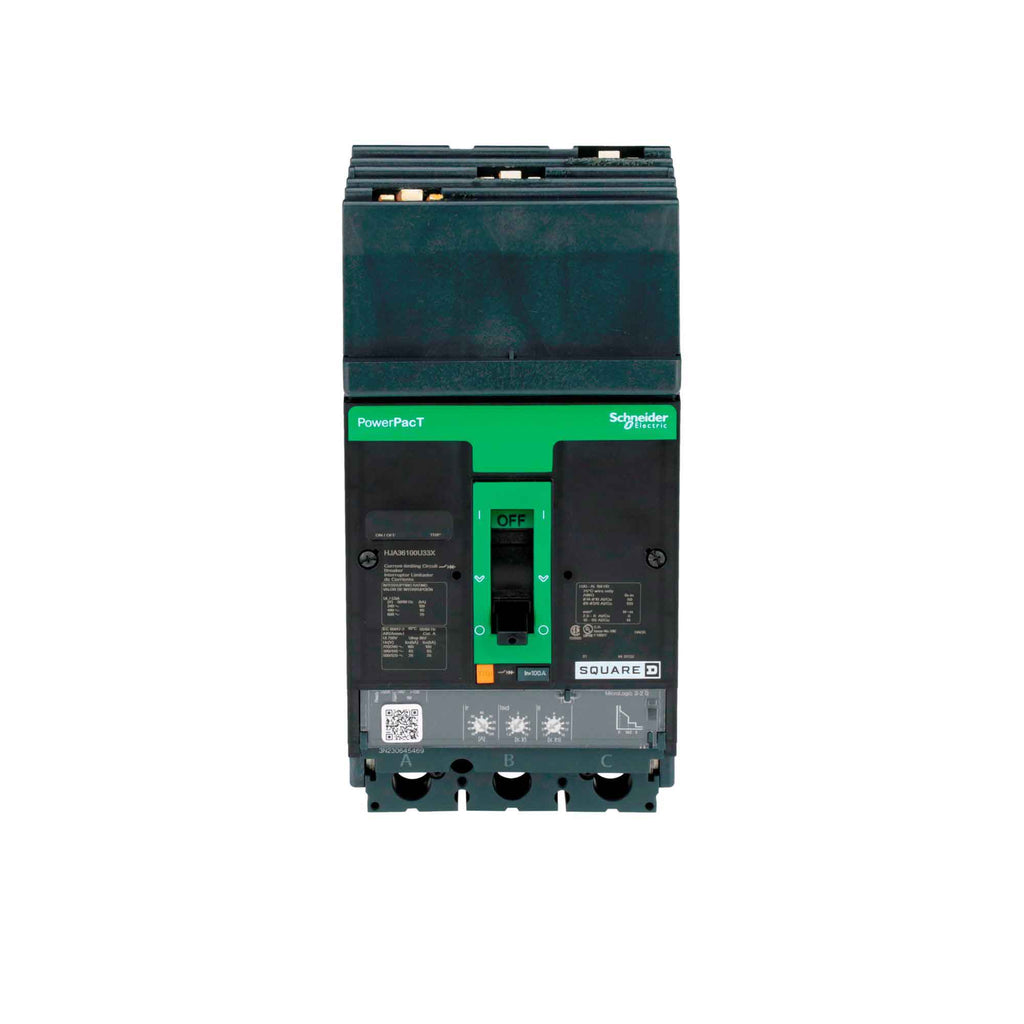

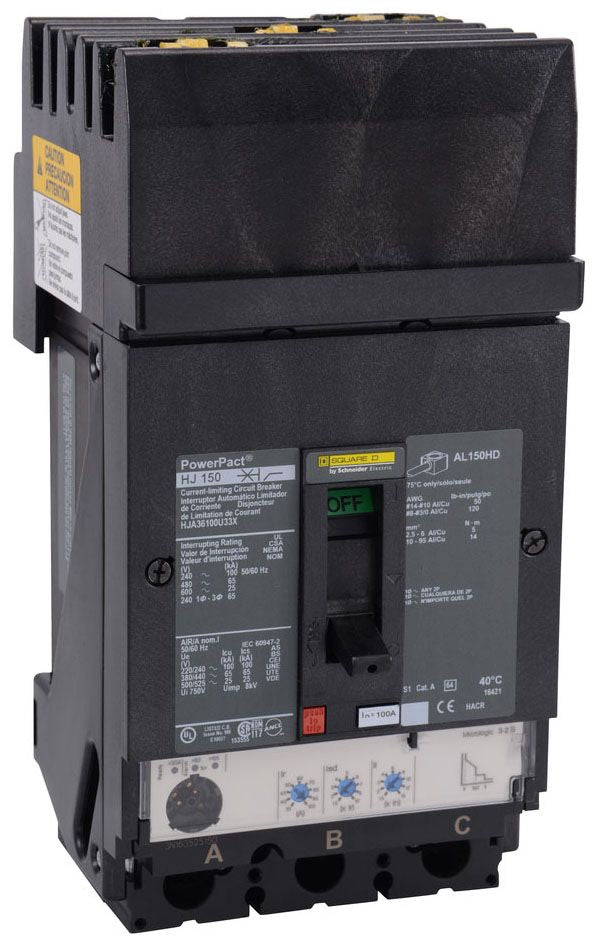

HJA36100U33X - Square D PowerPact H 100A 3 Pole 600V Molded Case Circuit Breaker I-Line Micrologic 3.2S

HJA36100U33X

HJA36100U33X is a 3 pole, 100A, 600V molded case circuit breaker from the Square D PowerPact H series, featuring I-Line plug-in mounting and Micrologic 3.2S solid state trip unit for reliable protection in commercial and industrial applications. This breaker provides advanced LSI (Long-Time, Short-Time, Instantaneous) trip functions, current limiting, and is suitable for reverse connection. Designed for use in I-Line busway systems, it offers high interrupting capacity and is UL listed for safety and compliance.

• Part Number: HJA36100U33X
• Manufacturer: Square D
• Series/Frame: PowerPact H
• Number of Poles: 3
• Current Rating: 100A
• Voltage Rating: 600VAC
• Mounting Type: I-Line Plug-In
• Interrupt Rating: 25kA @ 600VAC
• Interrupt Rating: 65kA @ 480VAC
• Interrupt Rating: 100kA @ 240VAC
• Trip Unit: Micrologic 3.2S (LSI)
• Certifications: UL Listed

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HJA36100U33X
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : HJA
• Voltage : 600
• Amperage : 100
• Phase : 3
• Poles : 3
• AIC rating : 65kA@480V
• Connection : I-Line Style Plug-In
• Functions : LSI - Long-Time, Short-Time and Instantaneous
• Terminal Connection : I-Line, Lug
• Frame Size : H
• Temp Rating : 28-158 °F (-2-70 °C)
• MCM Size : Min. Wire Size 14 AWG (Cu/Al) Max. Wire Size 3/0 AWG (Cu/Al)
• Protection : Solid State
• Phase Connection : ABC

Product Data

• UPC : 785901236023
• GTIN : 00785901236023
• Country of Origin : United States
• Dimensions : 6.4 in (163 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
• Weight : 8.001
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 14...AWG 3/0 aluminium/copper terminal
