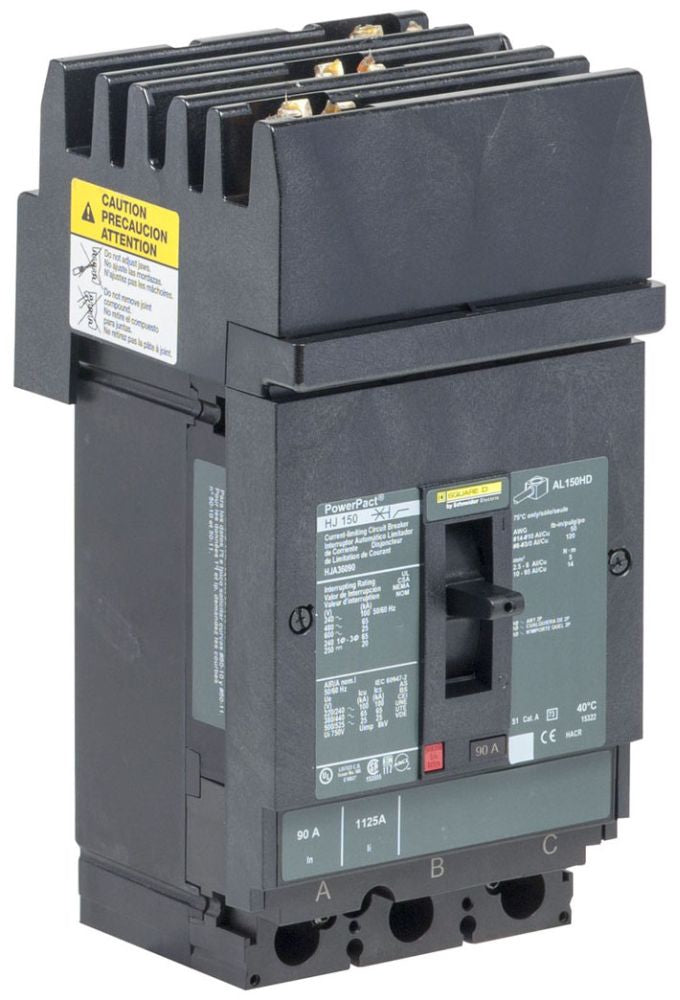

HJA36090YP - Square D 90 Amp 600V 3 Pole PowerPact H Molded Case Circuit Breaker

HJA36090YP

HJA36090YP is a Square D PowerPact H molded case circuit breaker rated for 90 amps and 600 volts with 3 poles.This thermal magnetic circuit breaker features a 65kA interrupt rating at 480V, current limiting design, and an I-Line style plug-in mounting. It includes long time and instantaneous trip functions, is suitable for reverse fed applications, and has ABC phase connections. The breaker is UL listed and designed for three-phase power distribution protection.

• Amperage: 90 Amps
• Voltage: 600 VAC
• Poles: 3
• Frame Type: PowerPact H (HJA)
• Interrupt Rating: 65kA @ 480V
• Mounting Type: I-Line style plug-in
• Trip Unit: Thermal Magnetic with long time and instantaneous trip
• Phase Connection: ABC
• Current Limiting
• Suitable for Reverse Fed Applications
• UL Listed

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HJA36090YP
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : HJA
• Voltage : 600
• Amperage : 90
• Phase : 3
• Poles : 3
• AIC rating : 65kA@480V
• Connection : I-Line Style Plug-In
• Functions : LI - Long-Time and Instantaneous
• Frame Size : H Frame
• Temp Rating : 28-158 °F (-2-70 °C)
• Protection : Thermal Magnetic

Product Data

• UPC : 3606486282694
• GTIN : 03606486282694
• Country of Origin : Mexico
• Dimensions : 6.4 in (163 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
• Weight : 5
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 14...AWG 3/0 aluminium/copper terminal
