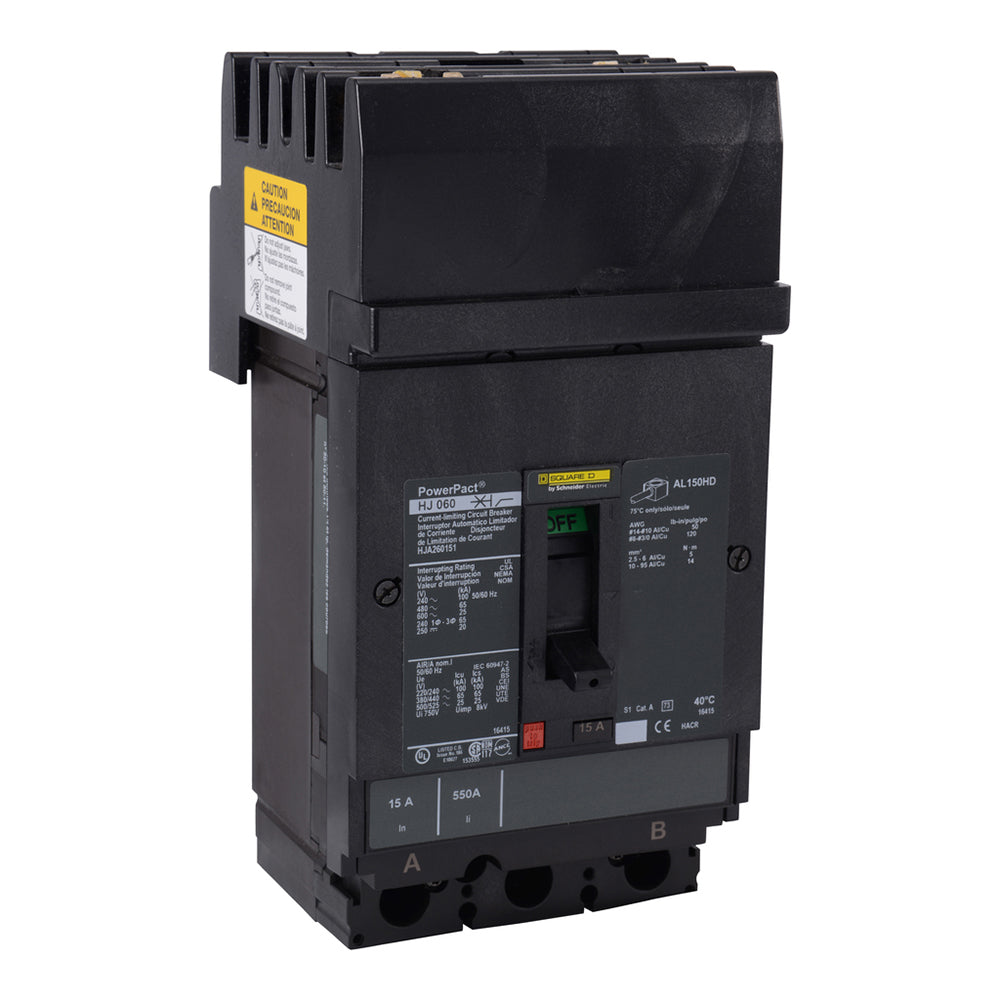

HJA260906 - Square D PowerPact H-Frame 90A 2-Pole 600V Molded Case Circuit Breaker

HJA260906

HJA260906 is a Square D PowerPact H-Frame molded case circuit breaker designed for reliable protection in commercial and industrial electrical systems. This breaker features a 2-pole configuration and is rated for 90 amps at 600 volts, making it suitable for a wide range of applications requiring dependable overcurrent protection. The HJA260906 is part of the PowerPact H-Frame series and utilizes a thermal-magnetic trip unit for accurate overload and short-circuit protection. It is designed for I-Line style plug-in mounting, allowing for quick and easy installation in compatible switchgear. The breaker is built to meet rigorous safety and performance standards, ensuring long-term reliability in demanding environments.

• Part Number: HJA260906
• Manufacturer: Square D
• Series/Frame: PowerPact H-Frame
• Amperage: 90A
• Voltage: 600V
• Poles: 2
• Mounting Type: I-Line Plug-In
• Interrupt Rating: 35 kA @ 480V
• Trip Unit: Thermal-Magnetic
• UL 489 Listed
• HACR Rated
• SWD Switch Duty Rated

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HJA260906
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : HJA
• Voltage : 600
• Amperage : 90
• Phase : 1
• Poles : 2
• AIC rating : 65kA@480V
• Connection : I-Line Style Plug-In
• Functions : LI - Long-Time and Instantaneous
• Frame Size : H Frame
• Temp Rating : 28-158 °F (-2-70 °C)
• Protection : Thermal Magnetic

Product Data

• Country of Origin : United States
• Dimensions : 6.4 in (163 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
• Weight : 3.999
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 14...AWG 3/0 aluminium/copper terminal
