2 Year Warranty Guaranteed
All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.
Product Questions? Contact Us
Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
HHLXD63B450L

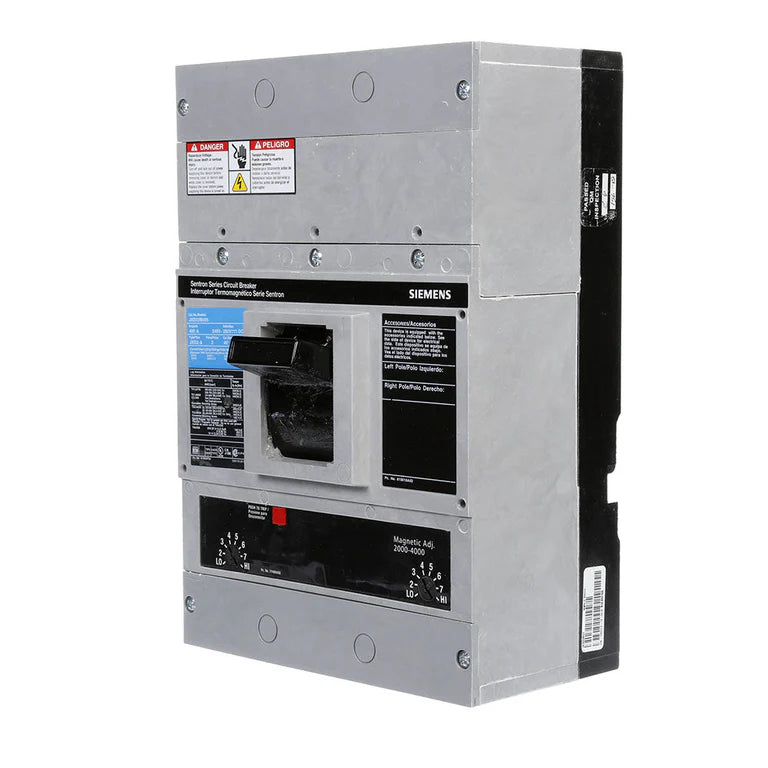

HHLXD63B450L is a Siemens Sentron series molded case circuit breaker designed for reliable protection in low voltage power distribution systems. This 3 pole, 450 amp, 600 volt breaker features a bolt-on mounting style and is suitable for a wide range of industrial and commercial applications. The breaker provides both overload and short circuit protection with a thermal-magnetic trip unit for dependable performance. Engineered for safety and durability, the HHLXD63B450L meets UL 489 and IEC 60947-2 standards and is rated for reverse fed applications. It offers a high interrupting capacity and is built to withstand demanding electrical environments.
- Part Number: HHLXD63B450L
- Manufacturer: Siemens
- Series: Sentron
- Amperage Rating: 450A
- Voltage Rating: 600V
- Number of Poles: 3
- Mounting Type: Bolt-On
- Interrupt Rating: 100kA @ 480V
- Trip Unit: Thermal-Magnetic
- Standards: UL 489, IEC 60947-2
- Reverse Fed: UL Listed
- Wire Range: 1/0 AWG - 500 KCM (CU/AL)
Specifications
- Part Number: HHLXD63B450L
- Manufacturer : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Sentron Series
- Type : HHLXD
- Voltage : 600
- Amperage : 450
- Phase : 3
- Poles : 3
- AIC rating : 100kA@480V
- Connection : Feed-Thru
- Functions : LI - Long-Time and Instantaneous
- Frame Size : LD Frame
- Protection : Thermal Magnetic
Product Data
- Weight : 25
