Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
HHFXD63S250L

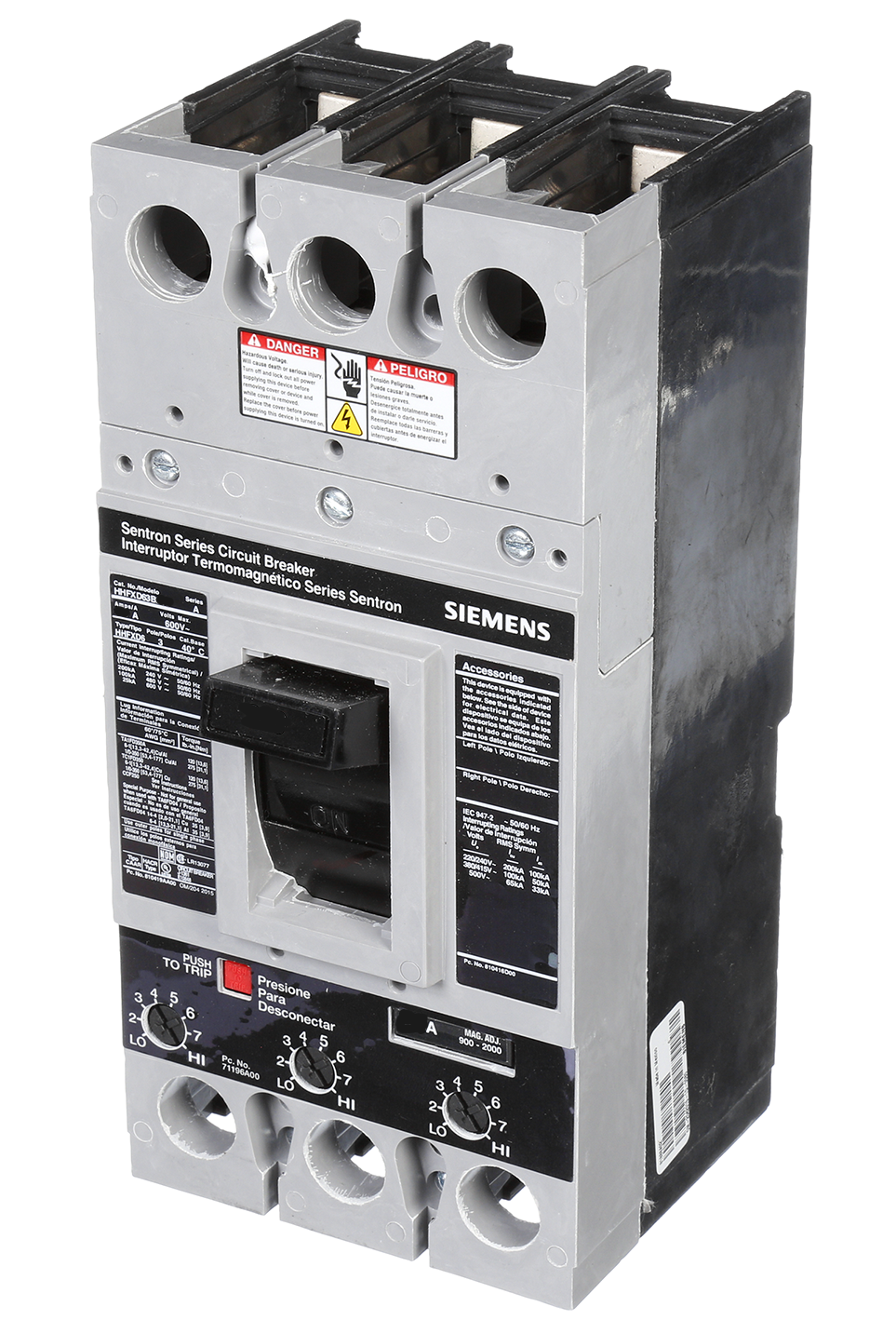

HHFXD63S250L is a Siemens 3-pole molded case circuit breaker designed for 250 ampere, 600 volt applications in the FD frame series.This breaker features a thermal magnetic trip unit with a non-interchangeable trip, providing reliable protection for electrical circuits. It is rated for 22 kA interrupting capacity at 480V and supports bolt-on mounting. The breaker is UL listed and suitable for use in standard NEMA Type 1 enclosures.
- Manufacturer: Siemens
- Amperage: 250A
- Voltage: 600V AC
- Poles: 3
- Frame/Series: FD Frame
- Trip Unit: Thermal Magnetic, Non-Interchangeable
- Interrupt Rating: 22 kA at 480V
- Mounting Type: Bolt-On
- Certification: UL Listed
Specifications
- Part Number: HHFXD63S250L
- Manufacturer : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Sentron Series
- Type : HHFXD
- Voltage : 600
- Amperage : 250
- Phase : 3
- Poles : 3
- AIC rating : 100kA@480V
- Connection : Feed-Thru
- Functions : NA - No Overcurrent Protection
- Frame Size : FD Frame
- Protection : Non-Automatic
Product Data
- Weight : 18
