Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
HHFXD63S250

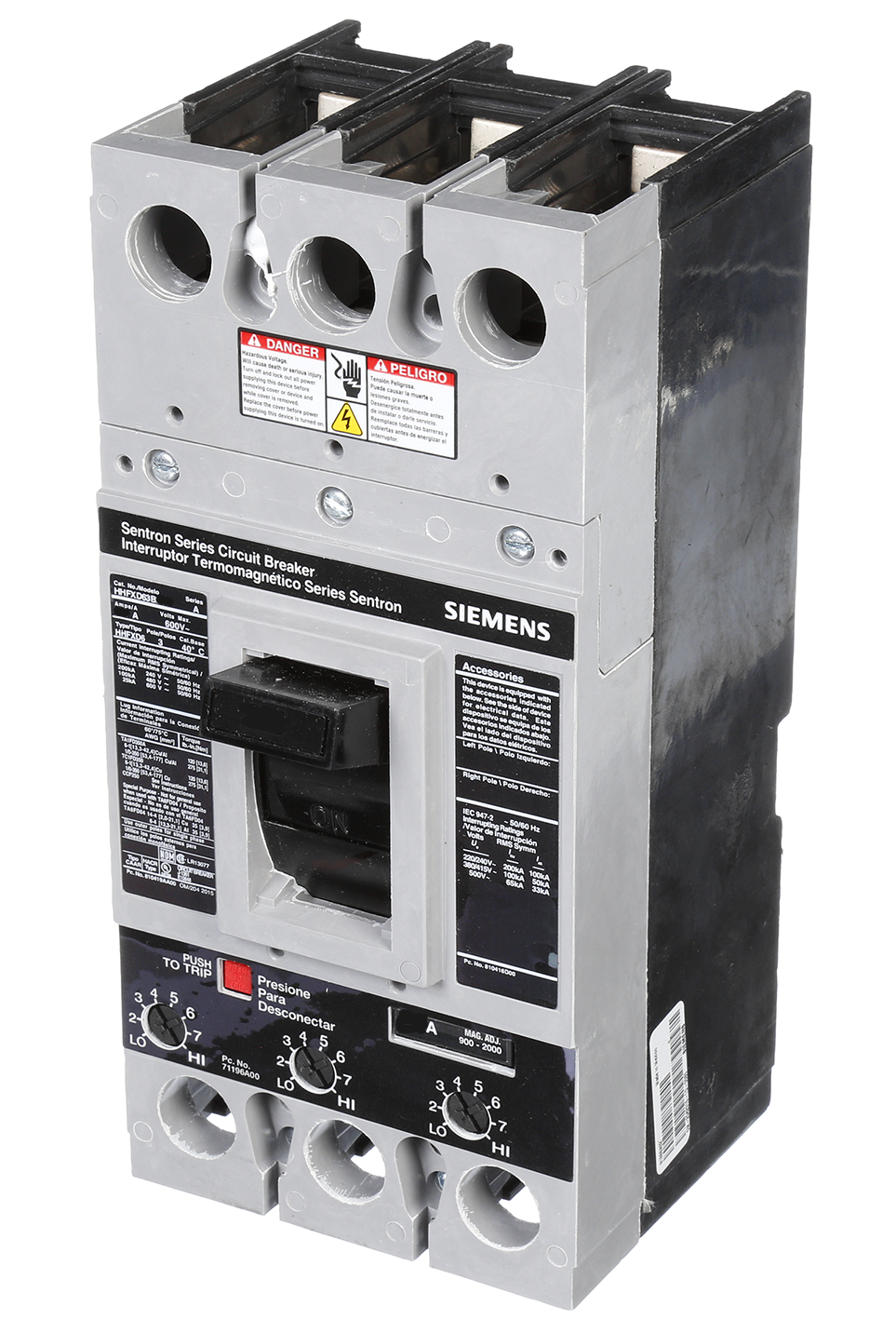

HHFXD63S250 is a Siemens FD frame thermal magnetic molded case circuit breaker rated for 250 amps and 600 volts with 3 poles.This Siemens circuit breaker features a thermal magnetic trip unit with non-interchangeable trip, designed for reliable protection in low voltage applications. It supports a 3-phase system and is suitable for bolt-on mounting. The breaker has a standard interrupt rating of 22 kA at 480V and is UL listed. It is part of the Sentron FD series, offering robust performance and compliance with industry standards.
- Amperage: 250A
- Voltage: 600 VAC
- Poles: 3
- Frame: FD
- Trip Unit: Thermal Magnetic, non-interchangeable
- Interrupt Rating: 22 kA at 480V
- Mounting Type: Bolt-On
- Phase: 3-phase
- UL Listed
Specifications
- Part Number: HHFXD63S250
- Manufacturer : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Sentron Series
- Type : HHFXD
- Voltage : 600
- Amperage : 250
- Phase : 3
- Poles : 3
- AIC rating : 100kA@480V
- Connection : Bolt-On
- Functions : NA - No Overcurrent Protection
- Frame Size : FD Frame
- Protection : Non-Automatic
Product Data
- Weight : 18
