Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
HHFXD63B250L

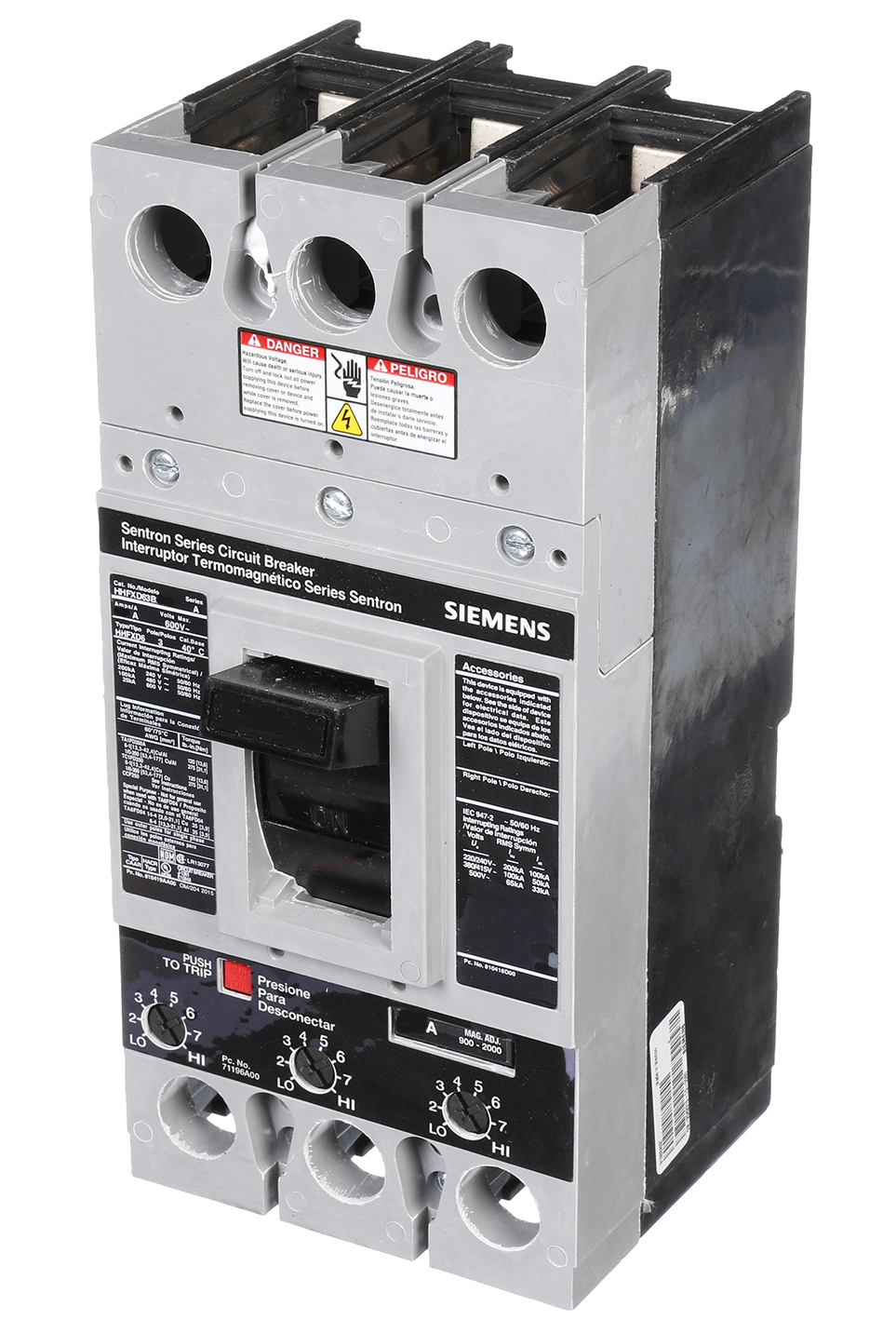

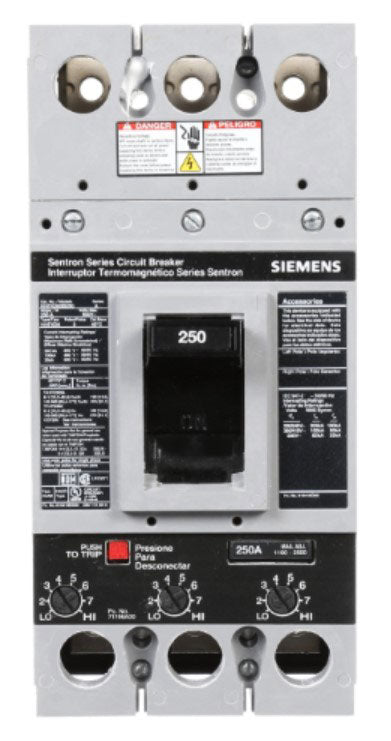

HHFXD63B250L is a Siemens Sentron series molded case circuit breaker designed for industrial and commercial power distribution applications. HHFXD63B250L is a 3-pole thermal magnetic circuit breaker with a 250-amp current rating and 600-volt AC rating, featuring bolt-on connection and non-interchangeable trip unit for reliable overcurrent protection. This breaker delivers an interrupting capacity of 22kAIC at 600V and 35kAIC at 480V, meeting standard breaking capacity requirements for general-purpose applications. The FXD frame type provides compact, efficient mounting in panelboards and switchgear. Long-time and instantaneous trip functions protect against overloads and short circuits. Operating temperature rating of 40 degrees Celsius ensures stable performance in standard environments. UL and IEC approvals confirm compliance with recognized safety standards. Dimensions measure 4.5 inches wide by 9.5 inches high by 4 inches deep, with a weight of 10 pounds.
- Amperage: 250A
- Voltage: 600VAC
- Poles: 3
- Frame Type: FXD
- Connection: Bolt-On
- Trip Unit: Thermal Magnetic, Non-Interchangeable
- Interrupting Rating: 22kAIC at 600V, 35kAIC at 480V
- Trip Functions: Long-Time and Instantaneous
- Temperature Rating: 40 degrees Celsius
- Certifications: UL, IEC
- Dimensions (W x H x D): 4.5 x 9.5 x 4 inches
- Weight: 10 lbs
Additional Information
Line and load side lugs included (TA1FD350A)
Specifications
- Part Number: HHFXD63B250L
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Sentron Series
- Type : HHFXD
- Voltage : 600
- Amperage : 250
- Phase : 3
- Poles : 3
- AIC rating : 100kA@480V
- Connection : Feed-Thru
- Functions : LI - Long-Time and Instantaneous
- Frame Size : FD Frame
- Temp Rating : 104 °F (40 °C)
- Protection : Thermal Magnetic
Product Data
- UPC : 783643084636
- GTIN : 00783643084636
- Country of Origin : Mexico
- Dimensions : 9.843 x 5.906 x 6.693 inch
- Weight : 9.017
- Panel Type : S4, P4, SPP, F1,FC1, FCII, CDP-5, CDP-6, SB1-3, S5, P5, SPP/FPP, F2
- Wire Size : 6AWG - 350KCM (CU) / 4AWG - 350KCM (AL
