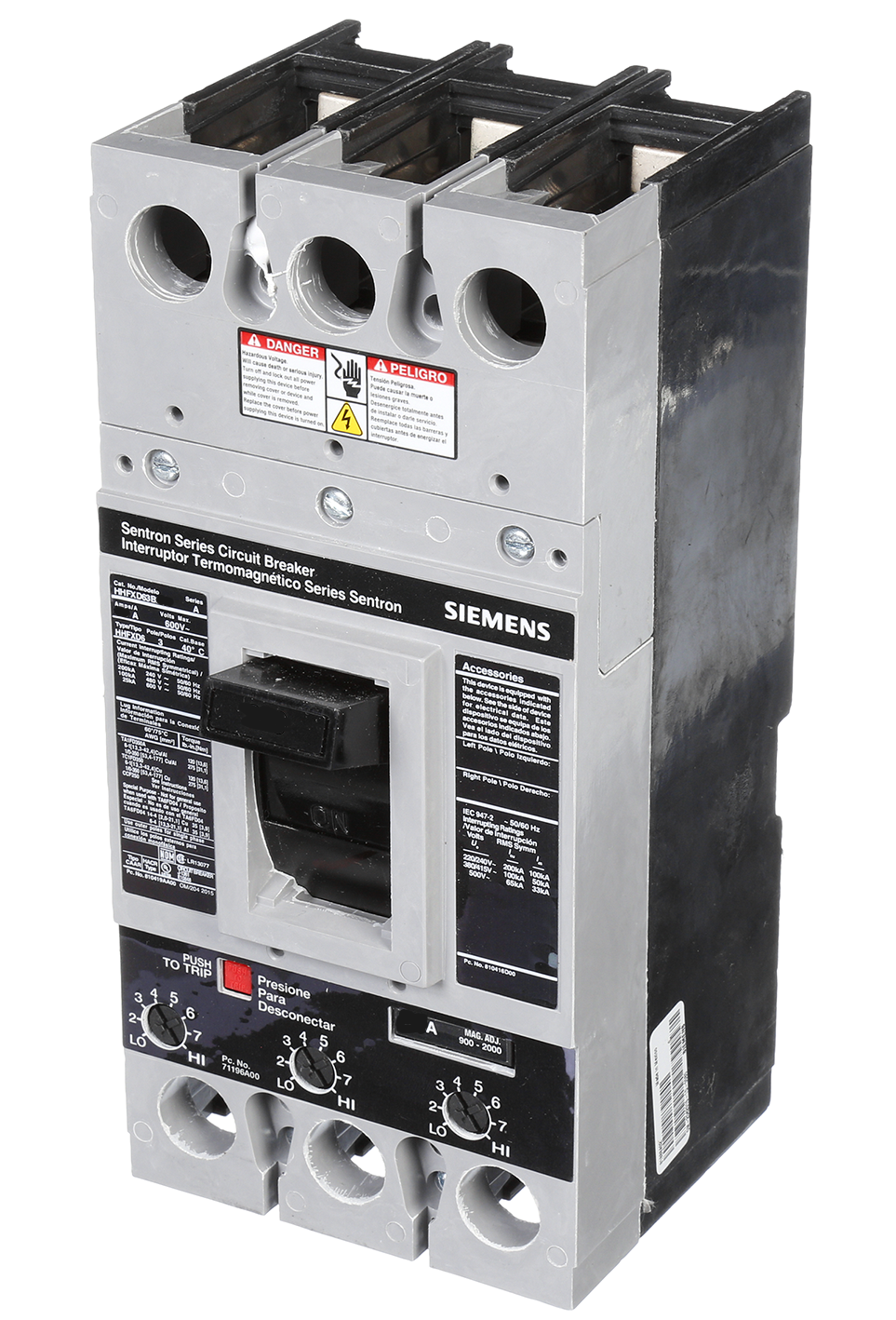

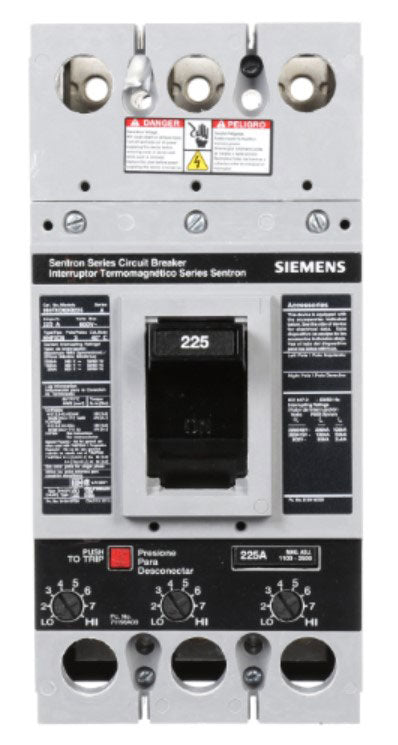

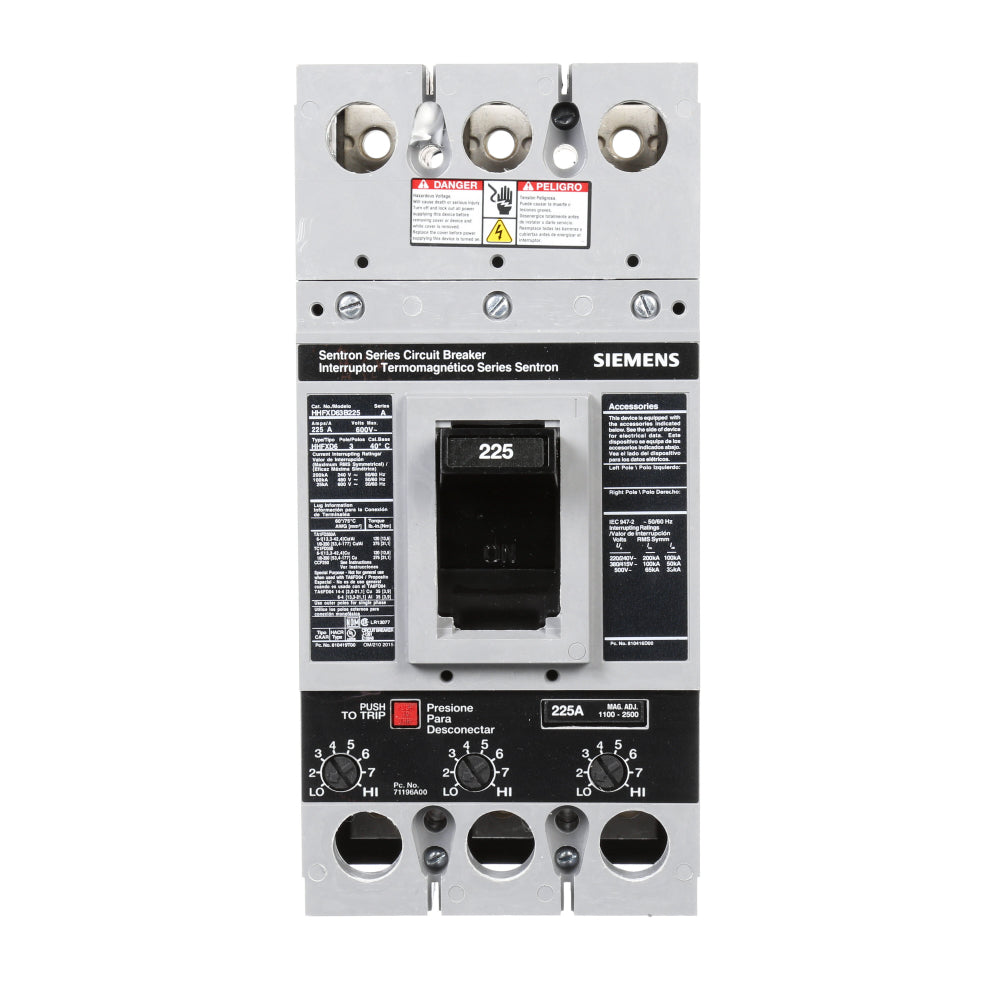

HHFXD63B225 - Siemens 225 Amp 600 VAC 3-Pole FD Frame Molded Case Circuit Breaker Thermal Magnetic Trip

HHFXD63B225

HHFXD63B225 is a Siemens 225 Amp, 600 VAC, 3-pole molded case circuit breaker from the FD frame series with a thermal magnetic trip unit.This Siemens Sentron FXD63B225 breaker features a 22 kA interrupt rating at 600 VAC, designed for low voltage power distribution. It has a standard 40°C temperature rating, bolt-on mounting type, and meets UL 489 and IEC 60947-2 certifications. The breaker is non-interchangeable and suitable for 50/60 Hz frequency applications.

Key Specifications
• Amperage: 225 A
• Voltage Rating: 600 VAC
• Poles: 3
• Interrupt Rating: 22 kA at 600 VAC
• Frame/Series: FD Frame
• Trip Unit: Thermal Magnetic
• Mounting Type: Bolt-on
• Temperature Rating: Standard 40°C
• Certifications: UL 489, IEC 60947-2
• Frequency: 50/60 Hz

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

Lugs are not included and must be purchased separately

Specifications

• Part Number: HHFXD63B225
• Manufacturer : Siemens
• Brand : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Sentron Series
• Type : HHFXD
• Voltage : 600
• Amperage : 225
• Phase : 3
• Poles : 3
• AIC rating : 100kA@480V
• Connection : Bolt-On
• Functions : Long Time and Instantaneous Trip
• Frame Size : FD Frame
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Thermal Magnetic

Product Data

• UPC : 783643318625
• GTIN : 00783643318625
• Country of Origin : Mexico
• Dimensions : 5.906 x 9.843 x 6.693 (W x H x D) Inches
• Weight : 7.5
• Panel Type : S4, P4, SPP, F1,FC1, FCII, CDP-5, CDP-6, SB1-3, S5, P5, SPP/FPP, F2
• Certification : UL Listed
