HHFXD63B150 - Siemens 150A 600V 3-Pole Bolt-On Molded Case Circuit Breaker HHFXD Series

HHFXD63B150

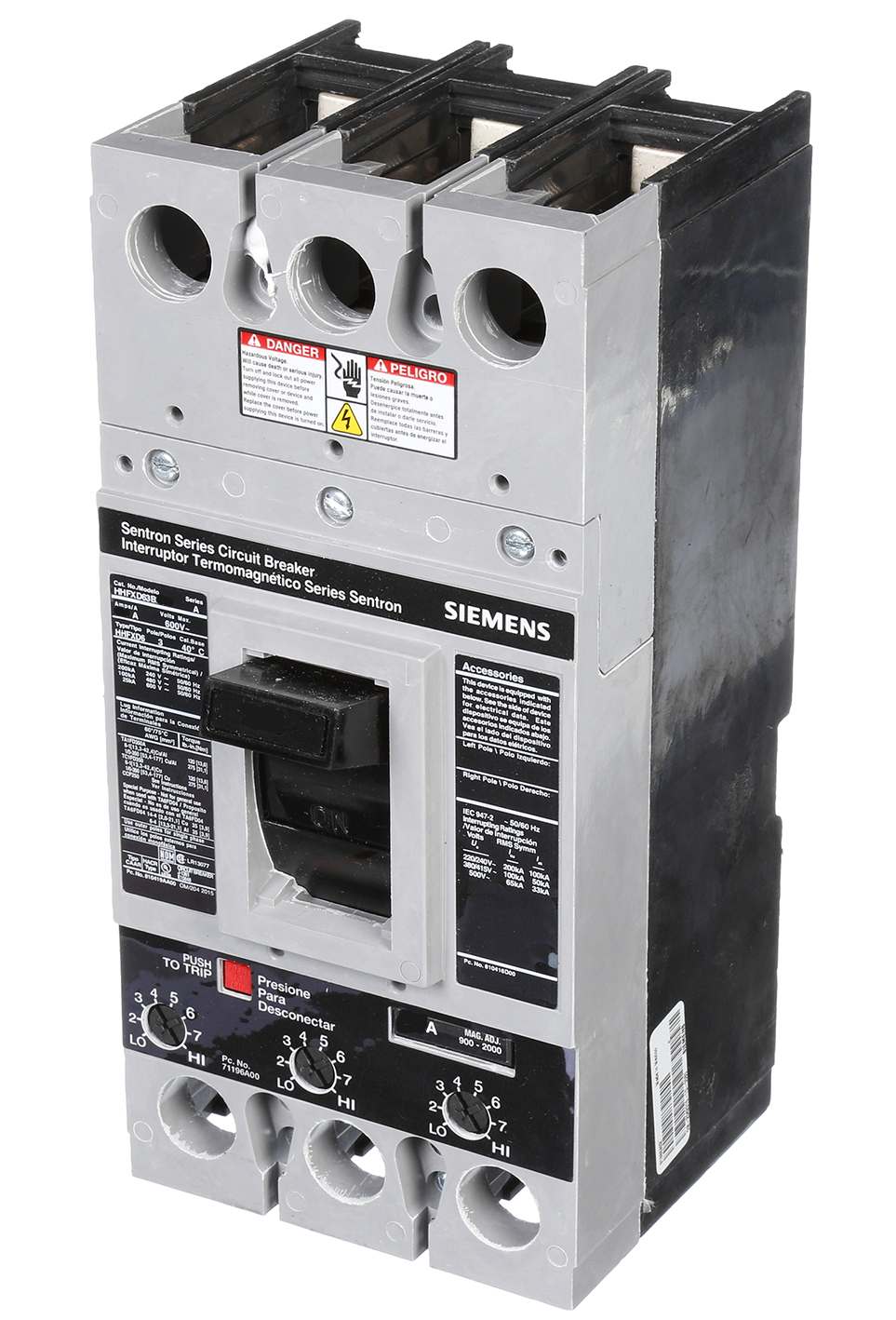

HHFXD63B150 is a Siemens 3-pole molded case circuit breaker with a 150 amp rating and 600 volt AC capacity designed for bolt-on mounting. This Siemens Sentron Series HHFXD breaker features a thermal magnetic trip unit providing both long-time and instantaneous protection for reliable circuit performance. It offers a high interrupting capacity of 100kA at 480V, ensuring robust protection for industrial and commercial electrical systems. The breaker is compatible with Siemens S4, P4, SPP, F1, FC1, FCII, CDP-5, CDP-6, SB1-3, S5, P5, SPP/FPP, and F2 panel types. UL Listed and CSA Certified, this unit is engineered for safety, durability, and easy installation. Lugs are not included and must be purchased separately.

Key Specifications
• Amperage: 150A
• Voltage: 600V AC
• Poles: 3
• Mounting Type: Bolt-On
• Interrupt Rating: 100kA @ 480V
• Series/Frame: HHFXD (Sentron Series, FD Frame)
• Trip Unit: Thermal Magnetic with Long-Time and Instantaneous Functions
• Certifications: UL Listed, CSA Certified
• Panel Compatibility: S4, P4, SPP, F1, FC1, FCII, CDP-5, CDP-6, SB1-3, S5, P5, SPP/FPP, F2
• Weight: 18 lbs
• Temperature Rating: 104 °F (40 °C)

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

Lugs are not included and must be purchased separately

Specifications

• Part Number: HHFXD63B150
• Manufacturer : Siemens
• Brand : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Sentron Series
• Type : HHFXD
• Voltage : 600
• Amperage : 150
• Phase : 3
• Poles : 3
• AIC rating : 100kA@480V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous
• Frame Size : FD Frame
• Temp Rating : 104 °F (40 °C)
• Protection : Thermal Magnetic

Product Data

• UPC : 783643318595
• GTIN : 00783643318595
• Country of Origin : Mexico
• Dimensions : 5.906 x 9.843 x 6.693 (W x H x D) Inches
• Weight : 9.16 lb
• Panel Type : S4, P4, SPP, F1,FC1, FCII, CDP-5, CDP-6, SB1-3, S5, P5, SPP/FPP, F2
