Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Molded Case
Description
HGL36150U31X

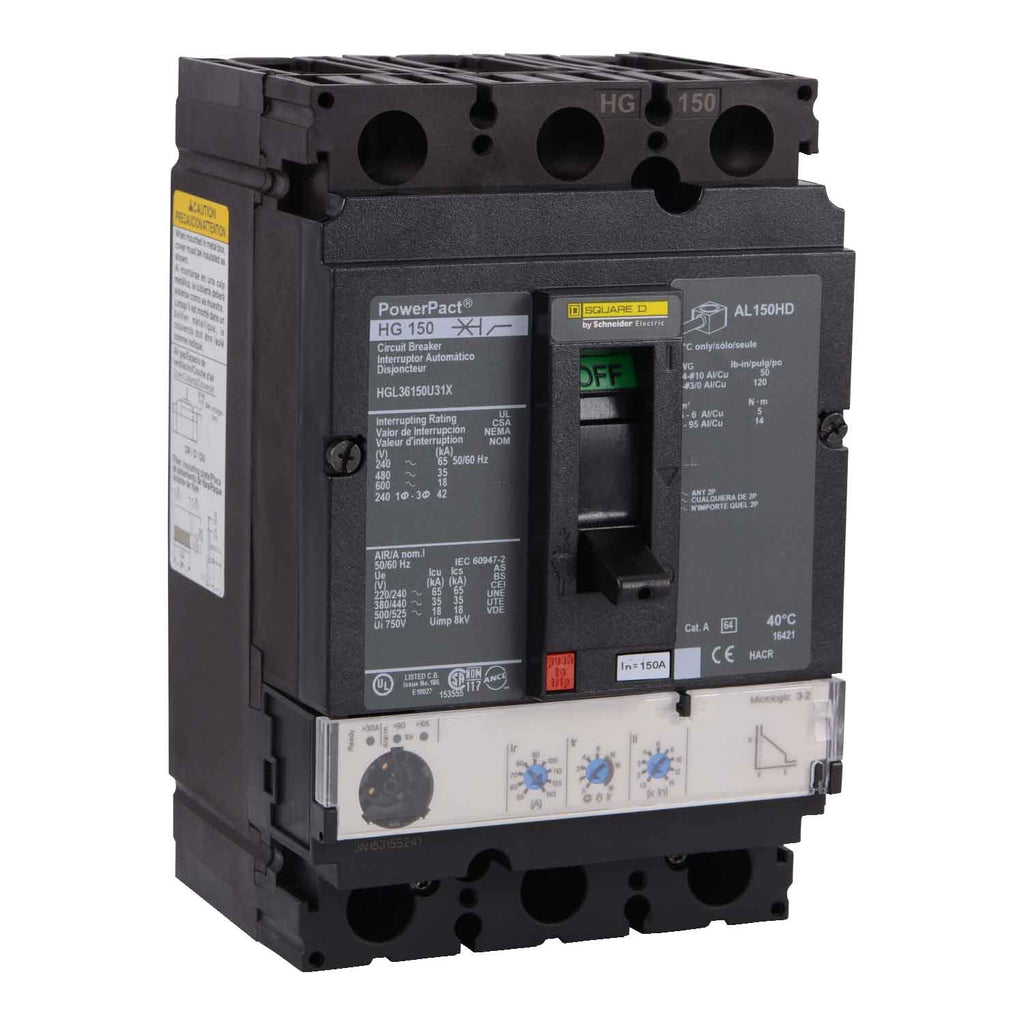

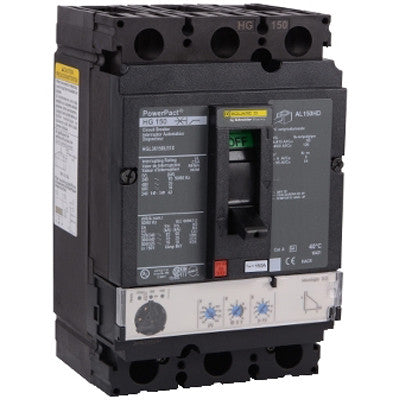

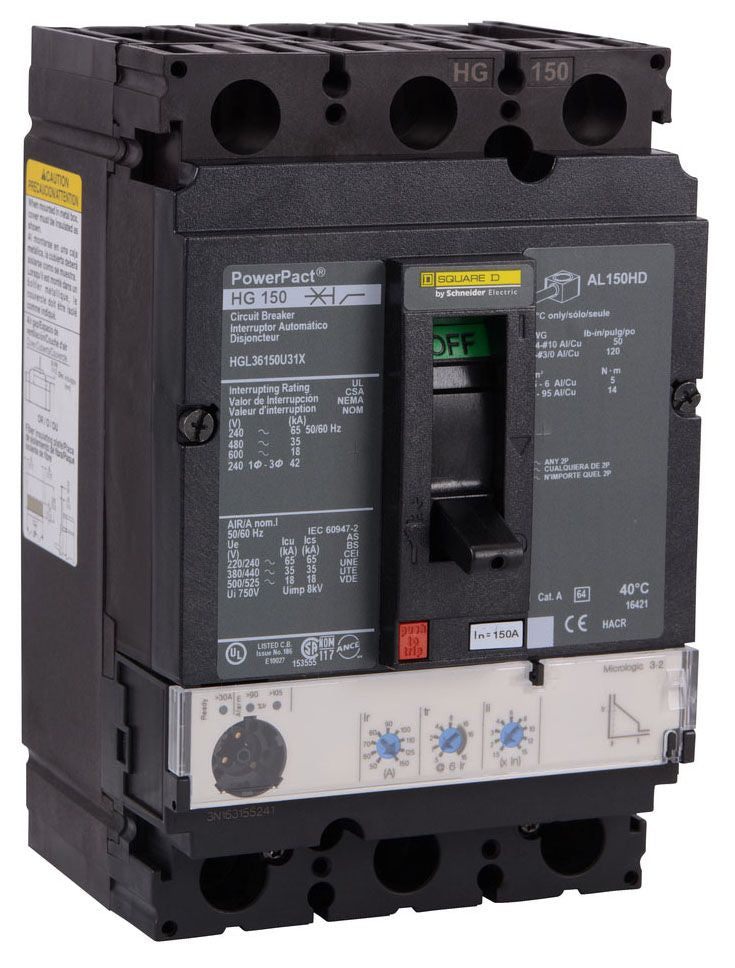

HGL36150U31X is a Square D by Schneider Electric 3-pole molded case circuit breaker designed for robust circuit protection in commercial and industrial applications.
This H-frame breaker features an electronic trip unit, unit mounting, and is part of the Powerpact series. It is UL 489 and CSA certified, with a high interrupting capacity for reliable performance in demanding environments. Suitable for construction, data centers, healthcare, and industrial facilities.
-
Key Specifications
- Amperage: 150A
- Voltage: 600V AC
- Poles: 3
- Mounting Type: Unit mount
- Interrupt Rating: 65kA @ 240V, 35kA @ 480V, 18kA @ 600V
- Series/Frame: Powerpact H-Frame
- Trip Unit: Electronic
- Certifications: UL 489, CSA, RoHS, CCC/CE
- Dimensions: 4.12" W x 4.36" D x 6.4" H
- Standard 80% or 100% rating
- Accessories and auxiliaries available
- QR code for documentation
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: HGL36150U31X
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Powerpact
- Type : HGL
- Voltage : 600
- Amperage : 150
- Phase : 3
- Poles : 3
- Connection : Feed-Thru
- Functions : LI - Long-Time and Instantaneous
- Terminal Connection : Box Lug
- Frame Size : 150A/HG
- Temp Rating : -13–158 °F (-25–70 °C)
- MCM Size : Min. Wire Size 14 AWG Max. Wire Size 3/0 AWG
- Breaker Type : Micrologic Standard W LI Functionality
- Protection : Solid State
- Phase Connection : ABC
Product Data
- UPC : 785901308171
- GTIN : 00785901308171
- Country of Origin : United States
- Dimensions : 6.4 in (163 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
- Weight : 4.08
- Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
- Certification : UL, CSA, NOM
- Wire Size : AWG 14...AWG 3/0 aluminium/copper terminal
