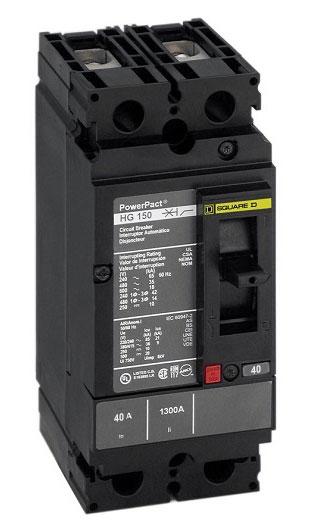

HGL26040 - Square D 40 Amp 2 Pole 600V Thermal Magnetic Circuit Breaker H Frame

HGL26040

HGL26040 is a 40 Amp, 2 Pole, 600 Volt thermal magnetic circuit breaker from Square D's PowerPact H Frame series designed for reliable overload and short circuit protection.This molded case circuit breaker features a thermal magnetic trip unit, an 18kA interrupt rating at 600VAC, and an 80% continuous current rating. It is unit mount type and UL 489 listed, suitable for industrial and commercial electrical distribution applications.

• Amperage: 40 Amp
• Voltage Rating: 600 VAC
• Poles: 2
• Frame Type: H Frame
• Interrupt Rating: 18kA at 600VAC
• Trip Unit: Thermal Magnetic
• Mounting Type: Unit Mount
• Continuous Current Rating: 80%
• Standards: UL 489 Listed
• Suitable for reverse fed applications

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HGL26040
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : HGL
• Voltage : 600
• Amperage : 40
• Phase : 1
• Poles : 2
• AIC rating : 35kA@480V
• Connection : Bolt-On
• Functions : Long Time and Instantaneous
• Terminal Connection : Line/Load Lug
• Frame Size : 150A/HG
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 14 AWG Max. Wire Size 3 AWG
• Breaker Type : Standard
• Protection : Thermal Magnetic
• Phase Connection : Not Applicable

Product Data

• UPC : 785901433811
• GTIN : 00785901433811
• Country of Origin : Mexico
• Dimensions : 6.4 in (163 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
• Weight : 3.001
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 14...AWG 3/0 aluminium/copper terminal
