Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
HGB2B100B

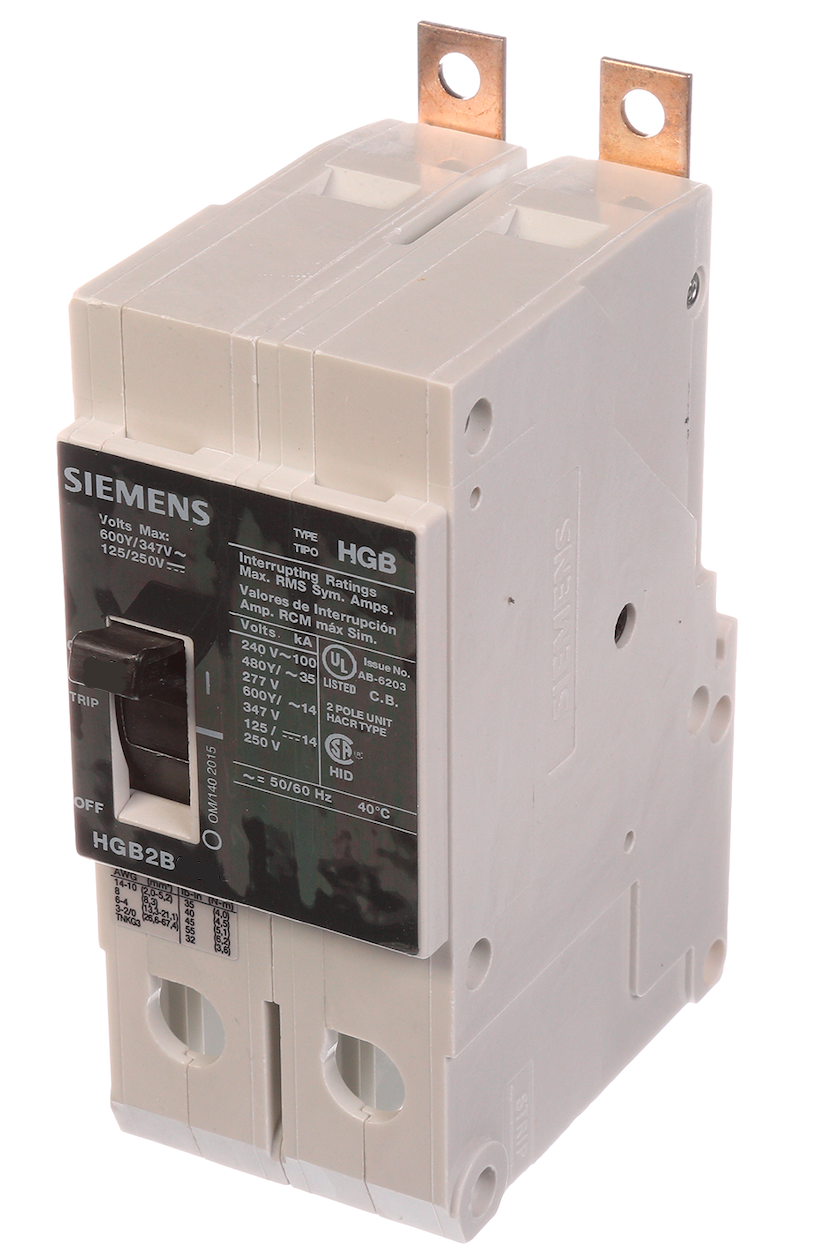

HGB2B100B is a Siemens 2 pole molded case circuit breaker rated for 100 amps and 600 volts with bolt-on mounting.This Siemens HGB2B100B circuit breaker features a 100 ampere current rating, 600 volt maximum voltage rating, and 2 poles for single-phase applications. It has a bolt-on connection type and is UL489 certified. The breaker offers a high interrupting rating of 100kA at 240V and 35kA at 480V, suitable for panelboard mounting and reverse feed applications.
- Manufacturer: Siemens
- Part Number: HGB2B100B
- Amperage: 100A
- Voltage: 600V
- Poles: 2
- Mounting Type: Bolt-On
- Interrupt Rating: 100kA @ 240V, 35kA @ 480V
- Certification: UL489
- Series/Frame: HGB
- Phase: Single-phase
Specifications
- Part Number: HGB2B100B
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : VL Series
- Type : HGB
- Voltage : 600
- Amperage : 100
- Phase : 1
- Poles : 2
- AIC rating : 100kA@240V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous
- Temp Rating : -13¡F - 158¡F (-25¡C - 70¡C)
- Protection : Thermal Magnetic
Product Data
- UPC : 887621219734
- GTIN : 00887621219734
- Country of Origin : Mexico
- Dimensions : 1.969 x 2.87 x 4.1000
- Weight : 1.852
- Certification : UL, CSA, IEC, NOM
- Wire Size : 8 - 1/0 AWS (CU/AL)
