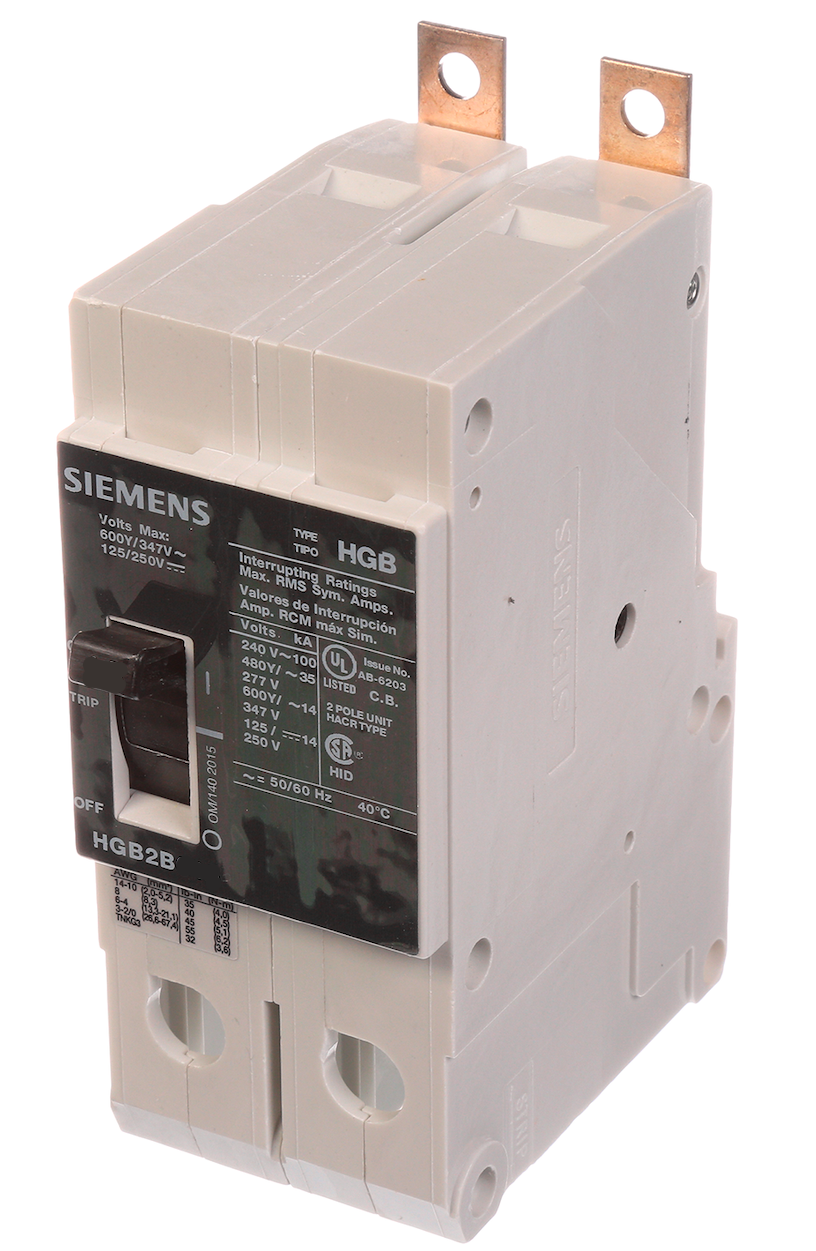

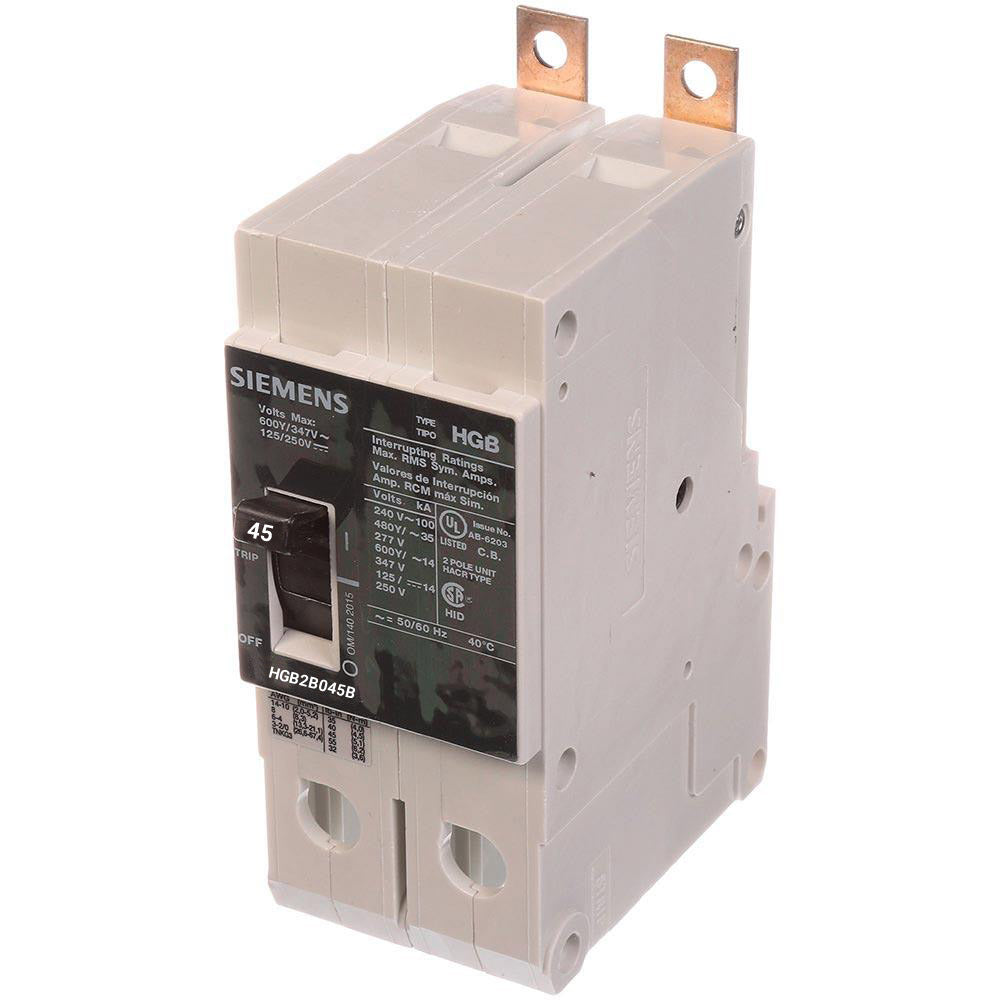

HGB2B045B - Siemens 45A 2 Pole 600V Bolt-On Circuit Breaker VL Series

HGB2B045B

HGB2B045B is a Siemens 2-pole bolt-on circuit breaker rated for 45 amperes at 480 volts AC with a maximum voltage rating of 600 volts AC.

This molded case circuit breaker features a thermal-magnetic trip unit and is designed for panelboard mounting in the HGB frame series. It delivers high interrupting capacity suitable for reverse feed applications and is UL listed per UL489. The breaker accommodates load side lugs with wire sizes from #8 to 1/0 AWG copper or #8 to 2/0 AWG aluminum.

• Amperage: 45A
• Voltage: 480V AC (600V AC maximum)
• Poles: 2
• Frame Type: HGB
• Mounting: Bolt-On
• Trip Unit: Thermal-Magnetic
• Interrupt Rating: 35kA at 480Y/277V
• Interrupt Rating: 100kA at 240V AC
• Certification: UL489
• Connection: Load Side Lugs
• Wire Compatibility: #8 to 1/0 AWG Copper, #8 to 2/0 AWG Aluminum

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

This item does not included Lugs. If you would like lugs please reach out to a sales rep with wiring specs and we can help you with the lugs part number.

Specifications

• Part Number: HGB2B045B
• Manufacturer : Siemens
• Brand : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : VL Series
• Type : HGB
• Voltage : 600
• Amperage : 45
• Phase : 1
• Poles : 2
• AIC rating : 100kA@240V
• Connection : Bolt-On
• Functions : LI - Long Time and Instantaneous
• Temp Rating : -13¡F - 158¡F (-25¡C - 70¡C)
• Protection : Thermal Magnetic

Product Data

• UPC : 887621219673
• GTIN : 00887621219673
• Country of Origin : Mexico
• Dimensions : 1.969 x 2.87 x 4.994
• Weight : 1.852
• Certification : UL, CSA, IEC, NOM
• Wire Size : 8 to 1/0 AWS CU/AL
