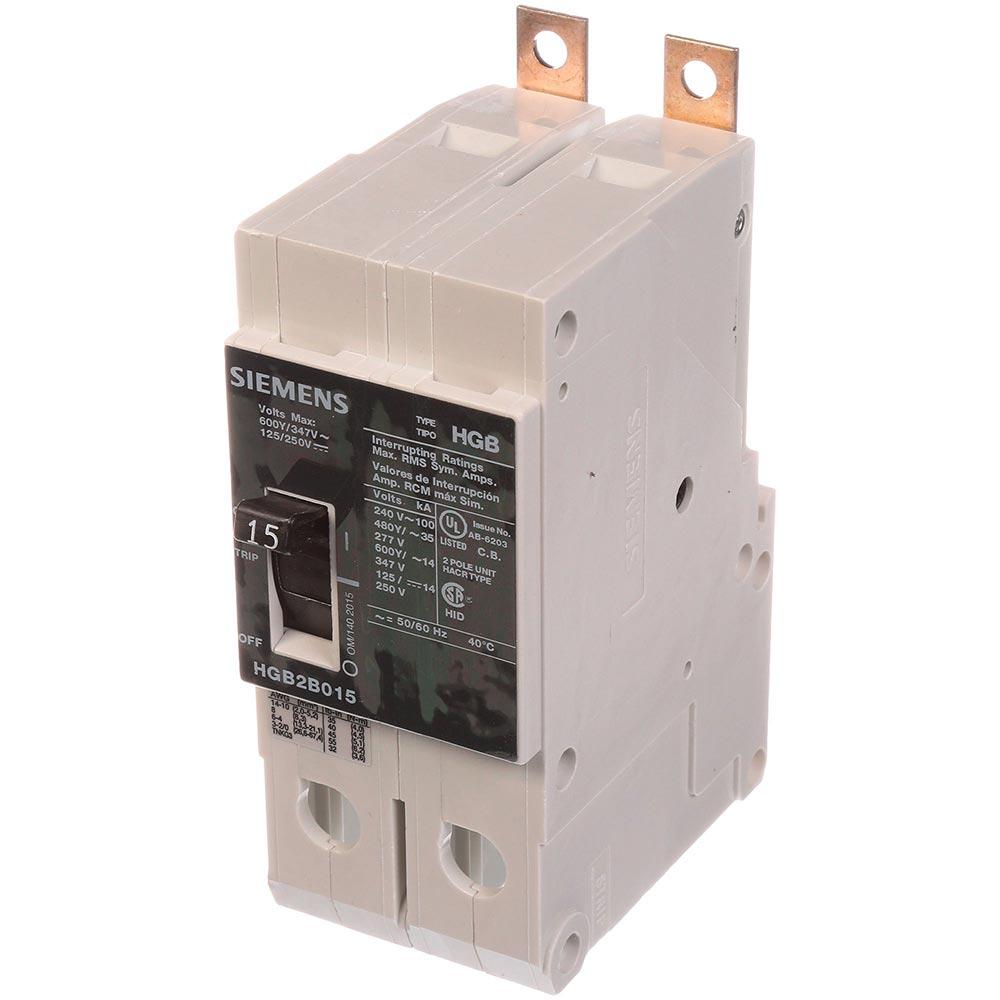

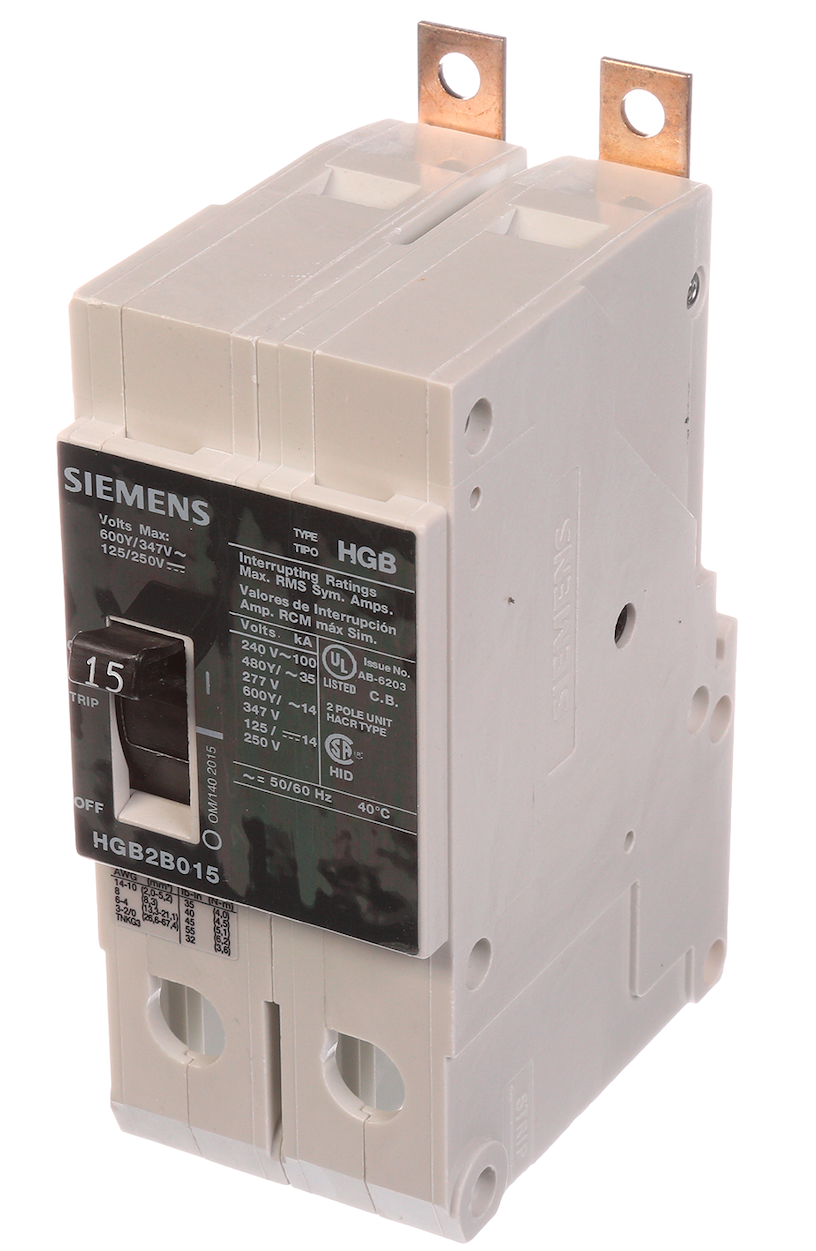

HGB2B015B - Siemens 15A 2-Pole 600V Molded Case Circuit Breaker, HGB Series, Bolt-On Mount, 100kA Interrupt, UL489 Certified

HGB2B015B

HGB2B015B - Siemens 2-pole molded case circuit breaker rated at 15A, 480V AC with bolt-on mounting.The Siemens HGB2B015B is a high interrupting capacity circuit breaker from the HGB/LGB series, featuring thermal-magnetic trip protection. It supports reverse feed applications with load side lugs accepting #14-6 AWG copper or #12-6 AWG aluminum wire. Designed for panelboard mounting in industrial and commercial settings.Key Specifications

• Amperage: 15A
• Voltage: 480V AC
• Poles: 2
• Frame/Series: HGB/LGB
• Mounting Type: Bolt-On
• Interrupt Rating: 35kA @ 480V; 100kA @ 240V
• Max Voltage: 600V
• Certifications: UL489
• Wire Range: #14-6 AWG Cu; #12-6 AWG Al

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HGB2B015B
• Manufacturer : Siemens
• Brand : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : VL Series
• Type : HGB
• Voltage : 600
• Amperage : 15
• Phase : 1
• Poles : 2
• AIC rating : 100kA@240V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous
• Temp Rating : -13¡F - 158¡F (-25¡C - 70¡C)
• Protection : Thermal Magnetic

Product Data

• UPC : 887621219611
• GTIN : 00887621219611
• Country of Origin : Mexico
• Dimensions : 1.969 x 2.87 x 4.988
• Weight : 1.852
• Certification : UL, CSA, IEC, NOM
• Wire Size : 14 - 10 AWS (CU/AL)
