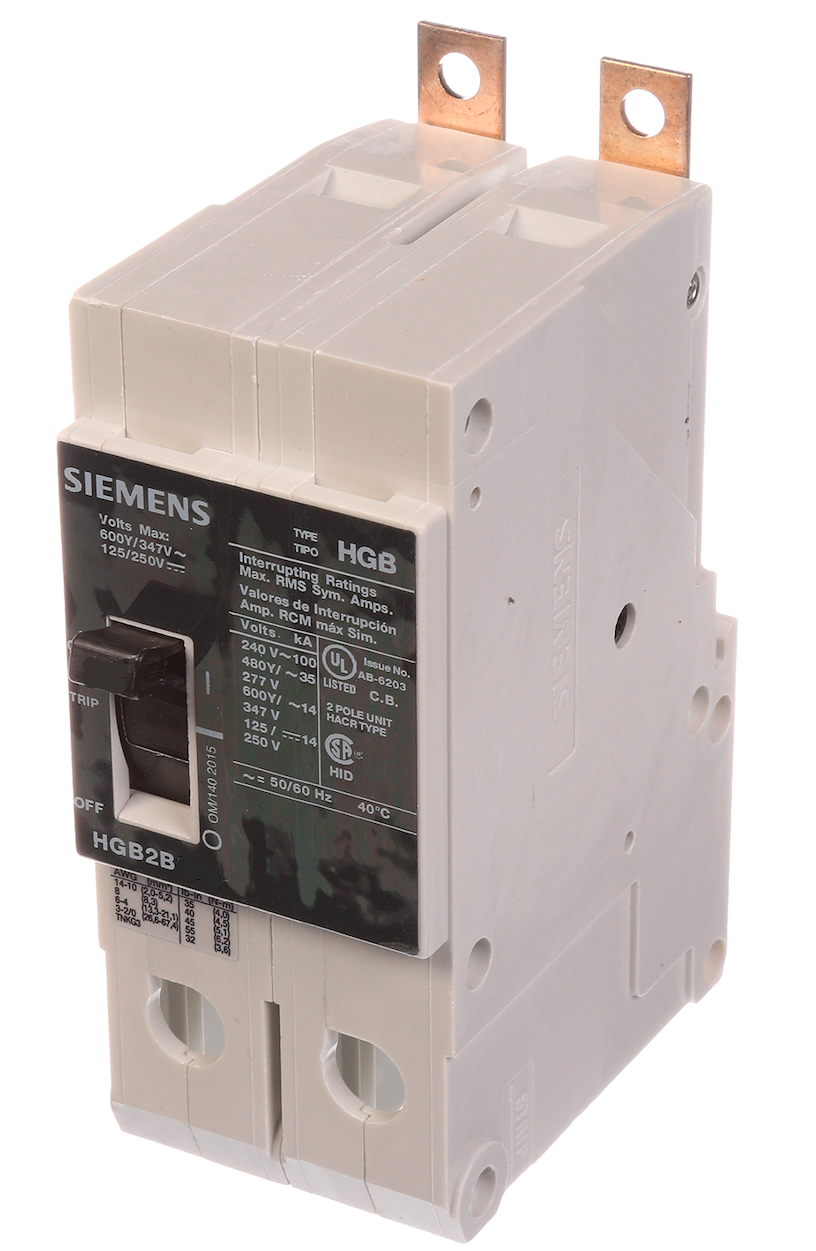

HGB2B090B - Siemens 90 Amp 480V/600V 2 Pole HGB Series Bolt-On Molded Case Circuit Breaker, 100kA Interrupt Rating, Long-Time Trip Unit

HGB2B090B

HGB2B090B is a Siemens molded case circuit breaker designed for residential, commercial, and industrial applications with thermal magnetic protection and bolt-on mounting.

This 2-pole breaker features a 90 amp current rating at 600 volts AC with an interrupt rating of 100kA at 240V. The HGB series uses long-time and instantaneous (LI) trip functions for reliable overcurrent protection. Wire range accommodates #8 to 1/0 AWG copper or #8 to 2/0 AWG aluminum conductors, making it suitable for reverse feed applications with load-side lugs.

• Manufacturer: Siemens
• Part Number: HGB2B090B
• Amperage Rating: 90 A
• Voltage Rating: 600 V AC
• Number of Poles: 2
• Frame Type: HGB
• Trip Unit Type: Thermal Magnetic
• Interrupt Rating: 100kA@240V
• Connection Type: Bolt-On
• Mounting: Panelboard
• Functions: LI - Long-Time and Instantaneous
• Wire Range: #8 to 1/0 AWG (CU/AL)
• Certifications: UL, CSA

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HGB2B090B
• Manufacturer : Siemens
• Brand : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : VL Series
• Type : HGB
• Voltage : 600
• Amperage : 90
• Phase : 1
• Poles : 2
• AIC rating : 100kA@240V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous
• Temp Rating : -13¡F - 158¡F (-25¡C - 70¡C)
• Protection : Thermal Magnetic

Product Data

• UPC : 887621219727
• GTIN : 00887621219727
• Country of Origin : Mexico
• Dimensions : 1.969 x 2.87 x 4.999
• Weight : 1.852
• Certification : UL, CSA, IEC, NOM
• Wire Size : 8 - 1/0 AWS (CU/AL)
