HGA36100UR - Square D PowerPact H 100A 3-Pole 600VAC Molded Case Circuit Breaker

HGA36100UR

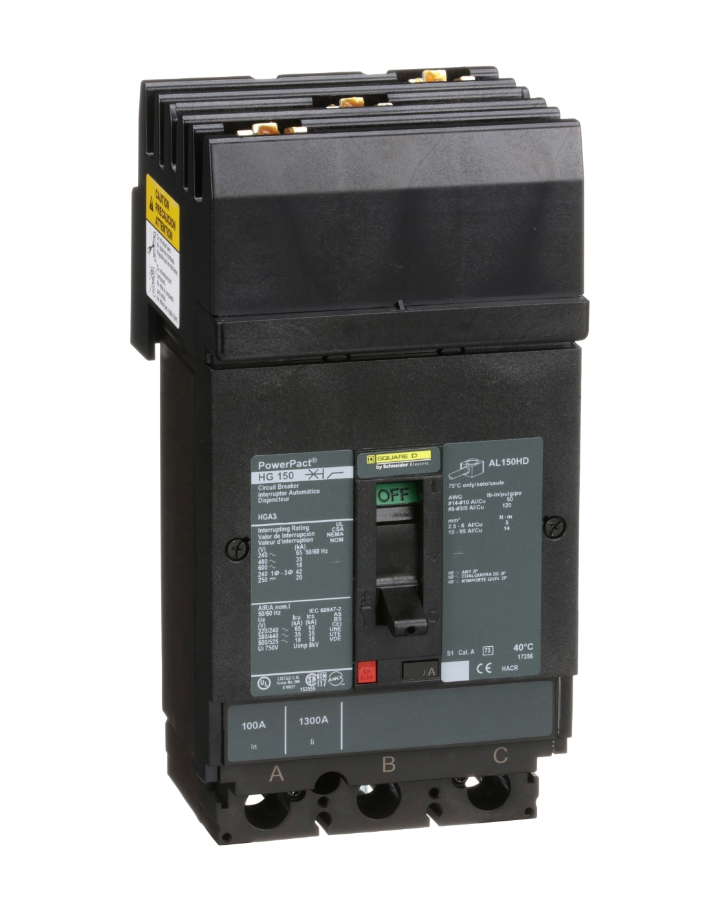

HGA36100UR is a Square D PowerPact H series molded case circuit breaker designed for industrial power distribution applications. This 100 ampere, 3-pole unit operates at 600VAC and features thermal-magnetic trip protection with an 80% continuous current rating. The breaker is suitable for Class 612 I-Line panelboards and switchboards with reverse-fed capability.The HGA36100UR delivers a breaking capacity of 35kA at 480VAC and 18kA at 600VAC, making it ideal for demanding electrical systems. It features an adjustable magnetic trip range of 900A to 1700A hold current and employs long-time and instantaneous (LI) trip functions. The unit mounts via I-Line style plug-in connection and accepts 14 AWG to 3/0 AWG copper or aluminum conductors. Operating temperature range spans -13 to 158 degrees Fahrenheit with 50/60 Hz frequency compatibility.

• Amperage Rating: 100A
• Voltage Rating: 600VAC / 250VDC
• Number of Poles: 3
• Frame Type: H-Frame
• Interrupt Rating: 35kA at 480VAC, 18kA at 600VAC, 20kA at 250VDC
• Trip Unit: Thermal-Magnetic with LI functions
• Mounting: I-Line Plug-In
• Continuous Rating: 80%
• Magnetic Trip Range: 900A to 1700A
• Wire Size: 14 AWG to 3/0 AWG
• Certifications: UL 489, CSA, NEMA, VDE, BS, CCC, IEC 60947-2, CE marked
• Dimensions: 9.73 in H x 4.48 in W x 4.8 in D

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HGA36100UR
• Manufacturer : Square D
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : HGA
• Voltage : 600
• Amperage : 100
• Phase : 3
• Poles : 3
• AIC rating : 35kA@480V
• Connection : I-Line Style Plug-In
• Functions : LI - Long-Time and Instantaneous
• Protection : Thermal Magnetic

Product Data

• Weight : 6
