HGA260501 - Square D 50 Amp 600 Volt 2 Pole Thermal Magnetic Circuit Breaker I-Line Plug-In

Save $664.29
SKU: HGA260501-New
Condition: New
Price:
$673.71 $1,338.00
Stock:
1 in stock
Limited availability — we'll confirm stock immediately after your order.

Same-Day Shipping

Most items ship same-day if ordered by 12:30 PM PST.

2 Year Warranty Guaranteed

All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.

Product Questions? Contact Us

Product Info

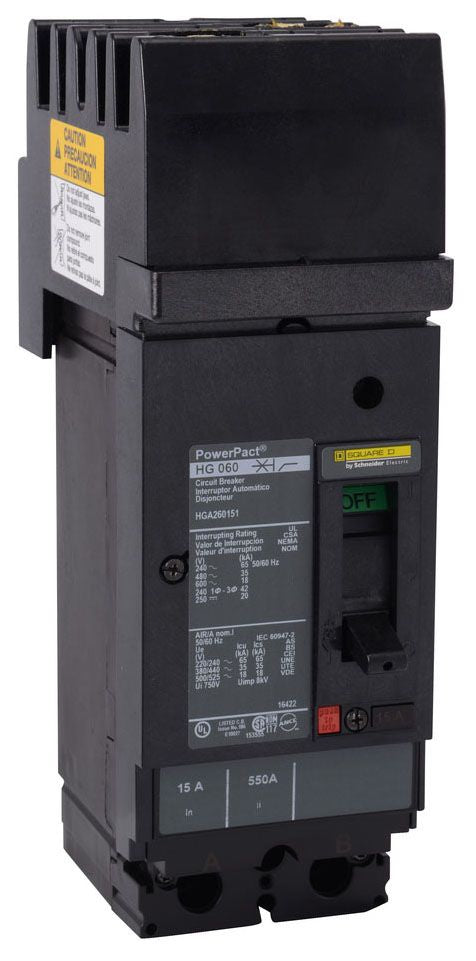

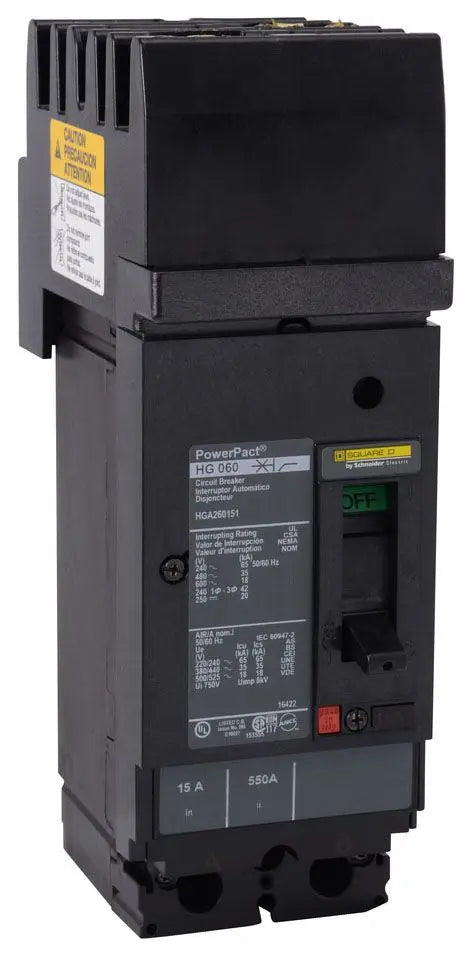

HGA260501 - Square D I-Line Style Plug-In 50 Amp 2 Pole Circuit Breaker - Essential Electric Supply
Square D HGA260501 Circuit Breaker | Powerpact HGA 600V 50A - Essential Electric Supply
Roll over image to zoom in Click on image to zoom Images are for reference only
HGA260501 - Square D I-Line Style Plug-In 50 Amp 2 Pole Circuit Breaker - Essential Electric Supply
Square D HGA260501 Circuit Breaker | Powerpact HGA 600V 50A - Essential Electric Supply

Description

HGA260501


HGA260501 is a Square D 2 Pole thermal magnetic molded case circuit breaker rated for 50 Amps and 600 Volts AC with I-Line style plug-in mounting.This PowerPact H series breaker features long time and instantaneous trip functions, a 65kA interrupting rating at 240VAC, and is suitable for use in I-Line panelboards. It supports wire sizes from 14 to 3/0 AWG aluminum or copper and is UL, CSA, CE, IEC, NOM, NEMA, and RoHS certified.
  • Amperage: 50 Amps
  • Voltage: 600 VAC, 250/500/600 VDC
  • Poles: 2
  • Mounting Type: I-Line Style Plug-In
  • Interrupting Rating: 65kA at 240VAC
  • Series/Frame: PowerPact H / HGA Frame
  • Trip Unit: Thermal Magnetic with Long Time and Instantaneous Trip
  • Terminal Connection: Line and Load Lug
  • Wire Gauge: 14 AWG to 3/0 AWG Aluminum/Copper
  • Certifications: UL, CSA, CE, IEC, NOM, NEMA, RoHS
  • Color: Black
  • Phase: Single Phase
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

  • Part Number: HGA260501
  • Manufacturer : Schneider Electric
  • Brand : Square D
  • Category : Circuit Breaker
  • Item Subcategory : Molded Case
  • Family : Powerpact
  • Type : HGA
  • Voltage : 600
  • Amperage : 50
  • Phase : 1
  • Poles : 2
  • AIC rating : 35kA@480V
  • Connection : Plug In Panelboard
  • Functions : Long Time and Instantaneous Trip
  • Terminal Connection : Lug
  • Frame Size : 150A/HG
  • Temp Rating : -13–158 °F (-25–70 °C)
  • MCM Size : Min. Wire Size 14 AWG Max. Wire Size 3 AWG
  • Breaker Type : Standard
  • Protection : Thermal Magnetic
  • Phase Connection : AB

Product Data

  • UPC : 785901651512
  • GTIN : 00785901651512
  • Country of Origin : Mexico
  • Dimensions : 6.4 in (163 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
  • Weight : 3.001
  • Panel Type : I Line Panelboards
  • Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
  • Certification : UL, CSA, NOM
  • Wire Size : AWG 14...AWG 3/0 aluminium/copper terminal

Accesories

Part Manufacture Sub Category
S29451
S29450
S29391
S29410
S29411
