HFD63F250 - Siemens 250A 3-Pole 600VAC/500VDC Molded Case Circuit Breaker, 25kAIC @ 600V, 65kAIC @ 480V, Sentron Series, Thermal Magnetic Trip, Bolt-On, Frame Only, UL 489/IEC 60947-2

HFD63F250

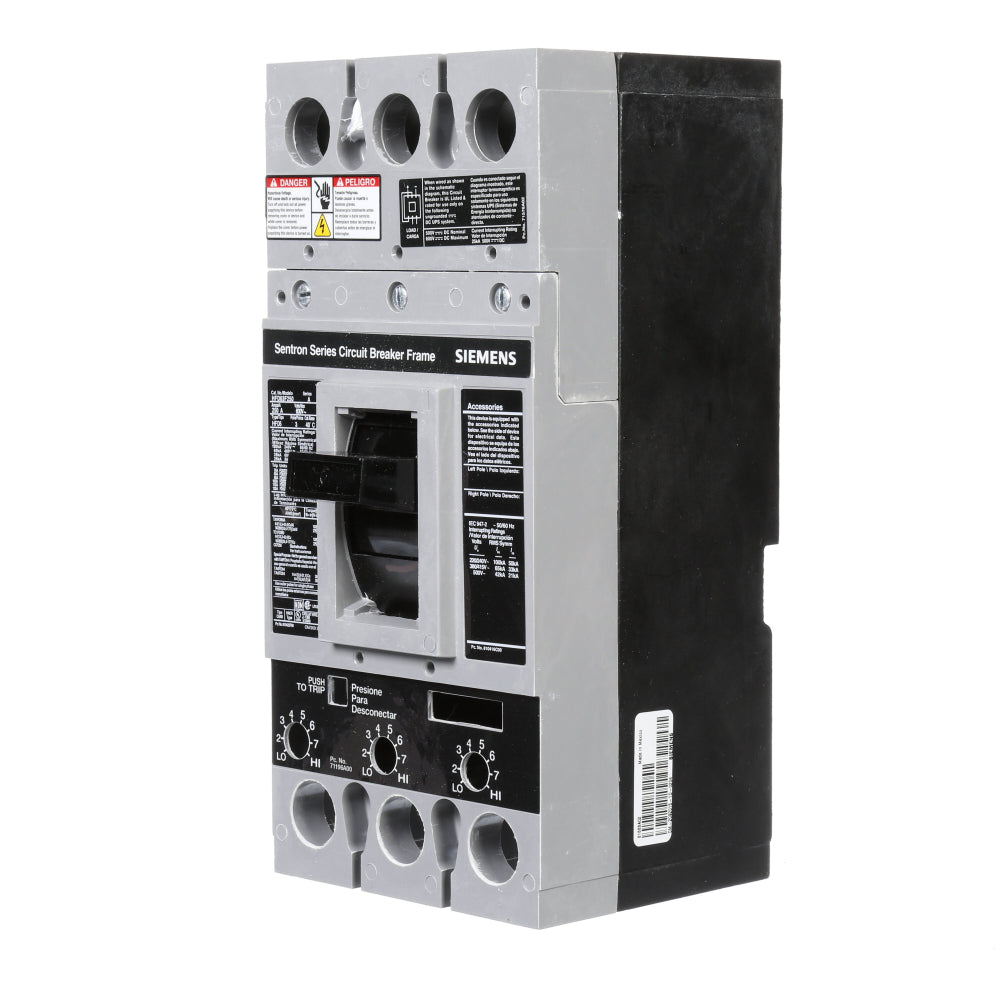

HFD63F250 is a 3-pole molded case circuit breaker frame from Siemens designed for use in individual enclosures, switchboards, and panelboards.

This thermal magnetic circuit breaker operates at 600 VAC (50/60 Hz) or 500 VDC with an adjustable amperage range of 70 to 250 amperes. The frame features line and load side lugs for flexible terminal connections and meets UL 489 and IEC 60947-2 standards. It is suitable for use with FD, HFD6, and HFXD6 frame thermal magnetic and interchangeable trip molded case circuit breakers.

• Amperage Rating: 70 to 250 A
• Voltage: 600 VAC / 500 VDC
• Number of Poles: 3
• Interrupting Rating: 25 kA at 600V, 65 kA at 480V, 100 kA at 240V
• Frame Type: FD Frame
• Trip Unit: Thermal Magnetic / Interchangeable
• Terminal Type: Line/Load Lug
• Operating Temperature: 40 degrees C
• Frequency: 50/60 Hz
• Dimensions: 6.9 in L x 5.5 in W x 11.1 in H
• Standards: UL 489, IEC 60947-2
• Country of Origin: Mexico

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

Frame only, Trip unit and lugs not included.

Specifications

• Part Number: HFD63F250
• Manufacturer : Siemens
• Brand : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Sentron Series
• Type : HFD
• Voltage : 600 AC
• Amperage : 250
• Phase : 3
• Poles : 3
• AIC rating : 65kA@480V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous
• Frame Size : FD Frame
• Protection : Thermal Magnetic

Product Data

• UPC : 783643211889
• GTIN : 00783643211889
• Country of Origin : Mexico
• Weight : 7.5 lb
• Certification : UL, IEC
