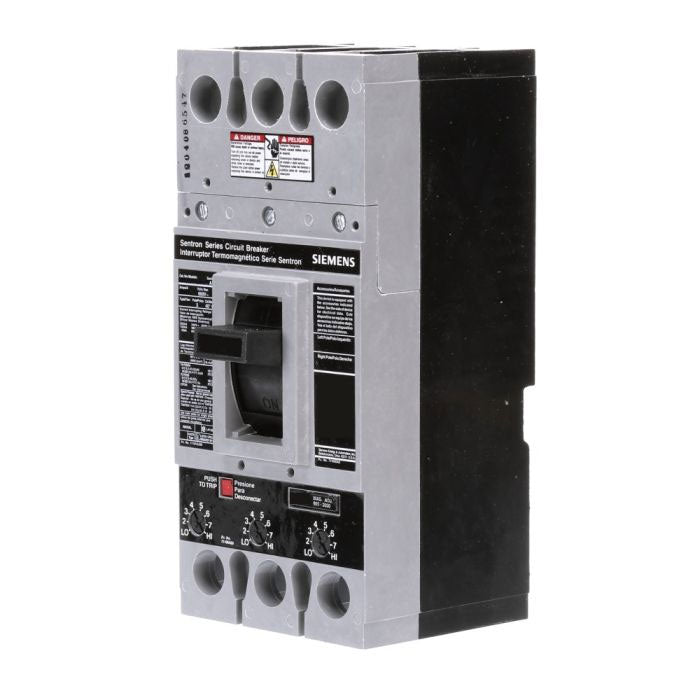

HFD63B175L - Siemens 175A 600V 3 Pole Molded Case Circuit Breaker Feed-Thru Thermal Magnetic Trip

HFD63B175L

HFD63B175L is a Siemens 3 pole, 175 amp, 600V molded case circuit breaker with feed-thru design and thermal magnetic trip unit. This Siemens Sentron series breaker is designed for reliable protection in commercial and industrial power distribution systems. It features a feed-thru lug configuration for easy installation and offers a robust interrupting rating suitable for demanding applications.

• Part Number: HFD63B175L
• Manufacturer: Siemens
• Series: Sentron
• Frame: JD
• Amperage: 175A
• Voltage: 600V AC
• Poles: 3
• Mounting Type: Feed-Thru
• Interrupt Rating: 65kA @ 480V
• Tripping Method: Thermal Magnetic
• Standards: UL 489 Listed
• Operating Temperature: 40¡C

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

Line and load side lugs included (TA1FD350A)

Specifications

• Part Number: HFD63B175L
• Manufacturer : Siemens
• Brand : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Sentron Series
• Type : HFD
• Voltage : 600 AC
• Amperage : 175
• Phase : 3
• Poles : 3
• AIC rating : 65kA@480V
• Connection : Feed-Thru
• Functions : LI - Long-Time and Instantaneous
• Frame Size : FD Frame
• Temp Rating : 104 ¡F (40 ¡C)
• Protection : Thermal Magnetic

Product Data

• UPC : 783643235908
• GTIN : 00783643235908
• Country of Origin : Mexico
• Dimensions : 5.906 x 9.843 x 6.693 (W x H x D) Inches
• Weight : 10.031
• Panel Type : S4, P4, SPP, F1,FC1, FCII, CDP-5, CDP-6, SB1-3, S5, P5, SPP/FPP, F2
• Certification : Ul Listed
• Wire Size : 6AWG - 350KCM (CU) / 4AWG - 350KCM (AL
