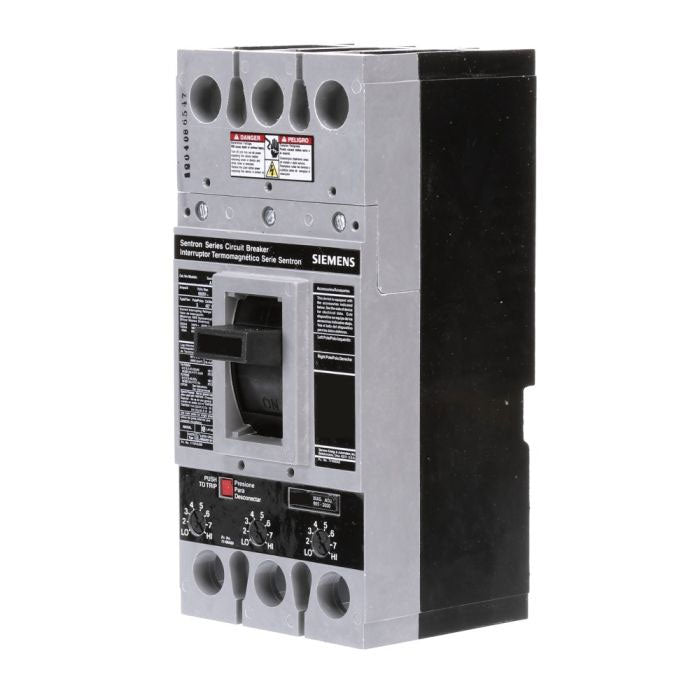

HFD63B125L - Siemens 125A 3-Pole 600V Molded Case Circuit Breaker Thermal Magnetic Trip

HFD63B125L

HFD63B125L is a Siemens Sentron series 3-pole molded case circuit breaker rated for 125A and 600V AC, designed for reliable protection in industrial and commercial power distribution systems.This molded case circuit breaker features a thermal magnetic trip unit for precise overload and short-circuit protection. It is built with a feed-thru connection method and is suitable for applications requiring high interrupting capacity. The breaker is part of the Siemens Sentron HFD series, known for durability and performance in demanding environments.

• Part Number: HFD63B125L
• Manufacturer: Siemens
• Series: Sentron HFD
• Amperage: 125A
• Voltage Rating: 600V AC
• Poles: 3
• Interrupt Rating: 65kA @ 480V AC
• Interrupt Rating: 100kA @ 240V AC
• Mounting Type: Feed-Thru
• Connection Method: Lug (Included)
• Tripping Method: Thermal Magnetic

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

Line and load side lugs included (TA1FD350A)

Specifications

• Part Number: HFD63B125L
• Manufacturer : Siemens
• Brand : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Sentron Series
• Type : HFD
• Voltage : 600 AC
• Amperage : 125
• Phase : 3
• Poles : 3
• AIC rating : 65kA@480V
• Connection : Feed-Thru
• Functions : LI - Long-Time and Instantaneous
• Frame Size : FD Frame
• Temp Rating : 104 ¡F (40 ¡C)
• Protection : Thermal Magnetic

Product Data

• UPC : 783643235885
• GTIN : 00783643235885
• Country of Origin : Mexico
• Dimensions : 5.906 x 9.843 x 6.693 (W x H x D) Inches
• Weight : 10.031
• Panel Type : S4, P4, SPP, F1,FC1, FCII, CDP-5, CDP-6, SB1-3, S5, P5, SPP/FPP, F2
• Certification : Ul Listed
• Wire Size : 6AWG - 350KCM (CU) / 4AWG - 350KCM (AL
