Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
HFD63B110L

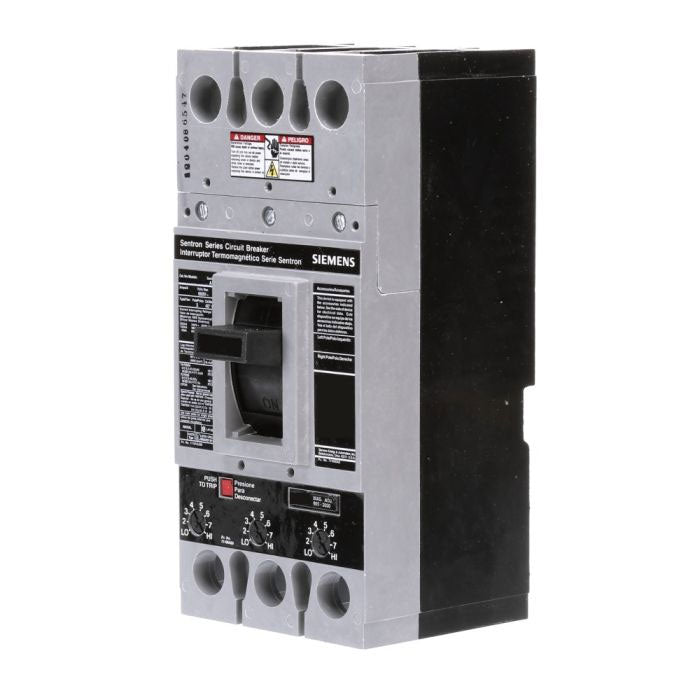

HFD63B110L is a Siemens 3 pole molded case circuit breaker rated for 110 amps and 600 volts AC with a bolt-on mounting type.This Siemens HFD series breaker features thermal magnetic trip functions with long time and instantaneous trip capabilities, a high interrupting capacity of 65kA at 480V, and load side lug terminals.
- Key Specifications
- Amperage: 110A
- Voltage: 600V AC
- Poles: 3
- Mounting Type: Bolt-On
- Interrupt Rating: 65kA at 480V
- Frame Type: HFD
- Trip Unit: Thermal Magnetic with Long Time and Instantaneous Trip
- Connection: Load Side Lug Terminals
- Phase: 3
Additional Information
Line and load side lugs included (TA1FD350A)
Specifications
- Part Number: HFD63B110L
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Sentron Series
- Type : HFD
- Voltage : 600 AC
- Amperage : 110
- Phase : 3
- Poles : 3
- AIC rating : 65kA@480V
- Connection : Feed-Thru
- Functions : LI - Long-Time and Instantaneous
- Frame Size : FD Frame
- Temp Rating : 104 ¡F (40 ¡C)
- Protection : Thermal Magnetic
Product Data
- UPC : 783643235878
- GTIN : 00783643235878
- Country of Origin : Mexico
- Dimensions : 10.63 x 5.906 x 6.693 inch
- Weight : 10.031
- Panel Type : S4, P4, SPP, F1,FC1, FCII, CDP-5, CDP-6, SB1-3, S5, P5, SPP/FPP, F2
- Wire Size : 6AWG - 350KCM (CU) / 4AWG - 350KCM (AL
